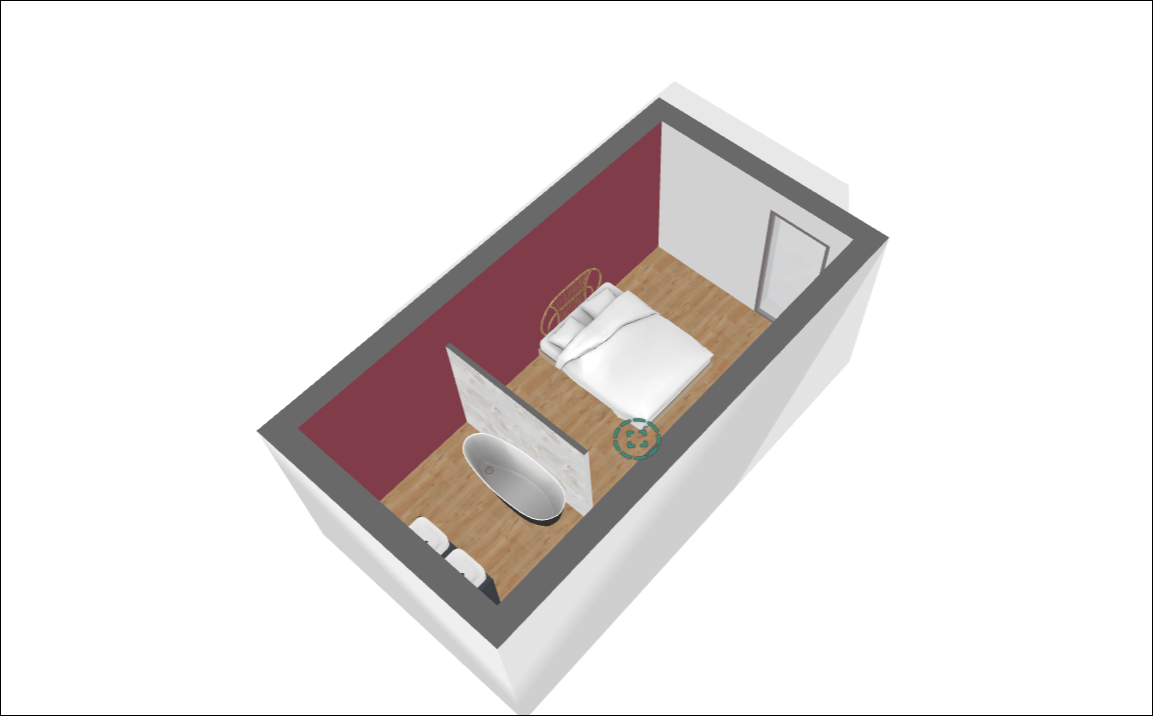

EDIT THE HEIGHT of a wall, or partition

By default, the height of your walls and partitions is that of the floor on which they are modeled.

You can set the height of your walls.

Note:

You can set the height of your floors. By default, it is 250cm.

> More information

Set the HEIGHT of a wall

1/ Place yourself in 2D view: walls and partitions are only modelable in this view.

2/ Select one or more walls or partitions (multiple selection is possible by holding down the alt key)

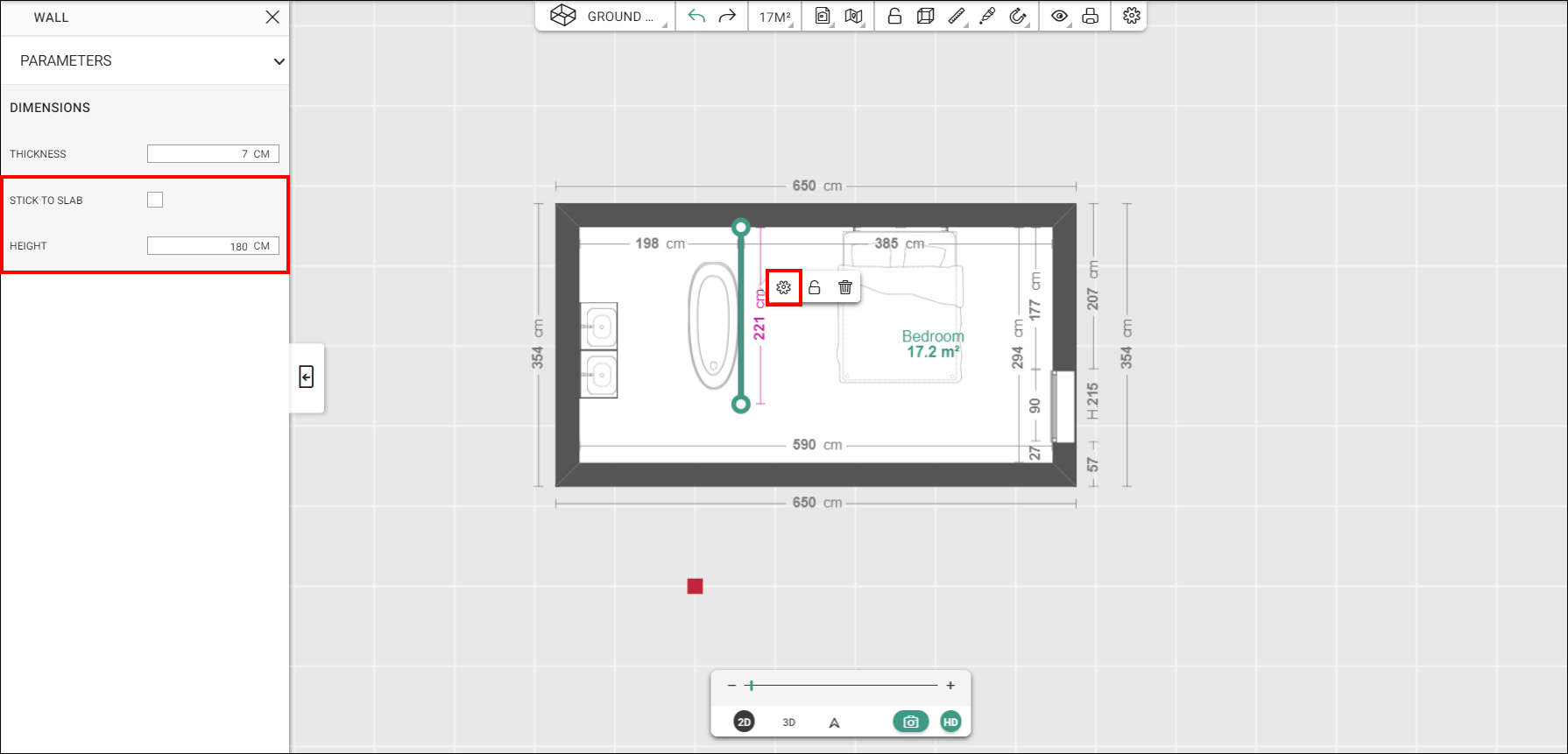

3/ Click on the "properties" icon, you enter the settings of the wall or walls

4/ You can modify its height, after unchecking "up to the ceiling".

Attention:

By setting the height of your wall or partitions, make sure not to exceed the height of the floor, otherwise the walls will appear on the upper level in 3D.

> More information

Special cases: roof and stairs

It is not possible to model walls and partitions with variable heights, to fit under stairs or under a roof.

To model a partition under a staircase: we advise you to use the customizable shapes in the layout menu.

> More information

To model a partition cut by a roof: it is the modeling of your two-slope roof that will add the height of your partition.

> More information
