EDIT THE LENGTH of a wall, partition or invisible separation

It is possible to set the dimensions of a wall: length, height and thickness.

Setting the LENGTH of a wall

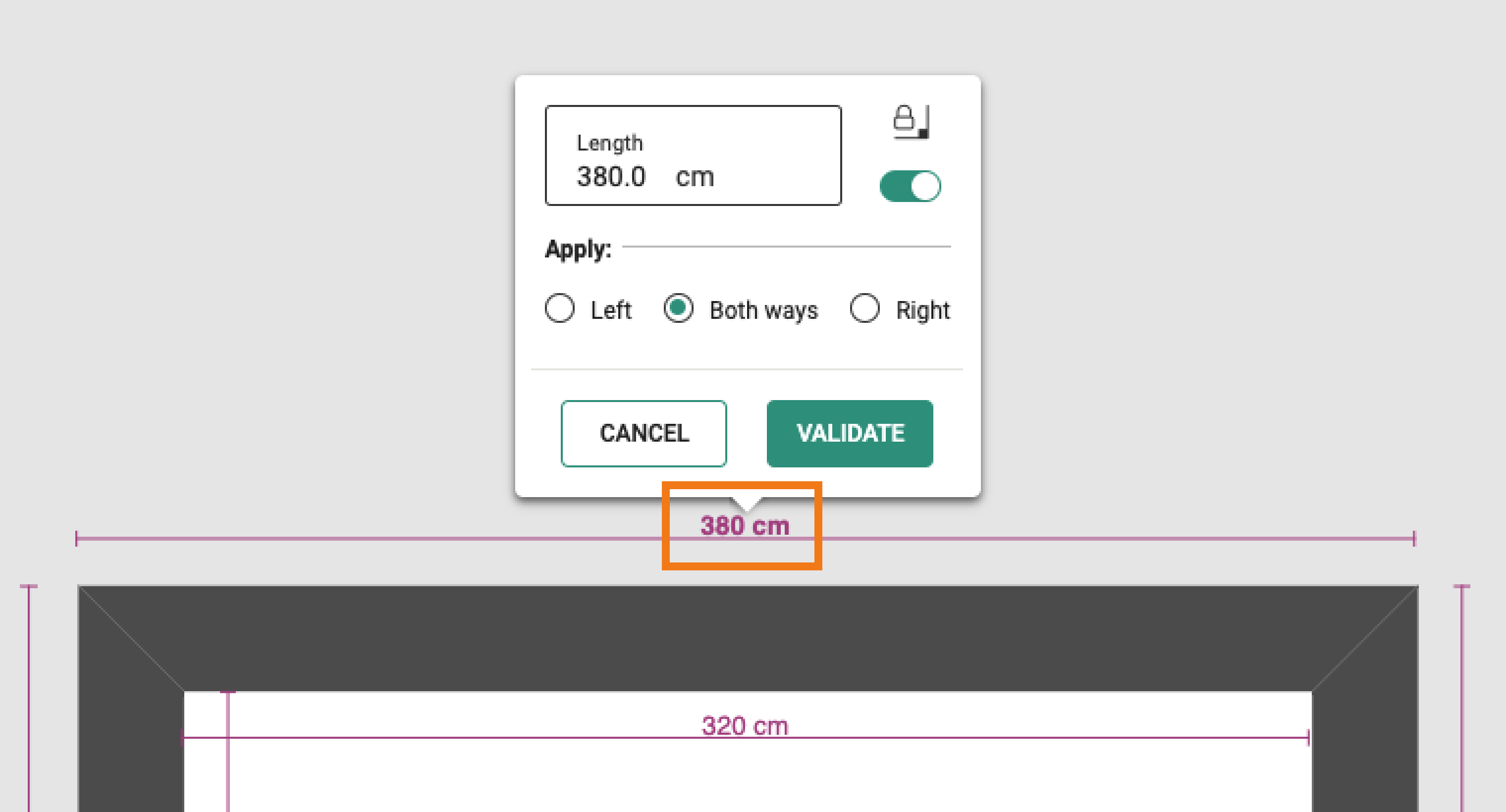

If you click on the dimension, you can change the length of the wall :

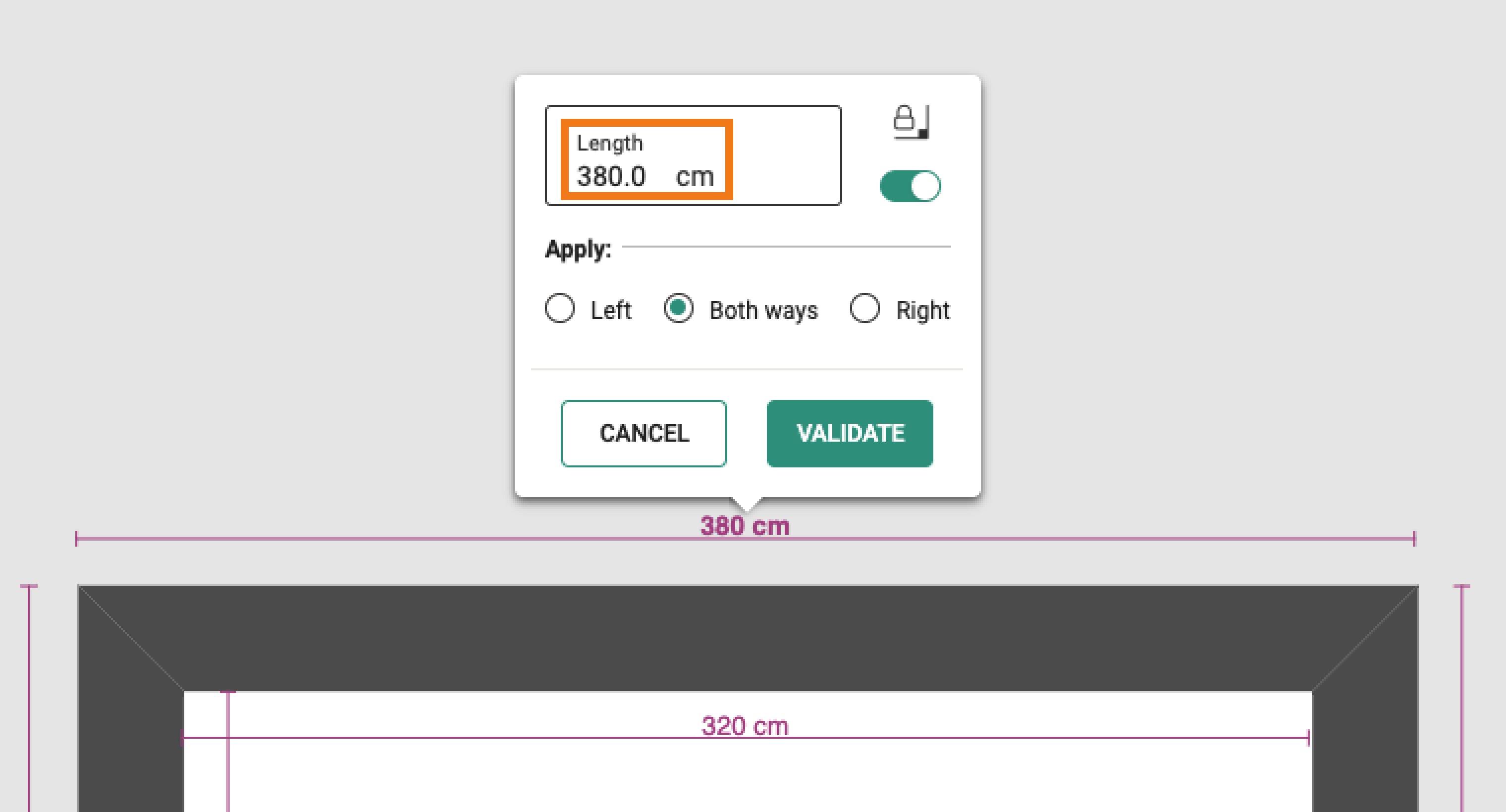

First of all, you need to enter the desired length of the wall :

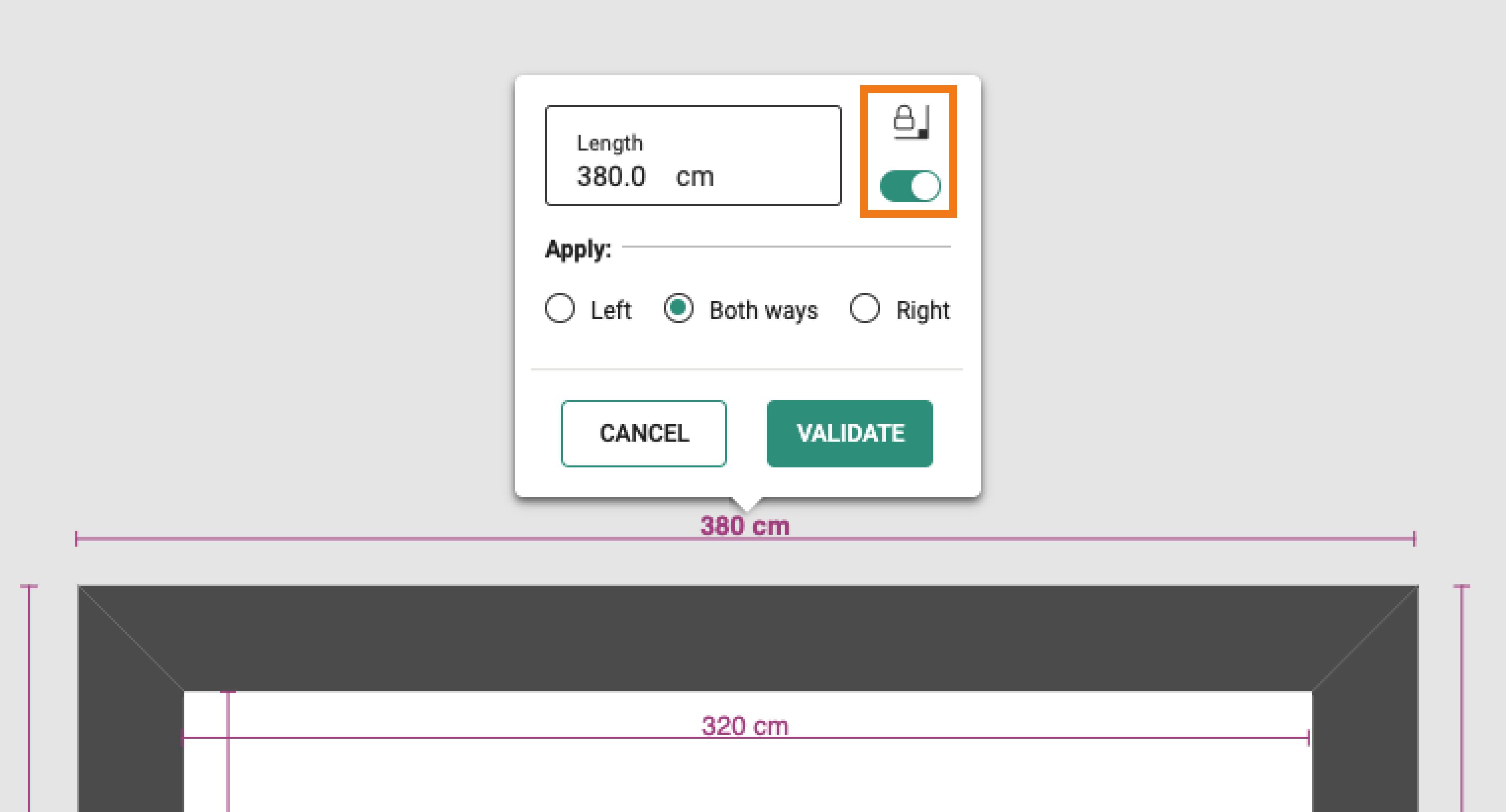

The following icon allows you to keep or not the angle of the adjacent wall(s):

Below, you choose the direction of the changes :

• Apply length change to the left end of the wall (the right side is locked)
• Apply length change to both ways of the wall (centre of wall is locked)
• Apply length change to the right end of the wall (right side is locked)

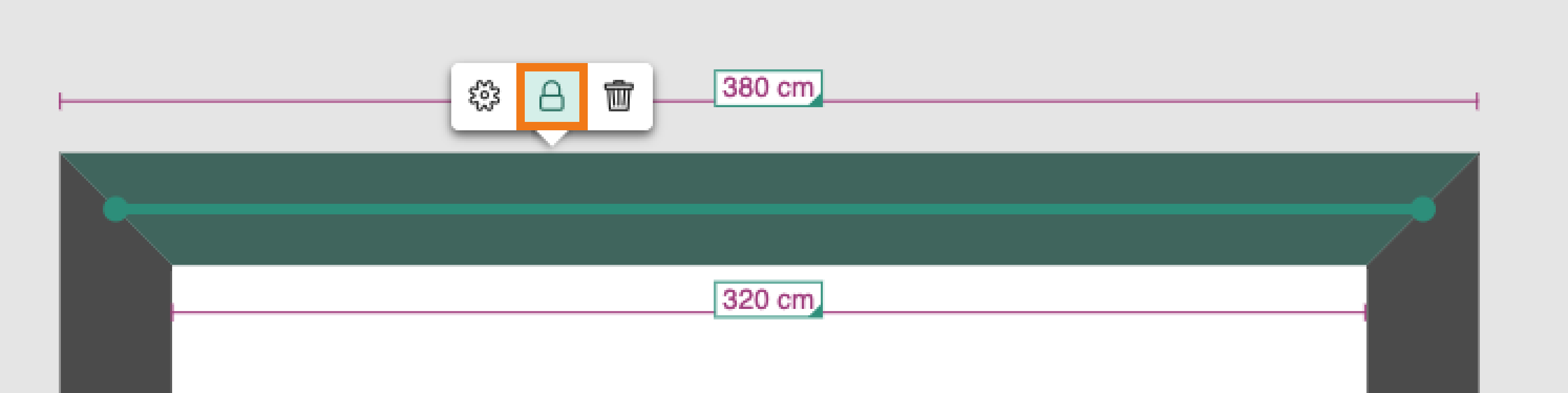

Tip: Locking a wall

This option will help you to keep the size of your wall. Simply click on the wall in question and on the lock to close it:
