ADDING a floor

Do you want to add a floor to your plan in Kazaplan? Follow these steps to create and configure your new floor:

Step 1: Add a Floor

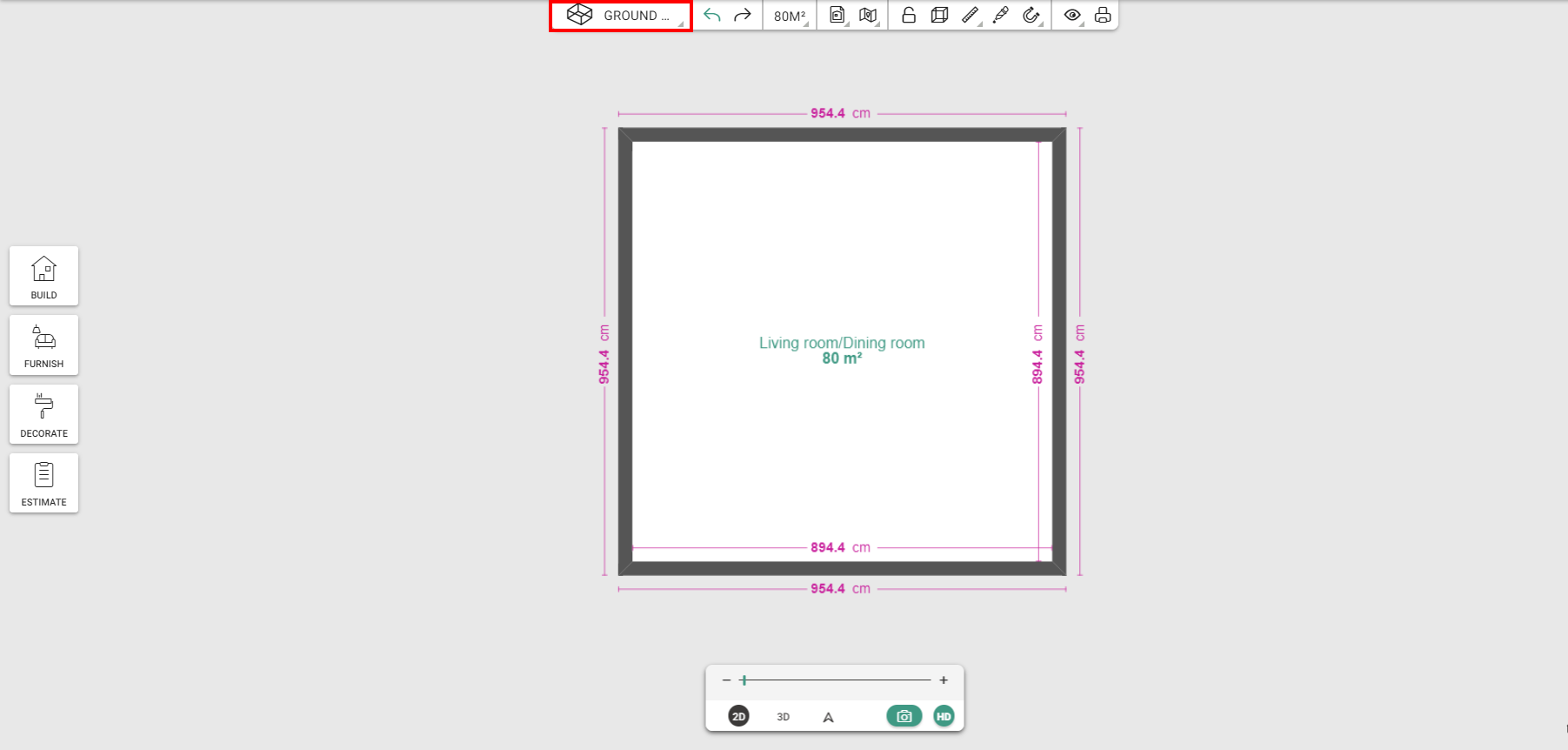

1. When you create your plan, you automatically start on the ground floor by default.

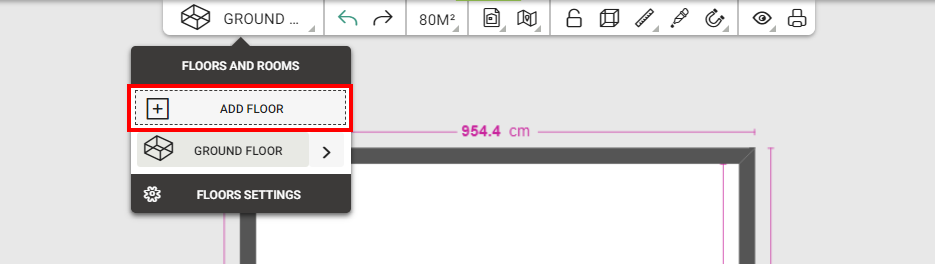

2. To add a floor, click on the "Manage/Add Levels" icon in the Kazaplan toolbar.
3. Then, click on "Add a Floor".

Note:

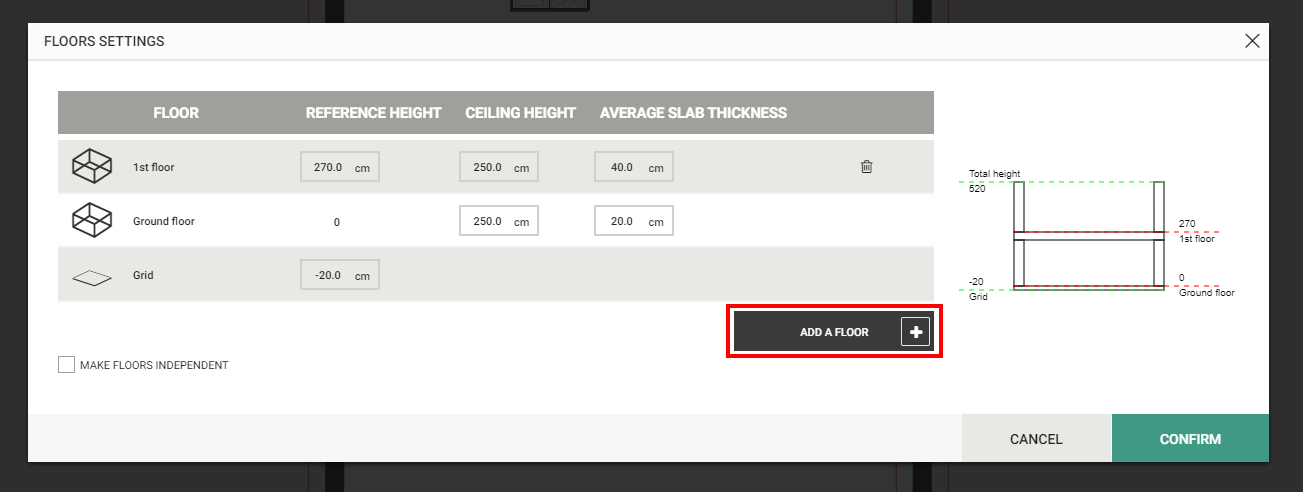

This feature is also accessible from the floor settings window.

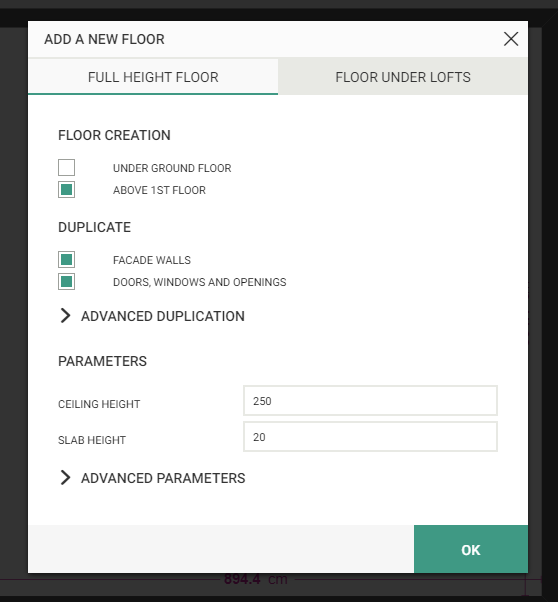

The new level settings window will then be displayed. You can proceed to step 2 to configure the new floor.

Step 2: Configure Your New Floor

You can now configure your new floor according to your needs:

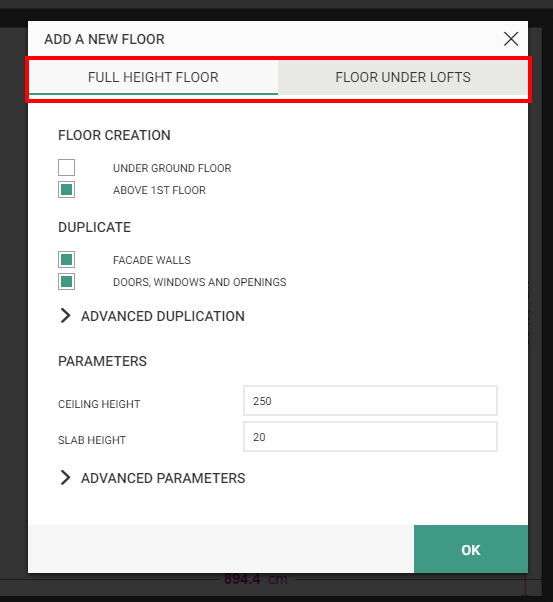

 1. First, you can choose the nature of your future floor:

• A full floor, adding full-height walls (enabled by default)
• Or an attic floor, adding a roof.

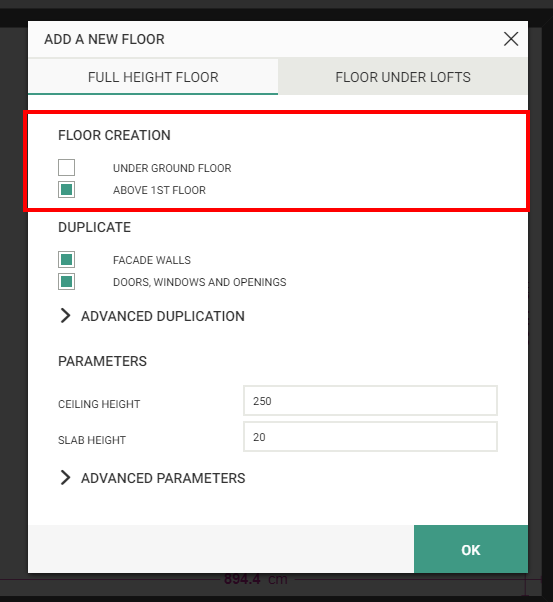

2. In the case of a full floor, you can choose the position of your floor:

• Below the ground floor
• Above your last floor (enabled by default)

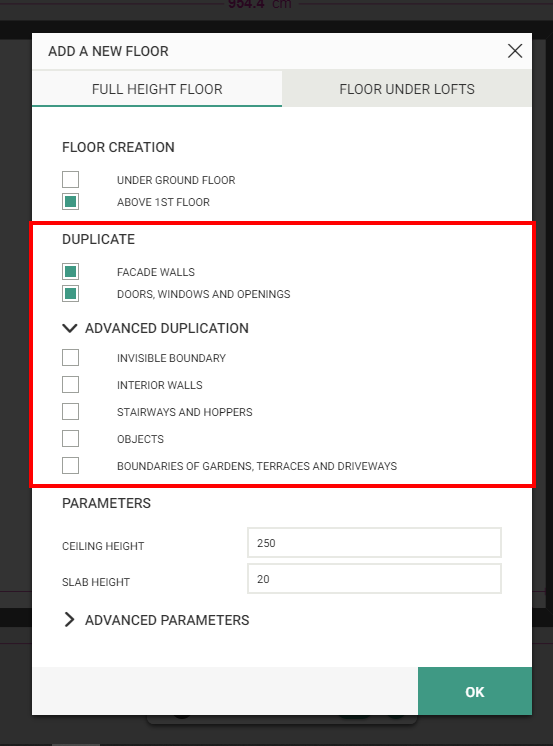

3. When creating your level, you can duplicate elements from the nearest level:

• Facade walls: this duplicates the same shape of the house as the current level.
• Doors, windows, and openings: this duplicates the joinery of the facade walls of the current level.

Thanks to advanced duplication, other elements can be retained:

• Invisible separations.
• Interior walls (and their openings).
• Stairs and hoppers.
• Furniture and objects.
• Garden, terrace, and alley boundaries.

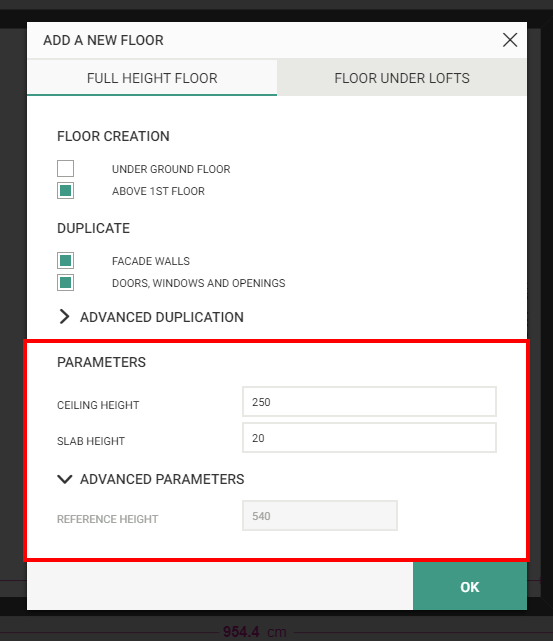

4. Then set the heights of your level:

• Ceiling height.
• Slab height: the thickness of the lower slab of your level.

Thanks to the advanced settings, the reference level of the future floor can be defined.

> more information on Half-levels.

> more information on independent floors".

Step 3: Create the Floor

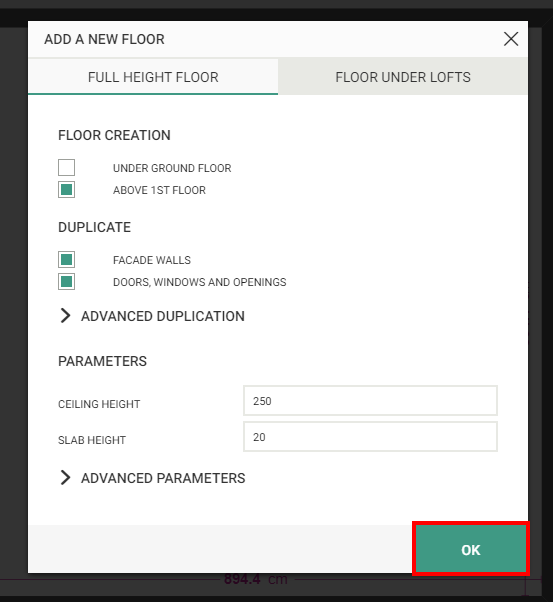

Once you have chosen all the settings, click "OK" to create your new floor.

The floor is created and the cross-sectional preview of your levels in the settings window is updated.

By following these simple steps, you can add and configure a new floor in your Kazaplan plan. This feature allows you to design multi-level houses according to your design needs.
