MOVE a piece of furniture within a kitchen cabinet set

When stretching a cabinet set, we offer you a sequence of cabinets.

We optimize their order based on the constraints of your plan (position of your window, position of your kitchen networks...) and the comfort and safety rules we have integrated (distance of certain equipment from the wall or other cabinets, distance between certain equipment...)

It is entirely possible to customize the order of cabinets within a cabinet set by moving a cabinet that requires it, thanks to the "swap" functionality.

Step-by-step to move a cabinet in a cabinet set

Step 1: Select your cabinet

In 3D: double-click on your cabinet.

- On the first click, the cabinet set is selected.

- On the second click, the cabinet is selected.

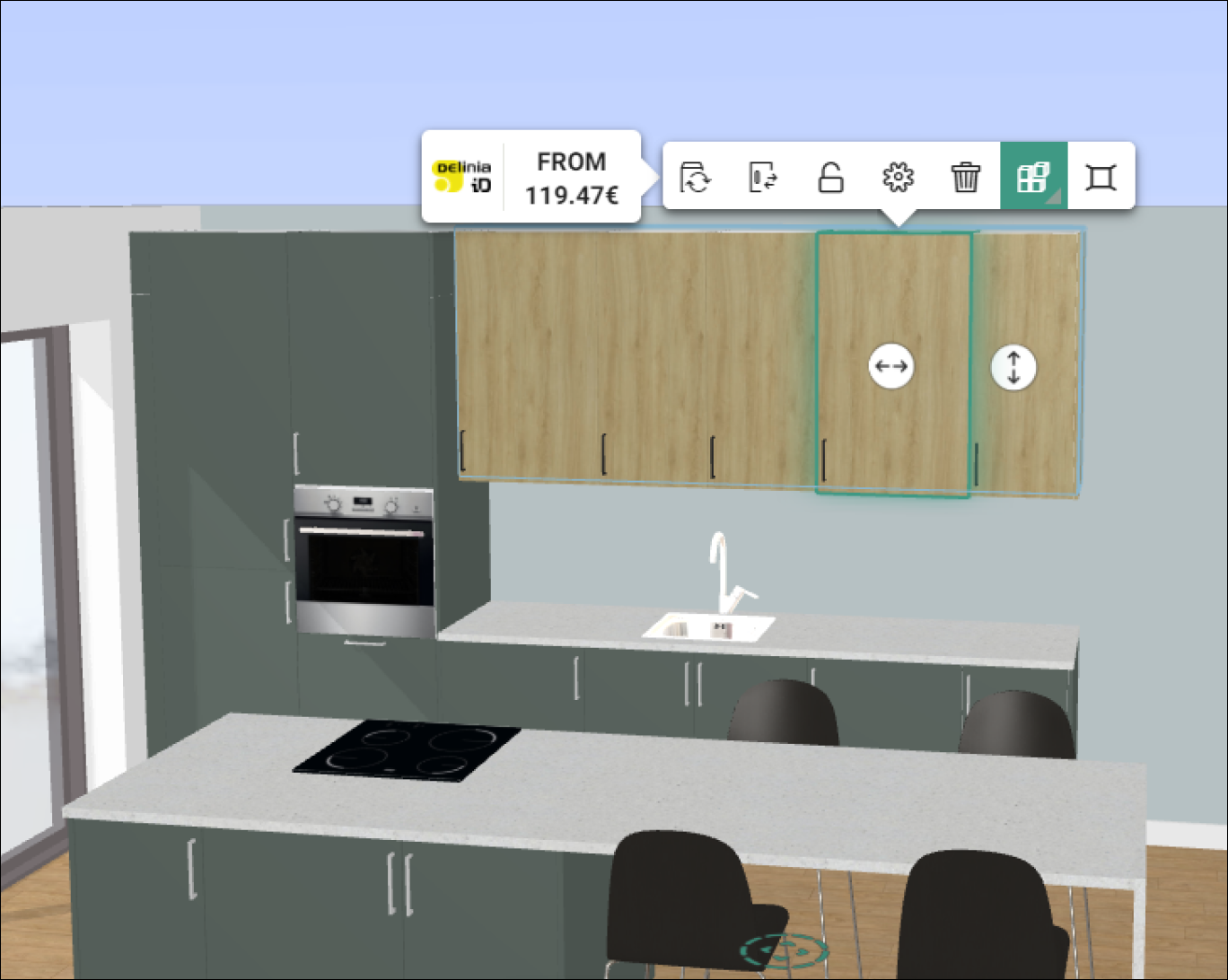

A green highlight appears: your cabinet is selected.

Its movement arrows are displayed:

• horizontal movement arrow for all cabinets
• vertical movement arrow for tall cabinets

Step 2: Move a cabinet in a cabinet set

- Only in 3D, move your cabinet using the horizontal movement arrow located on the cabinet's facade : perform a drag-and-drop and place the cabinet in the desired location.

Step-by-step to move a cabinet out of its cabinet set

Removing an existing cabinet from a cabinet set is possible.This action is similar to removing the cabinet from the cabinet set.

Step 1: Select your cabinet

In 2D, as well as in 3D, select the cabinet (step 1 of the swap see above)

Step 2: Move a cabinet in a cabinet set

- 1. Move the cabinet out of the cabinet set.A selection window will then be offered to refine your choice:"You are about to remove a cabinet from the cabinet set. Do you want to remove it and leave the space empty or remove it and move the other cabinets?"

- 2. Specify your choice:

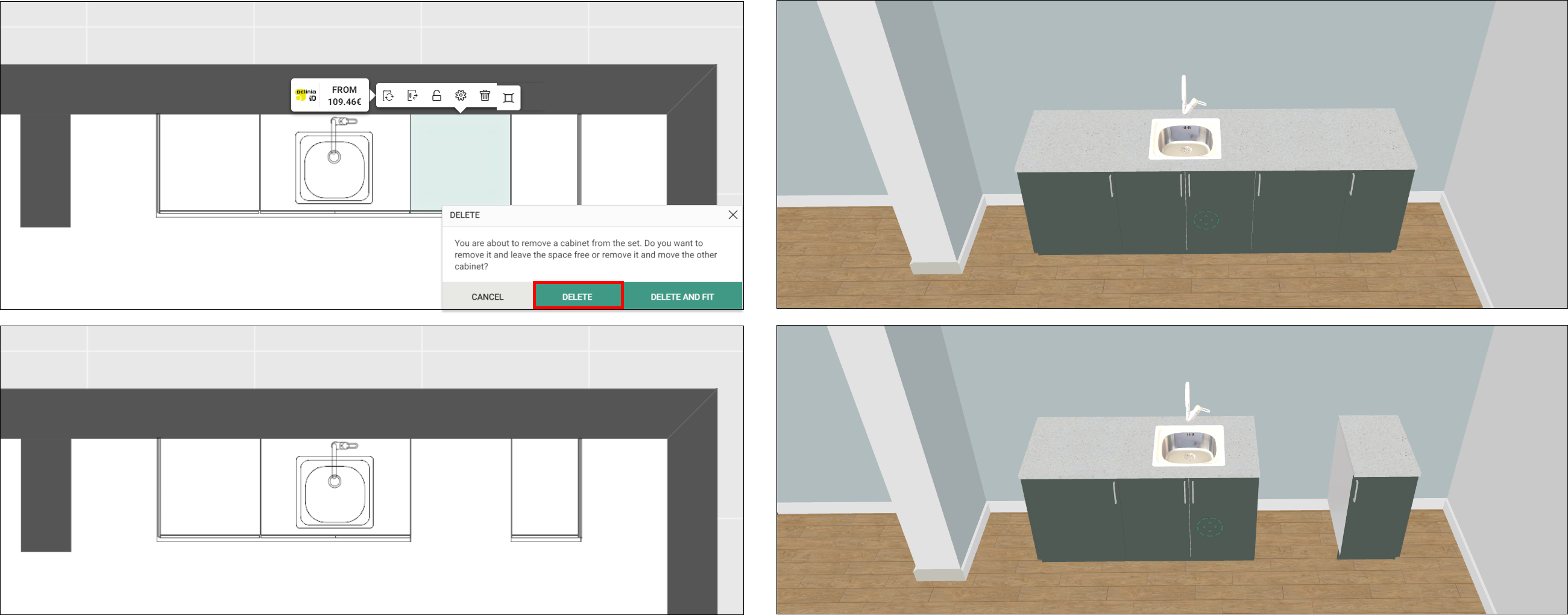

• remove and leave an empty space

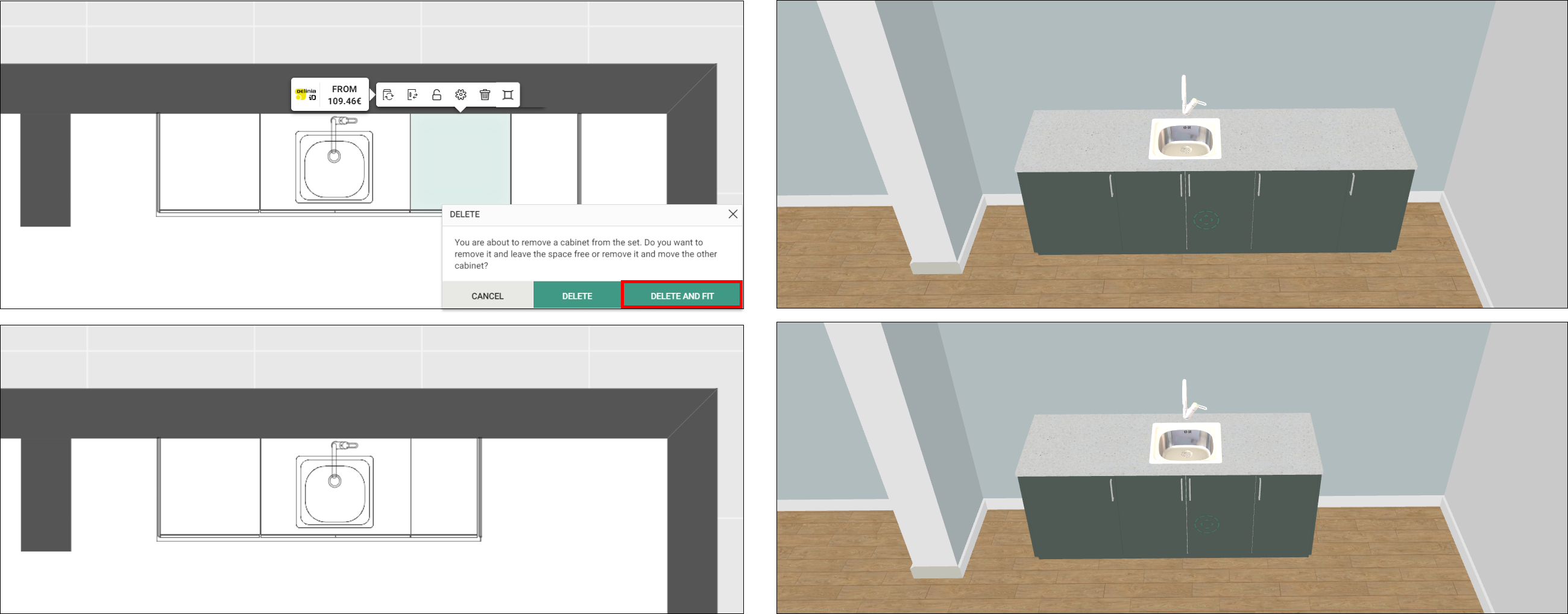

•  remove and bring the remaining cabinets closer

> more information on removal
