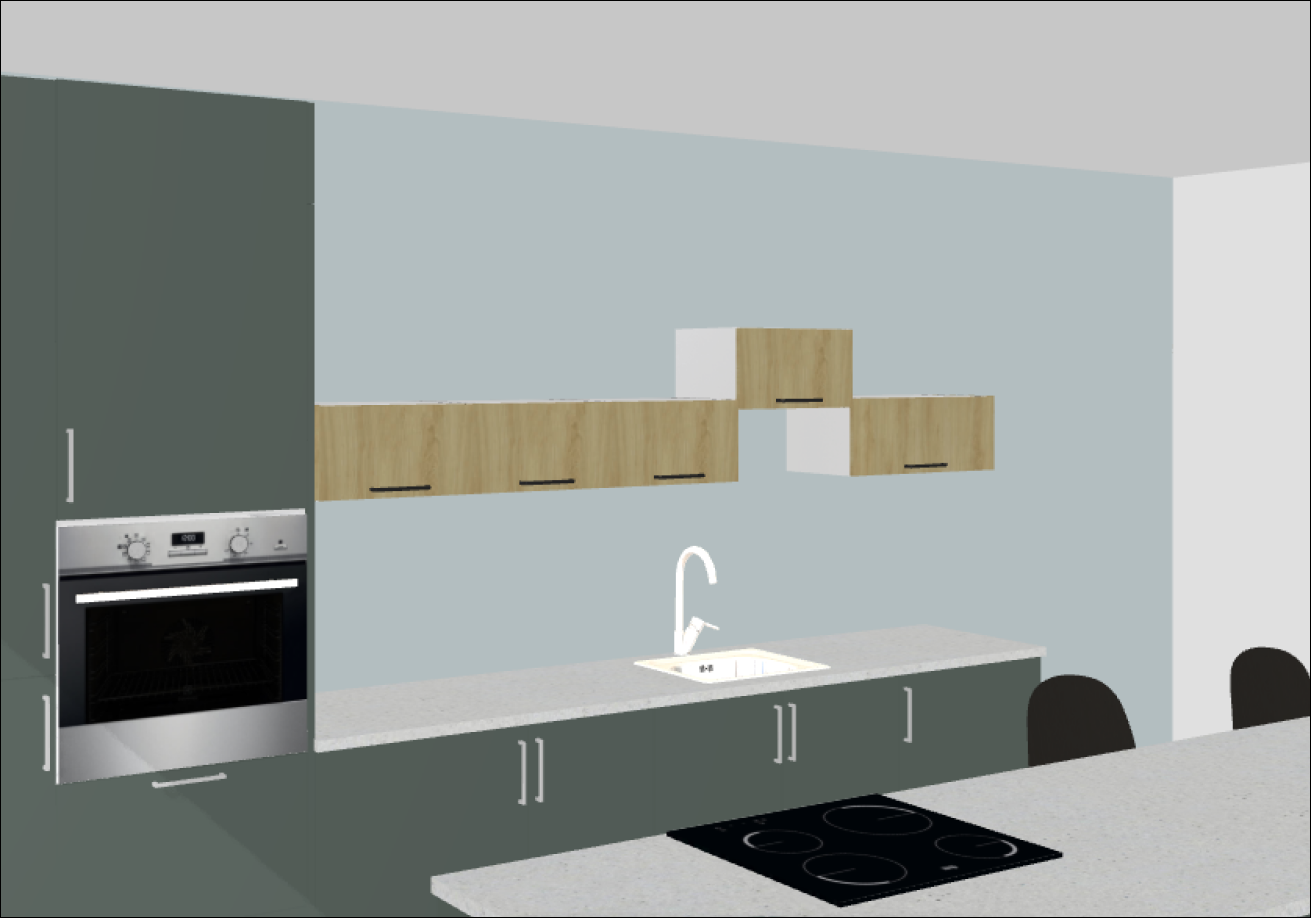

You have installed an isolated tall cabinet or a cabinet set, and you want to modify the elevation of some of your cabinets to bring life to your composition.
There are two ways to move a cabinet vertically:
- mouse movement in 3D
- editing the position in the settings panel
- editing vertical position dimensions in frontal view
Step-by-step guide to modify the elevation of a cabinet
Step 1: Select your cabinet
-- Selecting an isolated cabinet

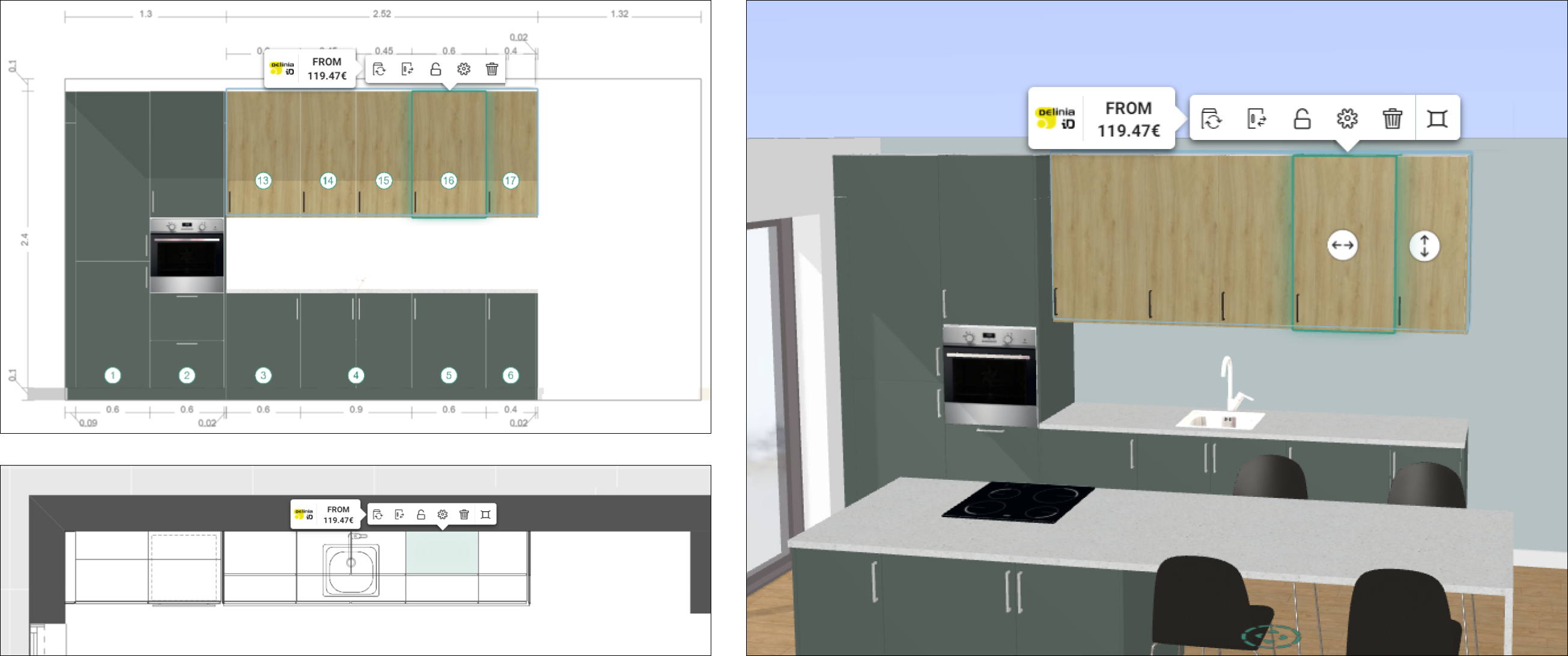

In 2D, 3D, or frontal view: click on your cabinet.
A green highlight will appear: your cabinet is selected.

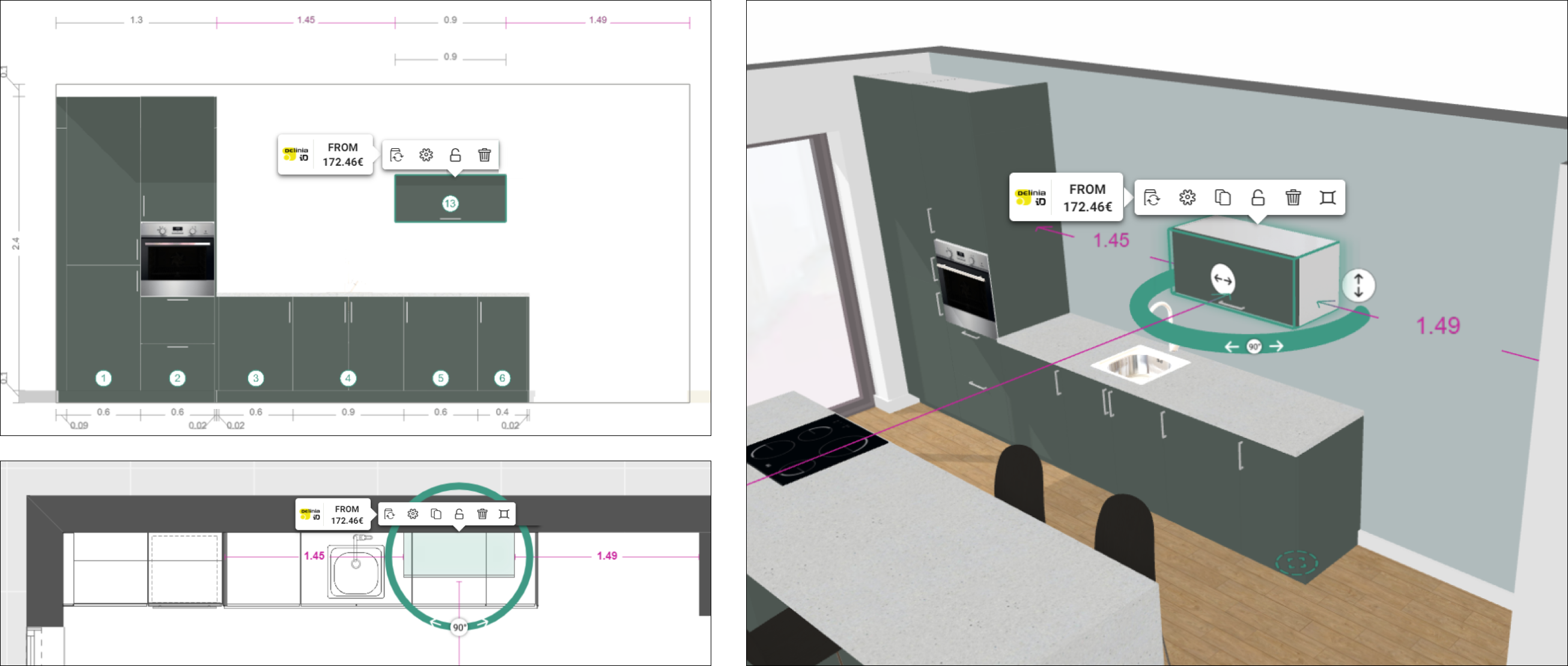

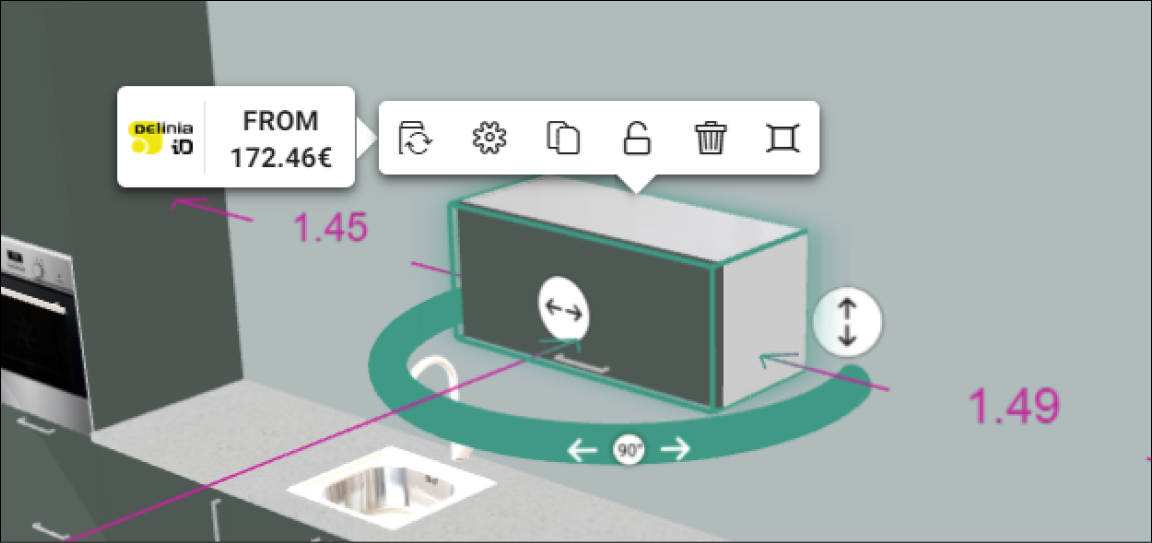

Its movement arrows appear:
- horizontal movement arrow for all cabinets
- vertical movement arrow for tall cabinets

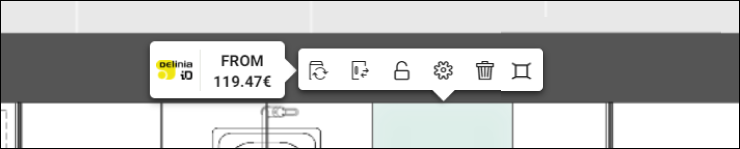

Its context menu appears with its price and various editing options:
- replace one cabinet with another
- access the cabinet properties
- duplicate the cabinet
- lock the cabinet
- delete the cabinet
- access frontal view
-- Selecting a cabinet in a cabinet set
--- Solution 1: Selection in the plane
In 2D, 3D, or frontal view: double-click on your cabinet.
- On the 1st click, the cabinet set is selected.
- On the 2nd click, the cabinet is selected.
A green highlight will appear: your cabinet is selected.

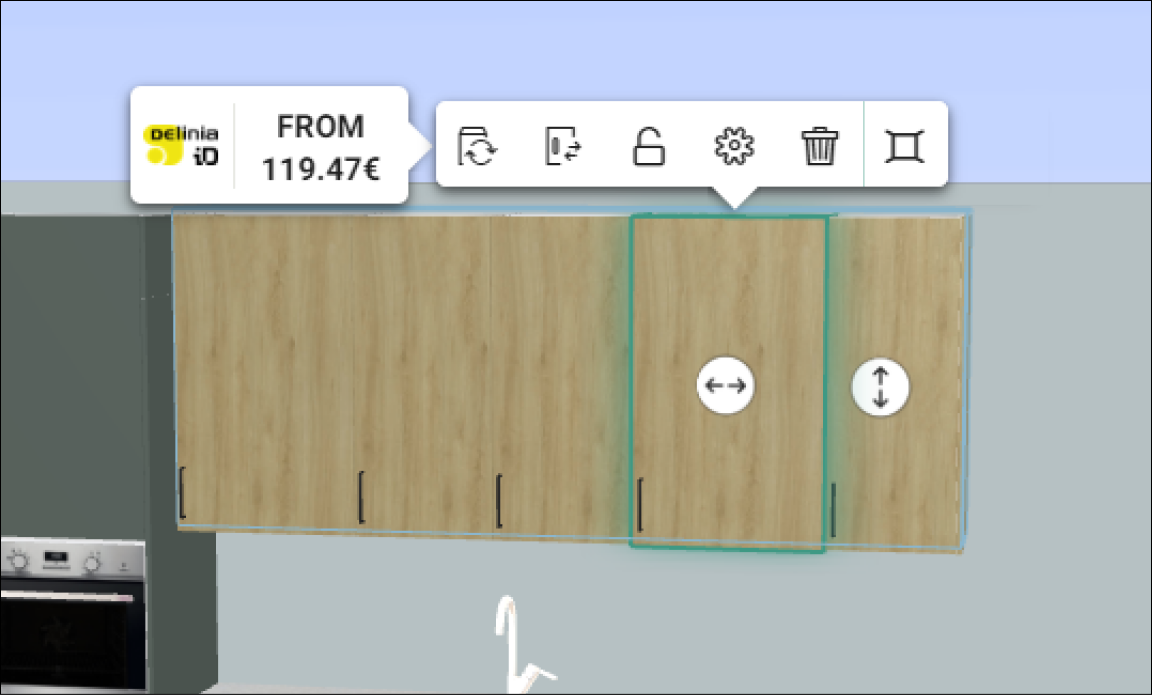

Its movement arrows appear:
- horizontal movement arrow for all cabinets
- vertical movement arrow for tall cabinets
Its context menu appears with its price and various editing options:
- replace one cabinet with another
- change the direction of the doors
- lock the cabinet
- access the cabinet properties
- delete the cabinet
- access frontal view
--- Solution 2: Selection from the contextual menu of the cabinet set

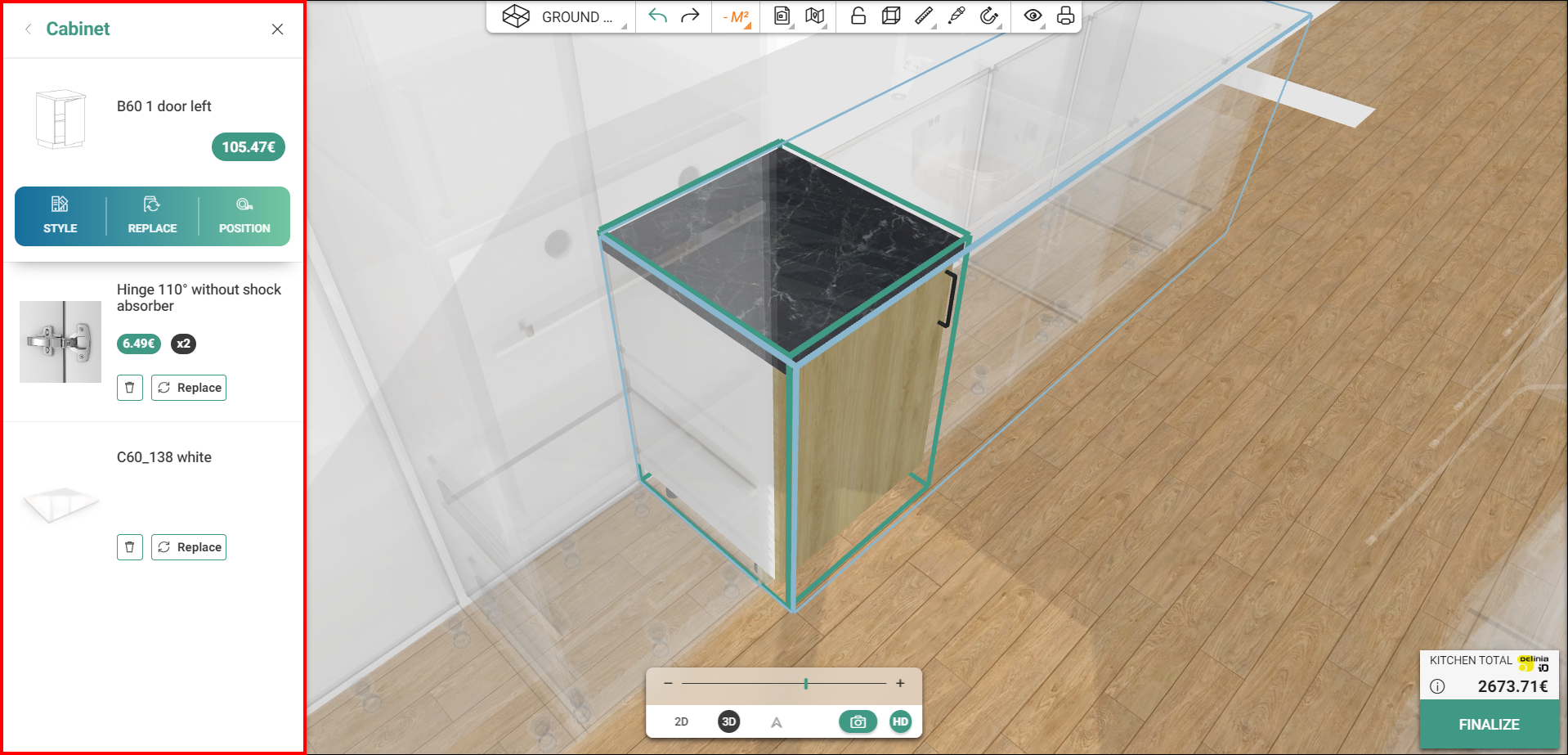

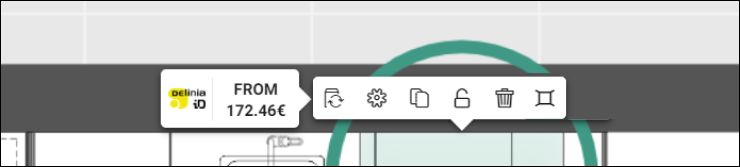

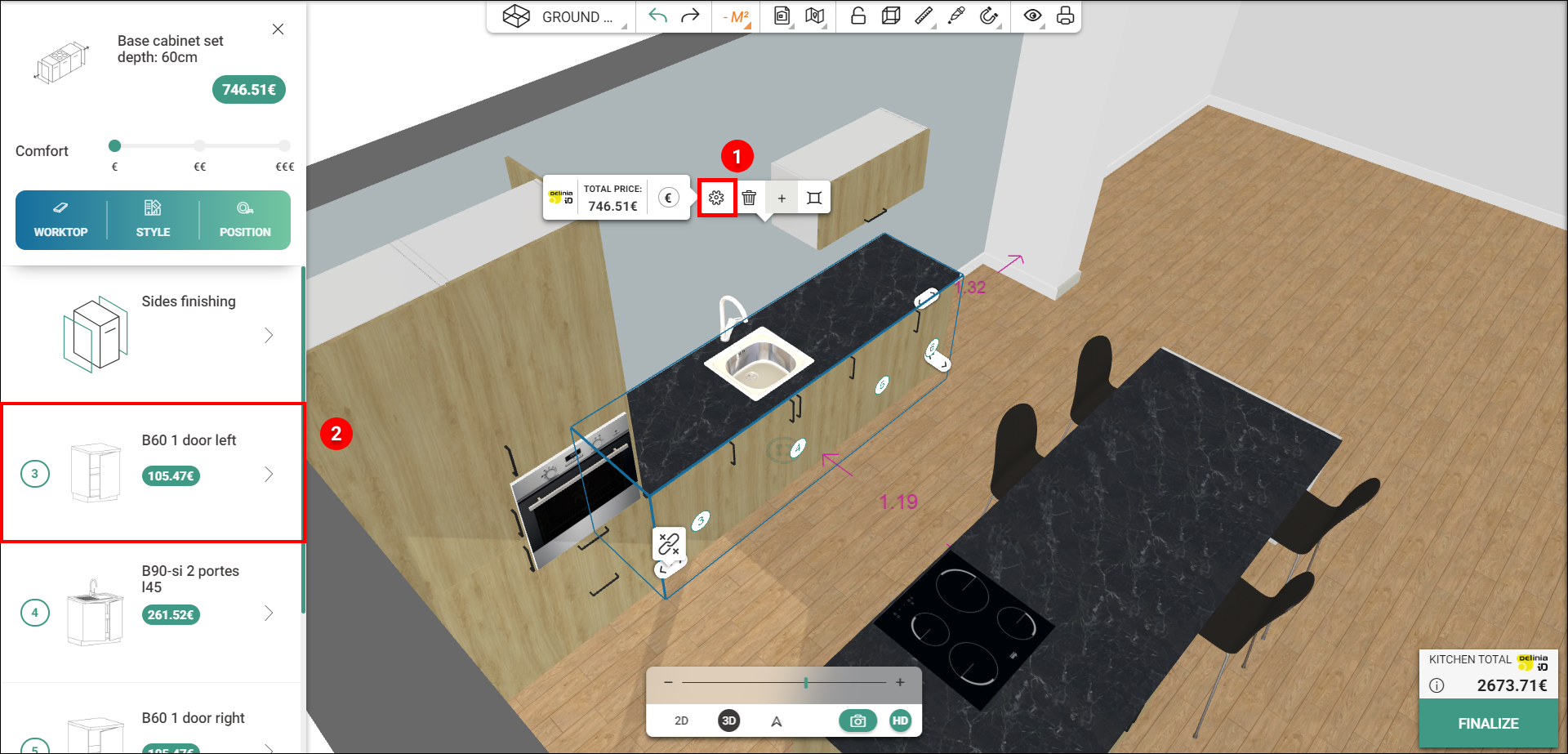

- 1. Select the cabinet set by clicking on it. Click on the "properties" icon in the cabinet's contextual menu. The settings panel appears on the left side of your screen, with the list of cabinets it contains.
Step 2: Modify the elevation of a cabinet
Choose one of these movement methods:
- Solution 1: Movement using the MOUSE
For isolated cabinets and cabinets in a set:
Only in 3D,

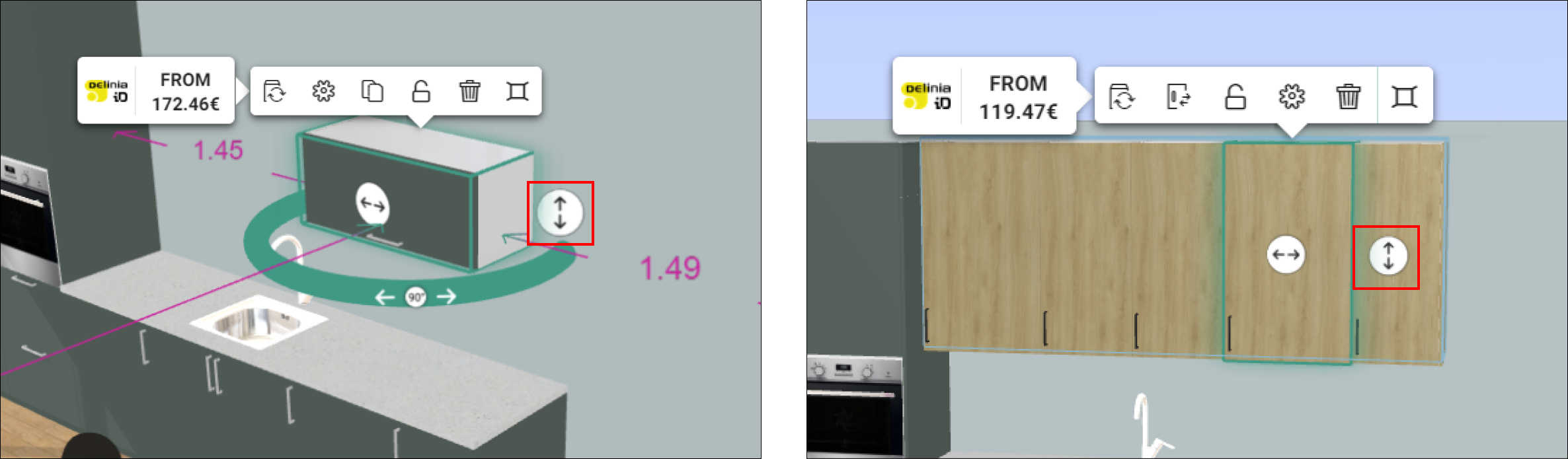

- Use the vertical movement arrow on the facade and perform a drag-and-drop to the desired location.
- Solution 2: Editing the position in the SETTINGS PANEL
For an isolated cabinet and a cabinet in a set
In 2D and 3D, and in frontal view,
[settings panel from January 2024]

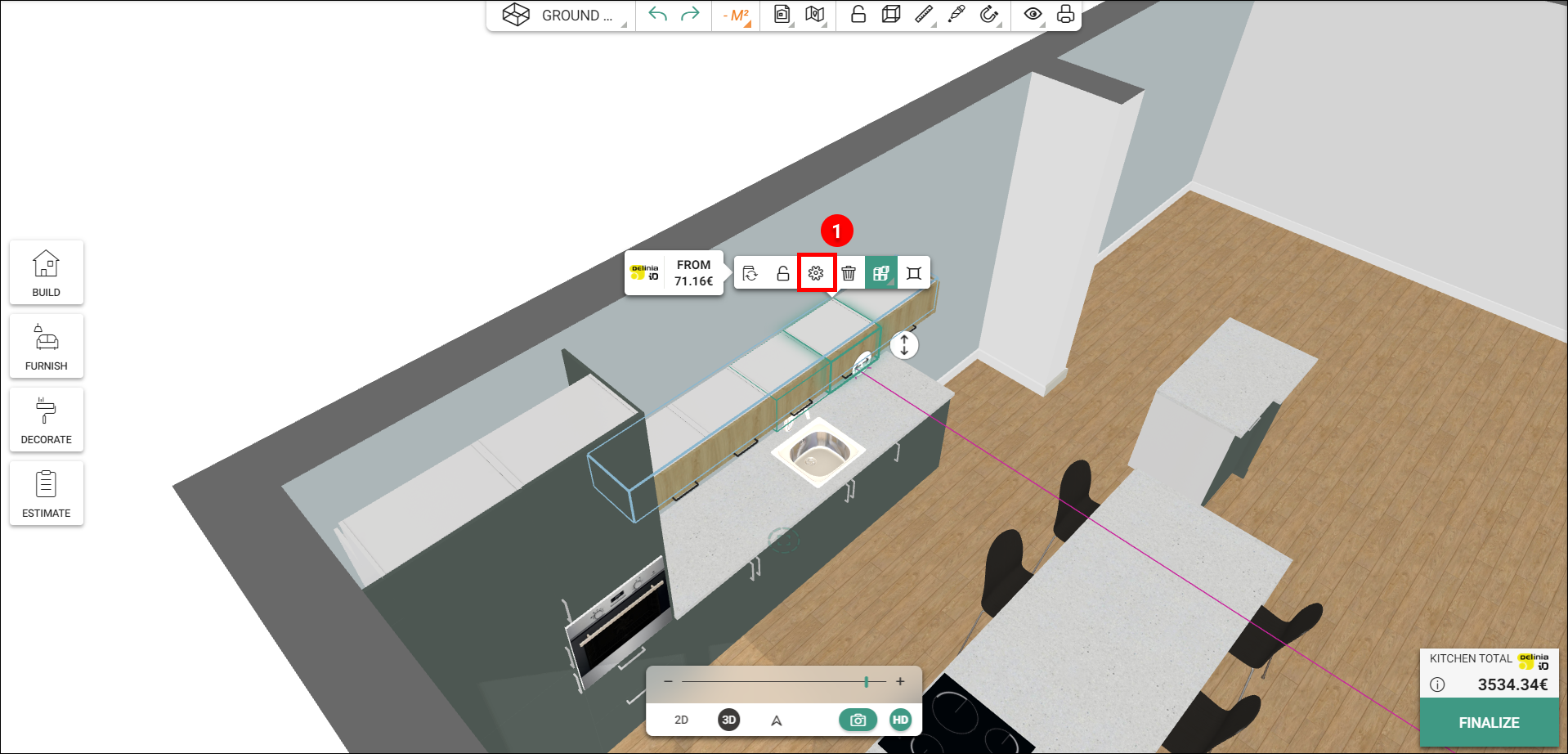

- 1. Click on the "properties" icon in the cabinet's contextual menu. The settings panel appears on the left side of your screen.

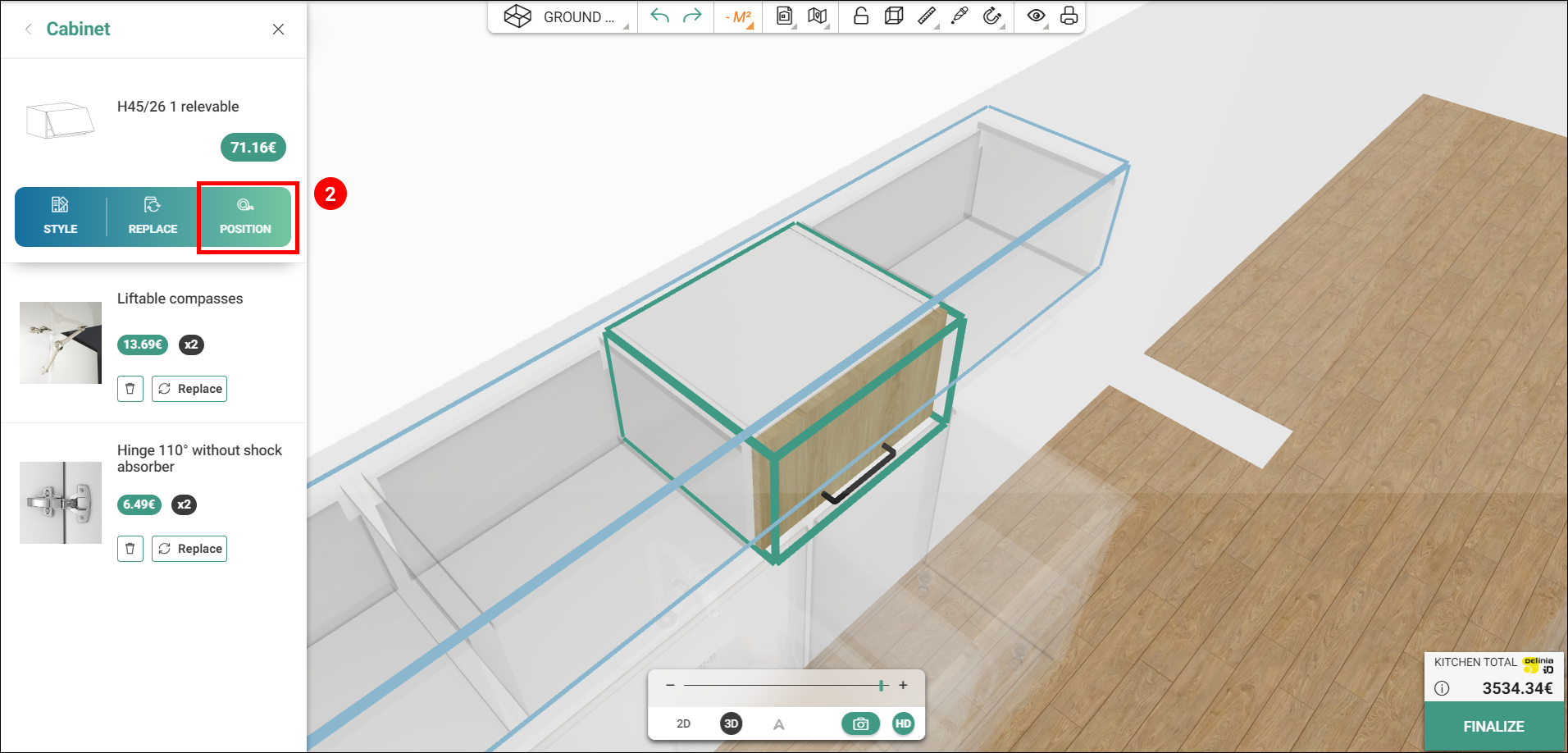

- 2. Then, expand the "position" tab of your cabinet.
The position menu appears.

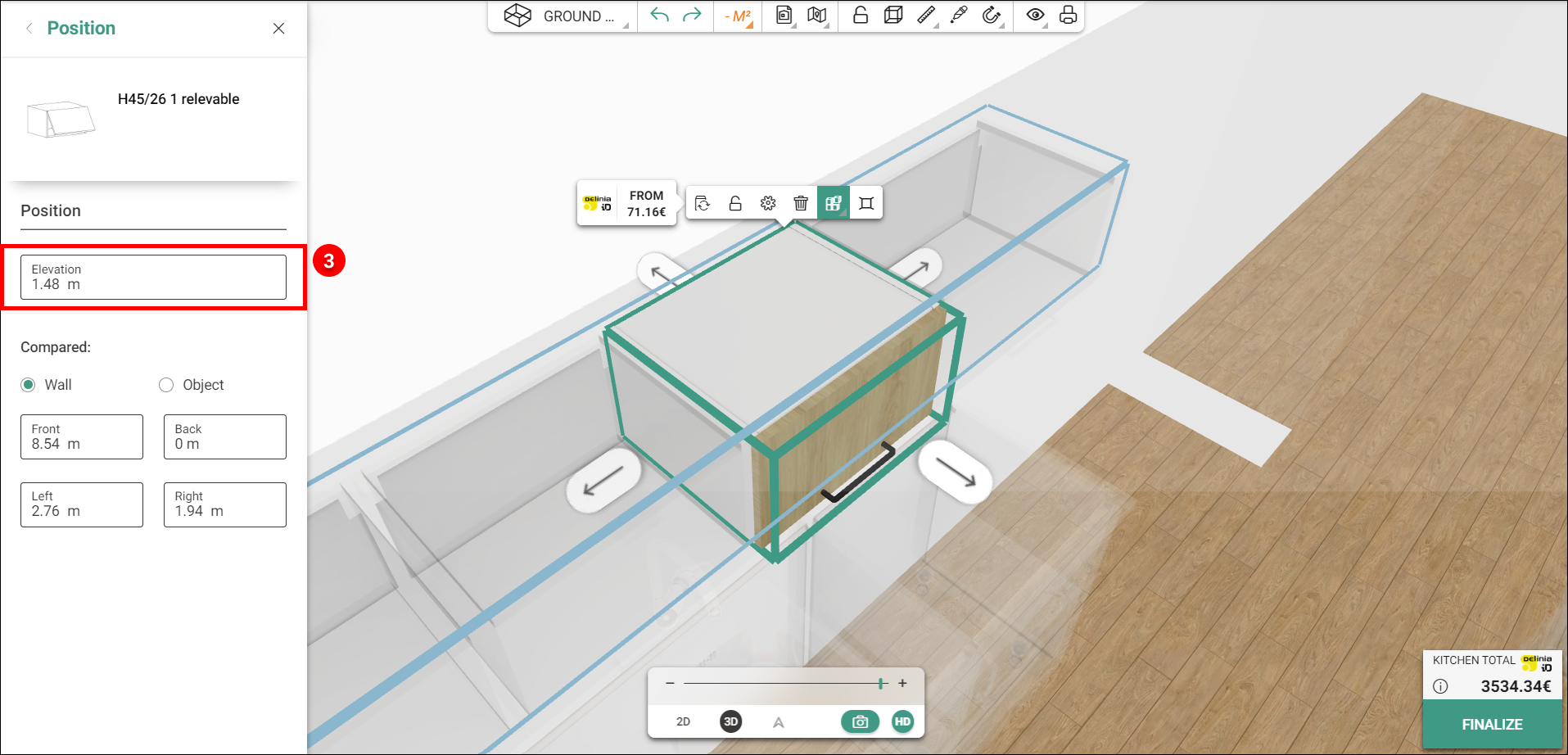

- 3. You can configure: the elevation of your cabinet : this allows you to change the height of the cabinet relative to the floor. This option is especially useful for tall cabinets.
- Solution 3: Editing POSITION DIMENSIONS in frontal view
For isolated cabinets only

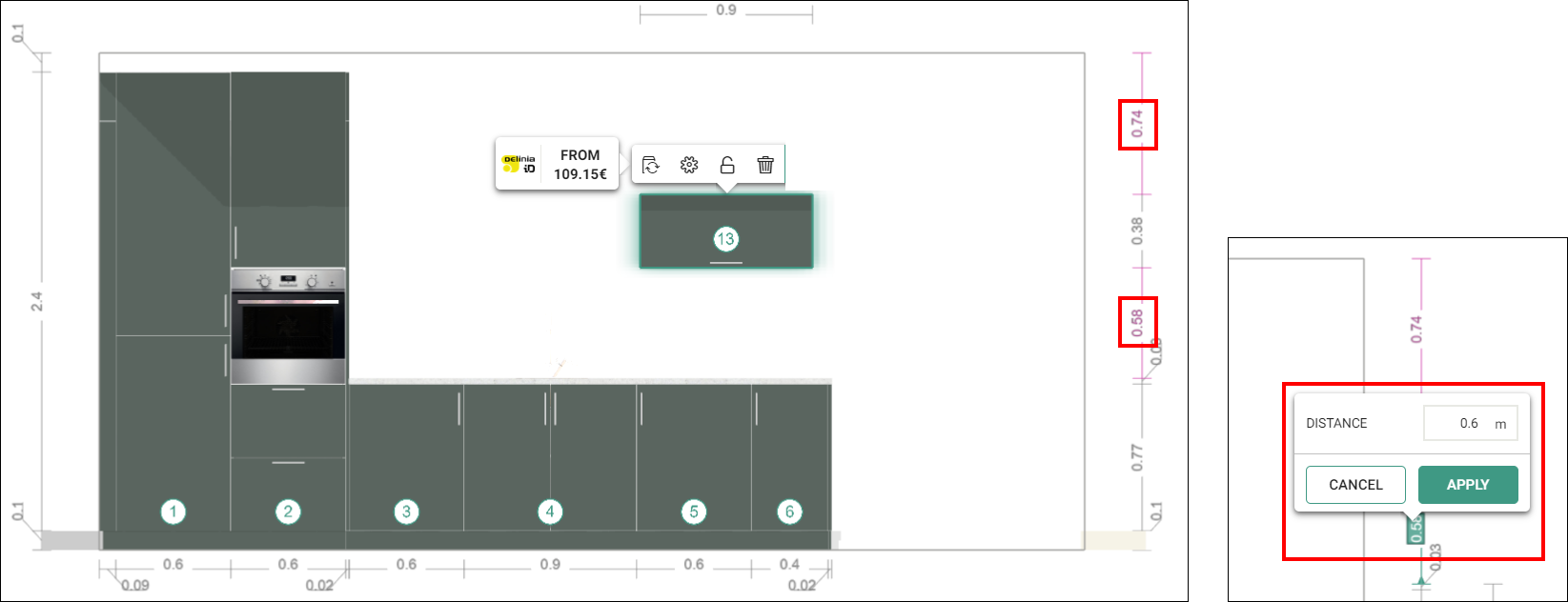

- In frontal view, click on the pink vertical position dimensions of an isolated cabinet, they are editable.
- In 2D and 3D, this functionality is not available.
