- Start planning my house using GEOLOCATION

Prerequisite: This feature is not available for all partners.

Do you want to create a 3D plan using geolocation as the starting point? This tutorial will guide you on how to import your walls from an address and start building your project easily.

Note: Find this page by creating a new plan

> Tutorial: How to create a new plan?

Step 1: Choose to start a global plan from an address

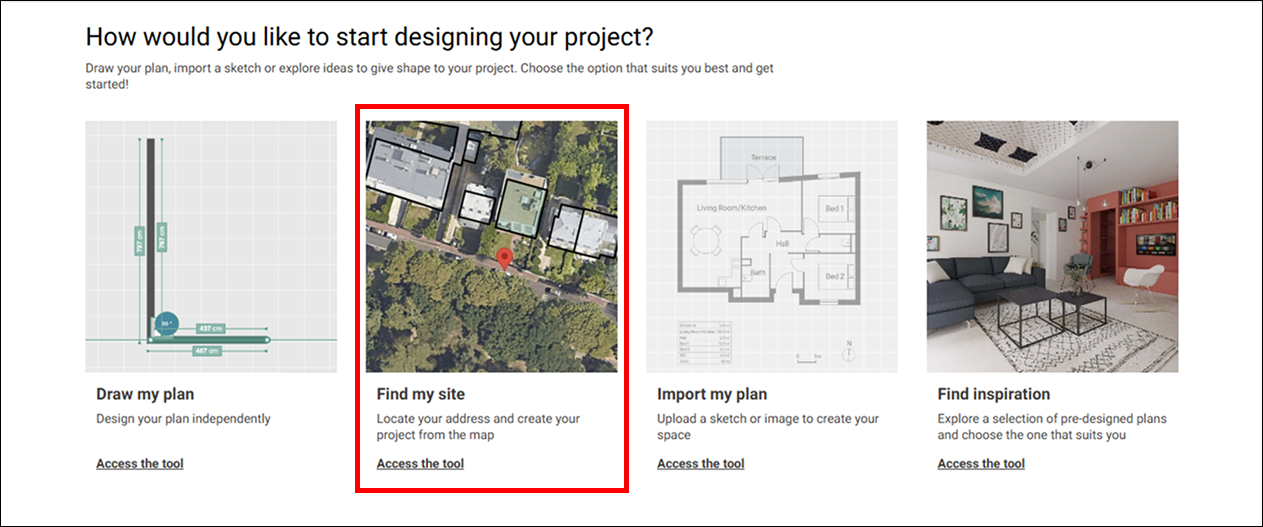

1. Choose the global mode: Click on "Create a plan" in the main menu from a global plan

2. Choose the starting type: Select "From my address".

Step 2: Import geolocation

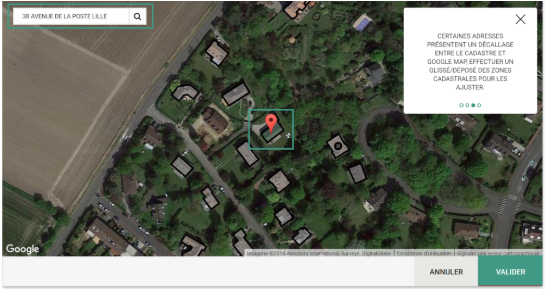

1. In the modal, enter the desired address.

2. Click on your house to select it. It should now appear darker. Click "Validate".

Tip: click on the cross in the area to delete it. To make it reappear, simply re-enter the address and search for it to make it reappear.

• Select one or more areas (CTRL or COMMAND) then click "Import".
• Move the pointer or type another address to select another one.
• Adjust the offsets between the cadastre and Google Map by drag and drop.
• Note that some cadastral areas may be missing due to the version of the data used.

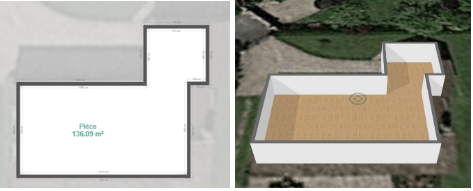

3. Validate. Your plan then opens: Your exterior walls already appear drawn on the imported map plan.

Now it's your turn to draw the interior load-bearing walls and partitions!

Step 3: Manage Geolocation Display

To adjust the map display:

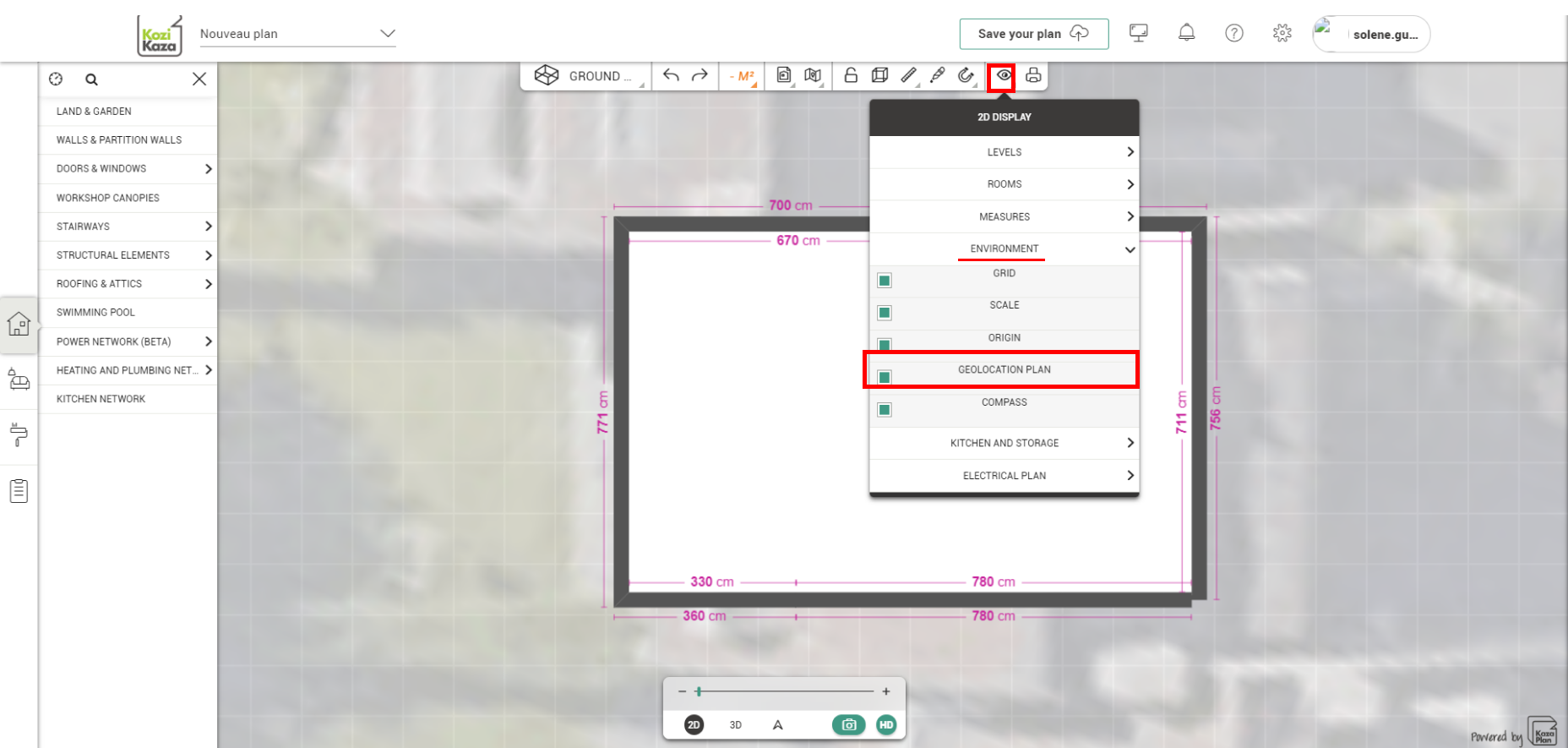

• Click on the eye, "Manage 2D elements display", in the menu bar.
• Select or deselect "Geolocation plan" in the Environment tab.

Add geolocation to an existing plan

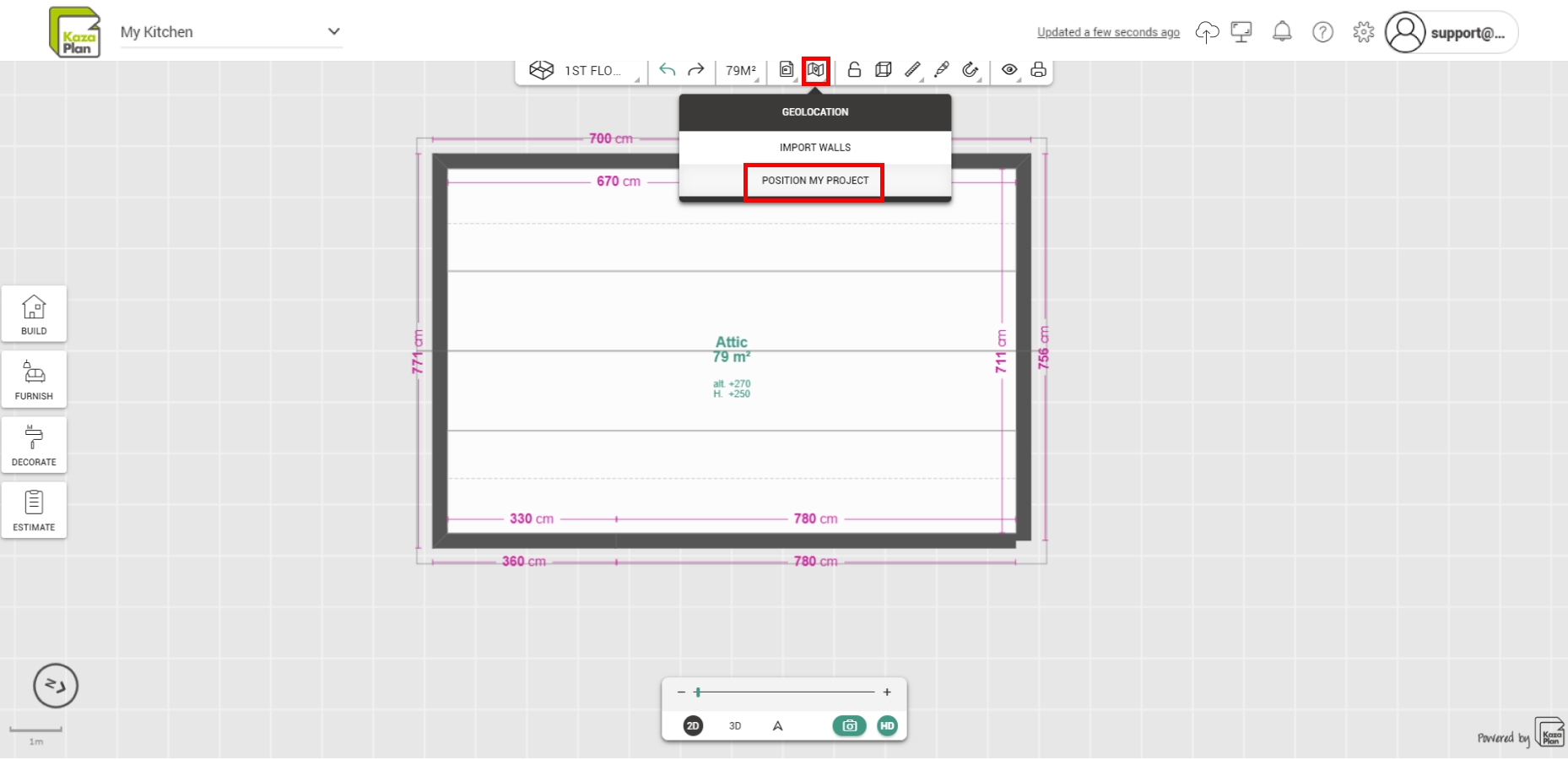

• Click on the geolocation icon in the toolbar:
• Select "Position my project".

• Enter your address and validate.

Remove geolocation

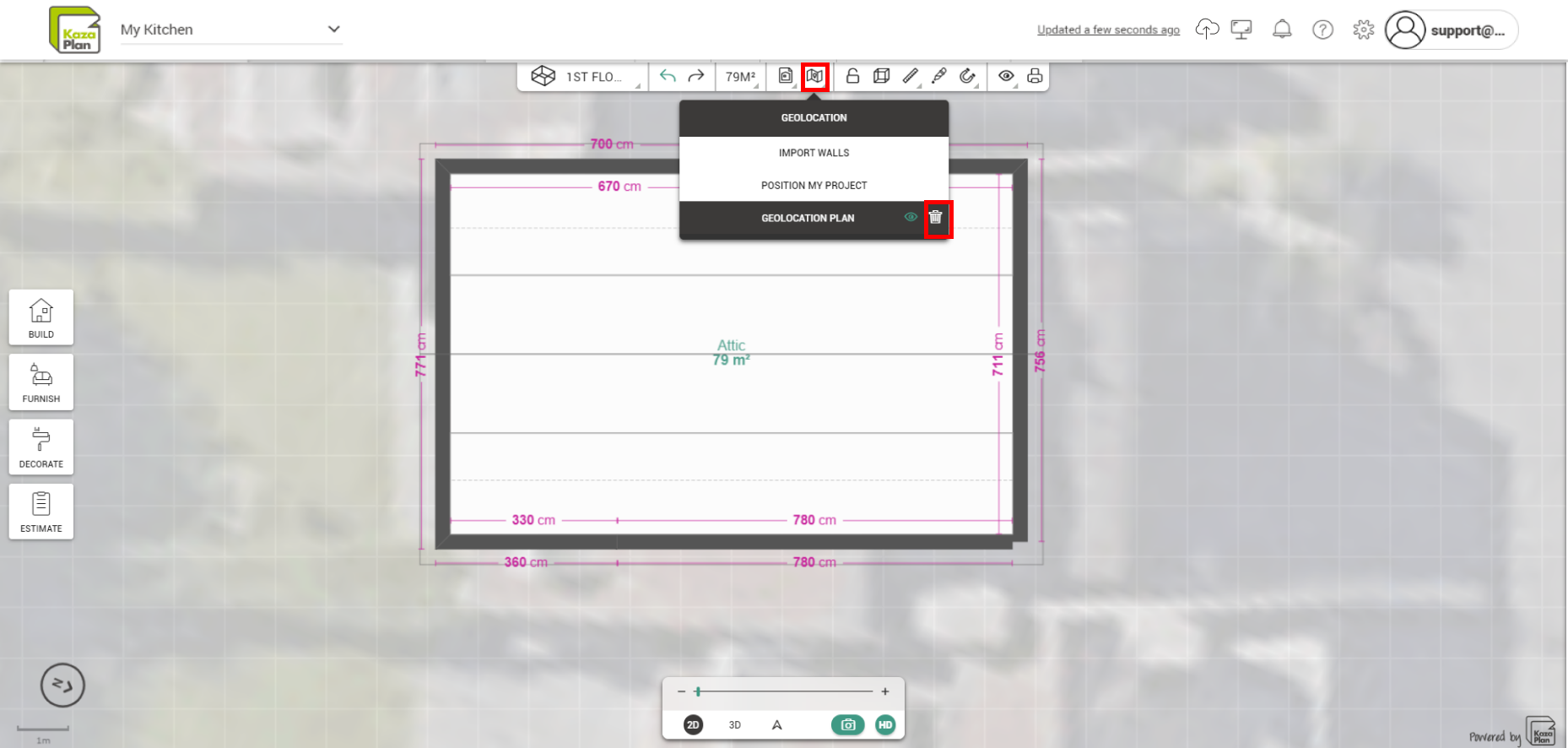

• Click on the geolocation icon in the toolbar
• Click on the trash can to permanently delete the geolocation from your plan.

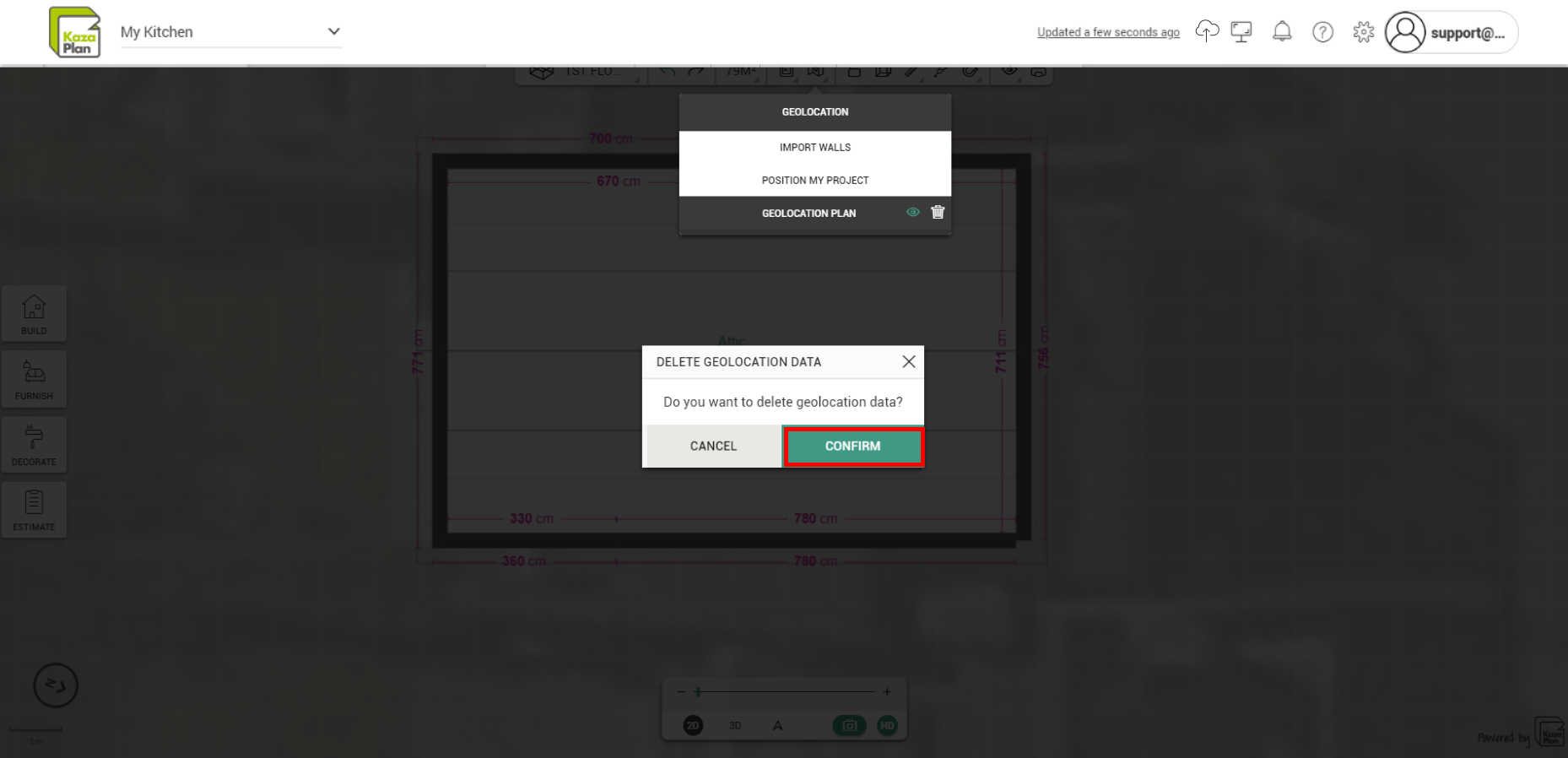

• Confirm your choice in the window

• Your geolocation will no longer appear.

To go further: Creating partitions or the boundaries of your land

Once the plan is open, you can customize it based on your measurements.

> For more information on editing measurements, see this tutorial.

You can now start drawing your home or land by accessing the "Build" menu.

- If you want to model your project's partitions, choose "Walls & Partitions".

> more information here

- To model your land, select "Land & Garden".

  > more information here

Congratulations! You have now integrated geolocation into your plan on Kazaplan and can work accurately on your project.
