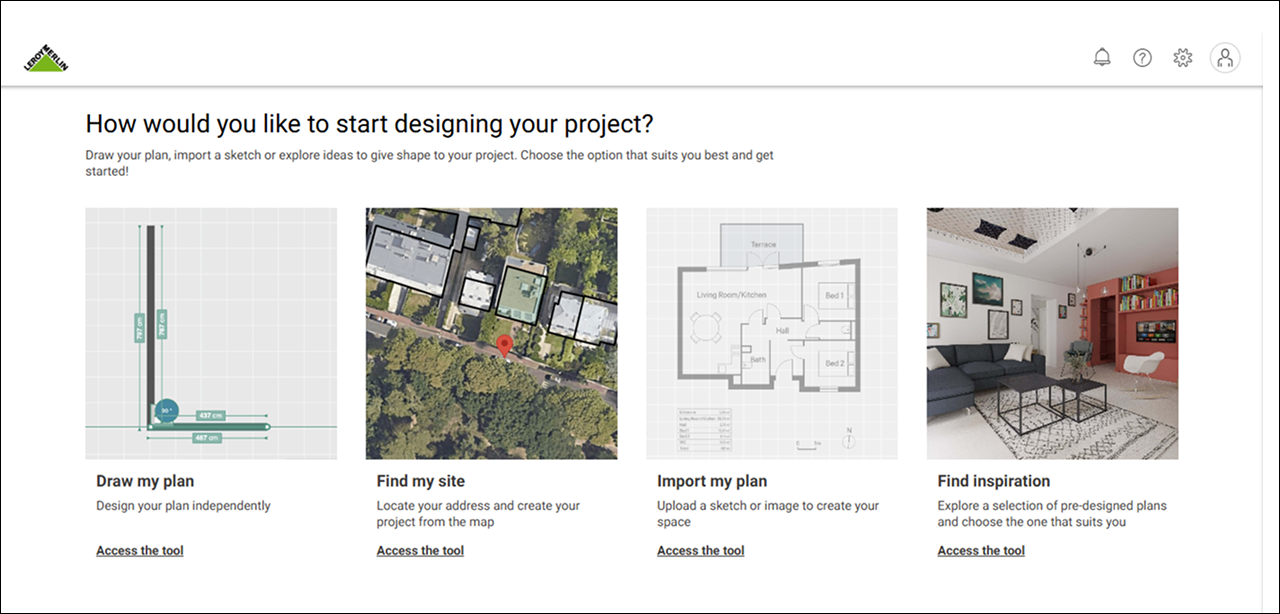

Introduction to the STARTSCREEN

Welcome to the start screen of our 3D modeling tool.
You have several options to begin your project depending on your needs: from a shape, a blank plan, an address, an existing plan, or inspiration layouts.

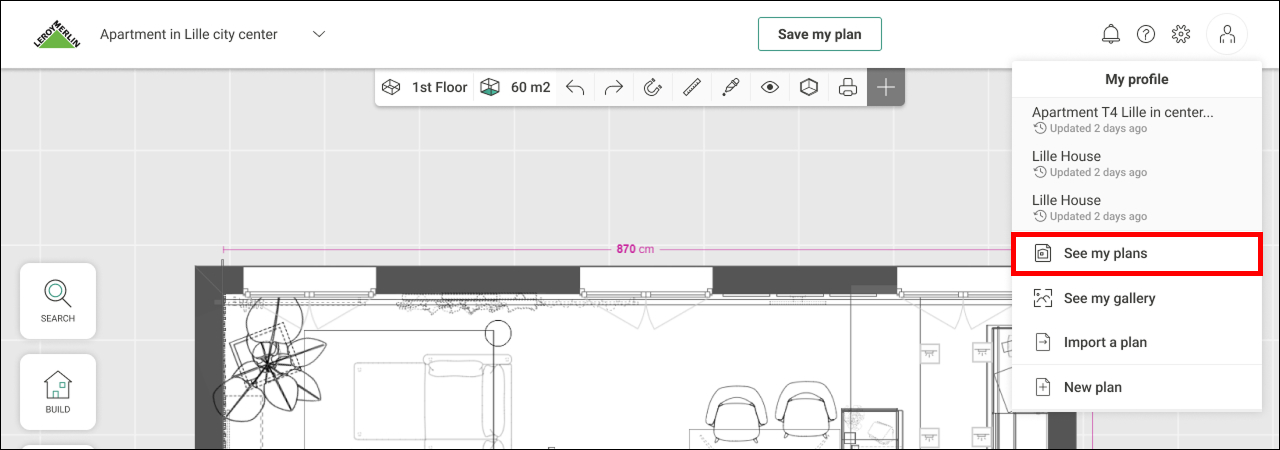

At any time, click on your avatar then select "New Plan" to return to this screen.

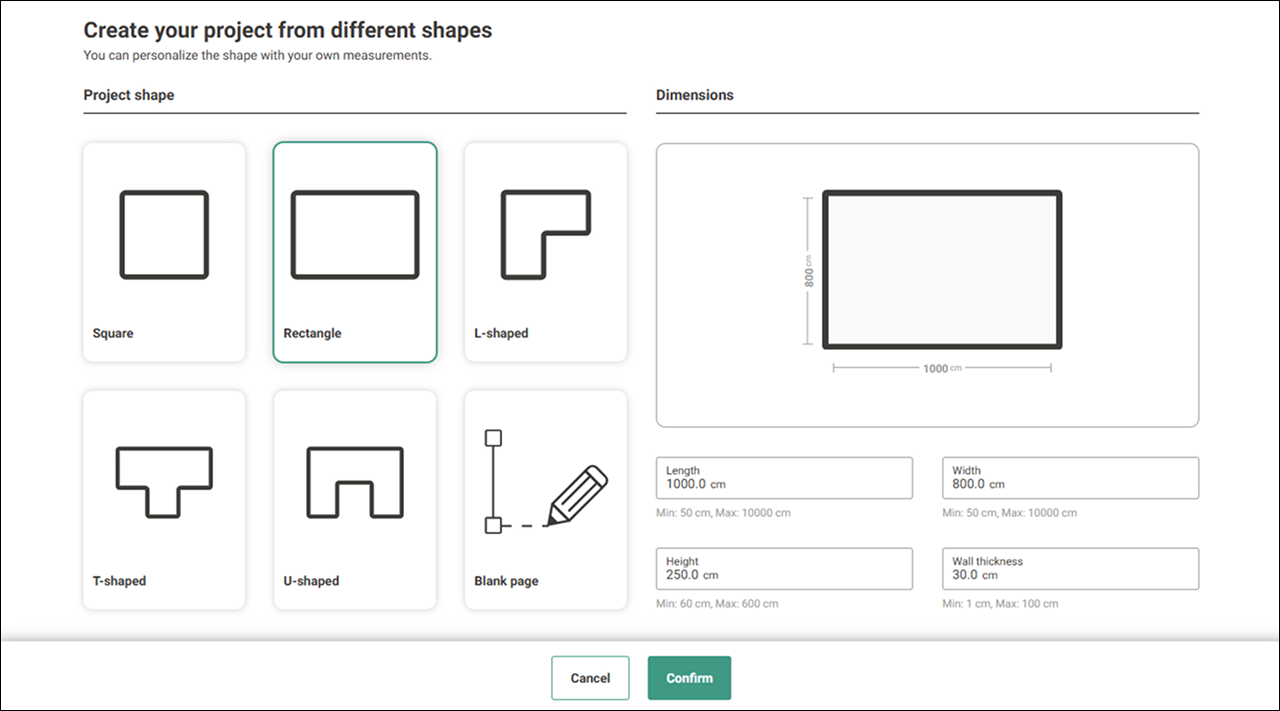

1. Draw My Plan

This start mode lets you begin your project using a house, room, or land shape.

Steps:

• Choose a shape,
• Apply symmetry if desired,
• Customize its dimensions,
• Validate to launch the automatic wall modeling of your space.

The plan opens with your first walls. You can add to or modify their dimensions.

💡Tip: You can also start from a blank plan and draw your walls one by one.

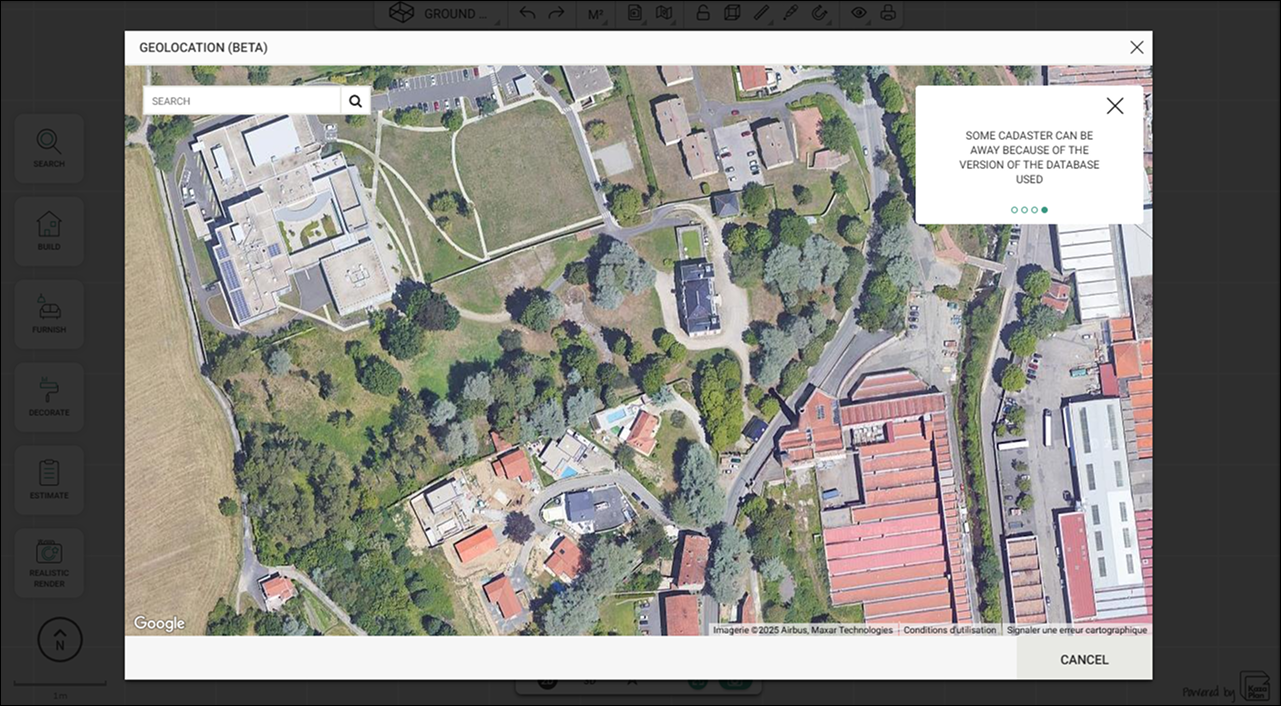

2. Find My Land

This start mode lets you begin your project modeling from an address.

Steps:

• Enter your project’s address,
• Select the desired building,
• You can adjust its position on the background,
• Deactivate 3D of neighboring buildings by clicking their cross, if desired,
• Validate to launch automatic wall modeling.

Your plan opens with the walls of your building modeled.

💡Tips:

• You can hide or delete the geolocation background at any time from the toolbar Manage reference plan.
• You can also adjust its position at any time by clicking "position my project"

More information on geolocation

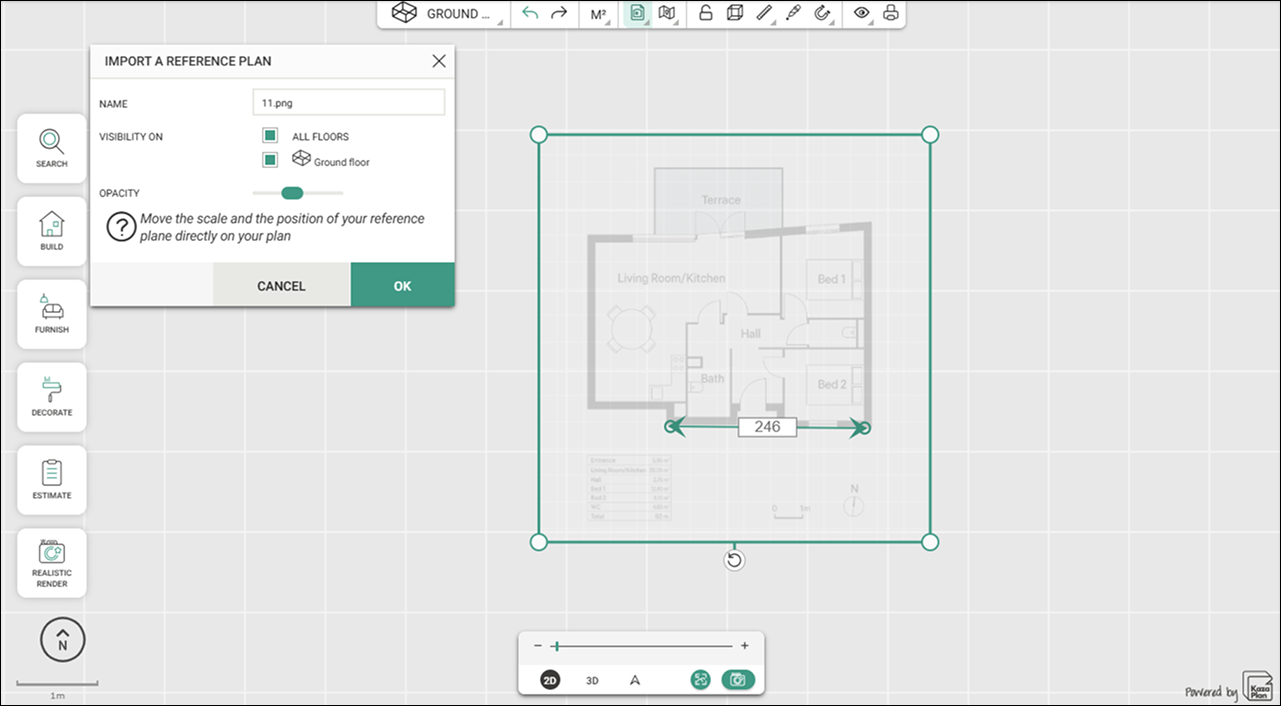

3. Import My Plan

This start mode lets you begin your project modeling from an existing plan in jpeg or png format.

Steps:

• Import your plan,
• Scale the plan using the double arrow. To do this:
  • Position the arrow ends on an element whose length you know: wall, boundary, doorway...
  • Enter the element’s length;
  • Press "Enter" to confirm.
• Rotate your plan if desired,
• Validate the "import reference plan" window to display your background plan.

The background plan appears. You can model your project on this reference plan: redraw walls and place furniture.

💡Tip: You can hide or delete the background plan at any time from the toolbar Manage reference plan.

More information on importing and managing existing plans

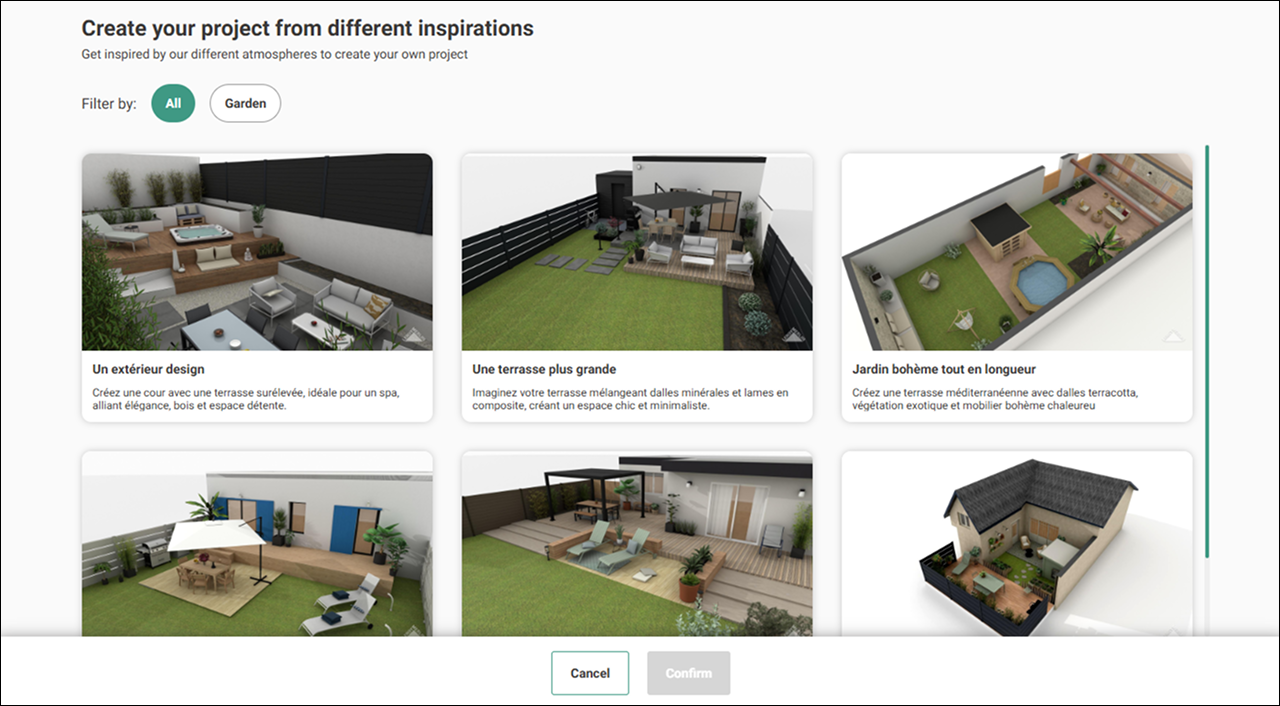

4. Find Inspiration

This start mode lets you begin your project modeling from inspiration plans.

Step:

• Choose a plan,
• Validate to explore it.

The plan opens. You can modify and save it.

Whichever start mode you choose, you can modify and enrich your project at any time.
