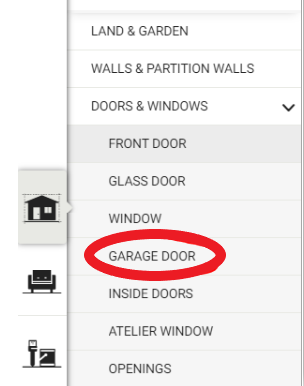

To draw a garage door, go to the menu Build > ; Doors & windows >Garage door.

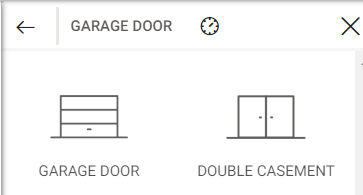

Select the type of door that you want:
- sliding garage door
- double swing garage door
Using your mouse, position the chosen door on one of your walls.

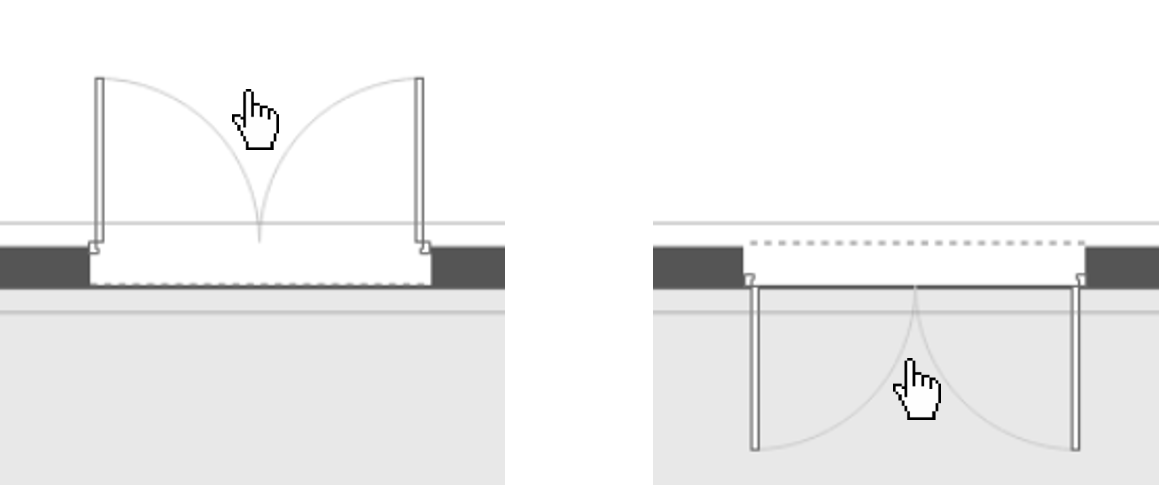

Tip: Move your mouse to either side of a wall to change the direction in which the door opens.
Click to confirm the position of the door.
Tip: You can make it bigger by dragging and dropping the ends.

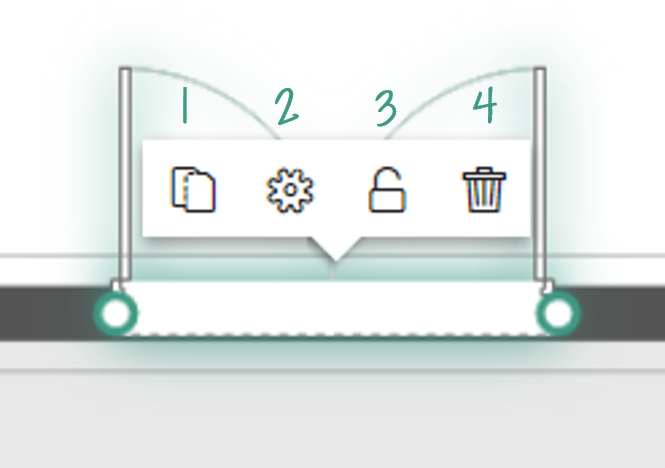

The edit menu will now be displayed (this menu appears each time you click on a door).
You can then:
- Duplicate the door
- Access its Properties
- Lock its position
- Delete the door
In the Properties menu of all garage doors you can edit:

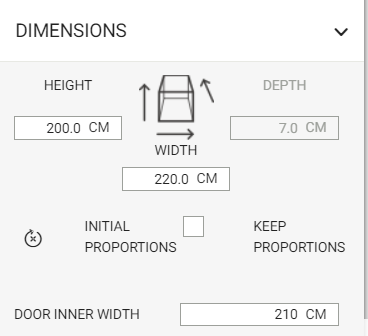

- width
- height

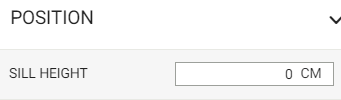

- elevation

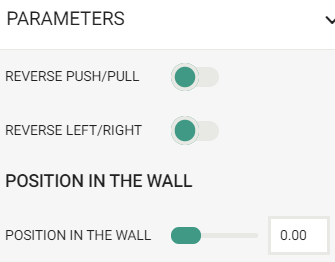

- reverse push/pull
- left/right reverse
- position in the wall
Tip: You can see the result of the changes to your settings in real time. Move the settings window (drag and drop the menu title) to make your door visible and press Enter each time you change a measurement. The change will be made automatically.
Tip: When you have finished the settings for your door, double-click on it (in 3D) to open it!
