Single_Slope_Roof

Create a single-slope roof without ceiling:

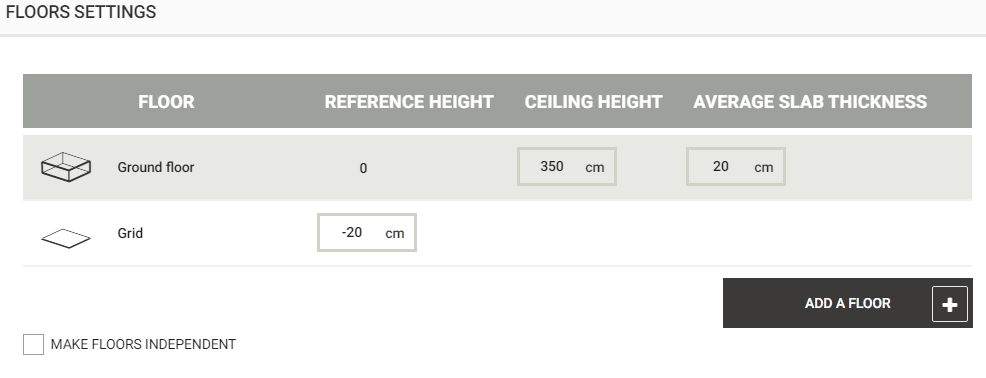

Increase the height under ceiling in the levels:

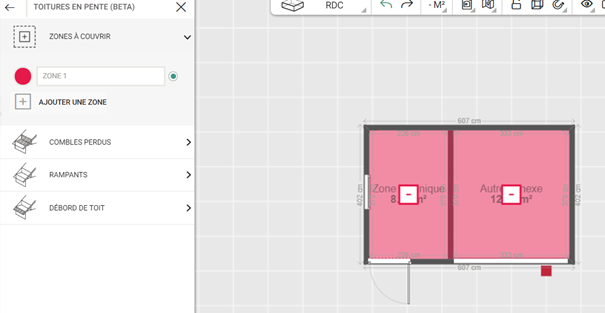

Then, in the roofs and attics menu:

- sloping roofs

- - - roof slopes

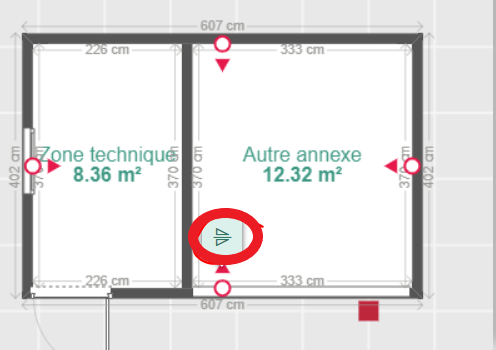

-> Click once on the down arrow then deactivate the symmetry (circled in red below):

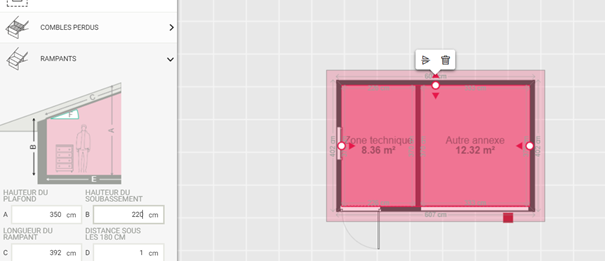

Then take the arrow up`from the bottom to the opposite wall, and add a height of the dwarf wall:

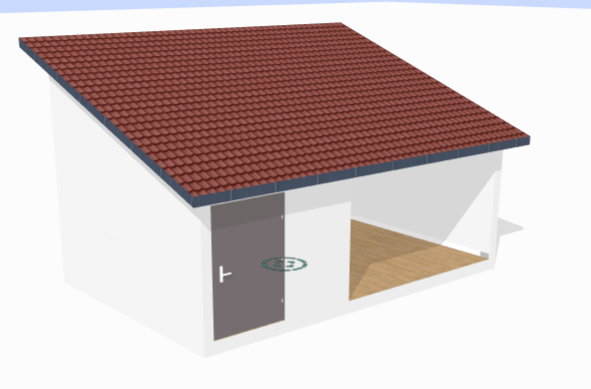

You will then get your single slope roof:

Create a single-slope roof with ceiling:

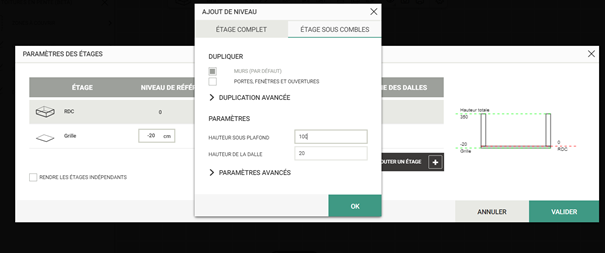

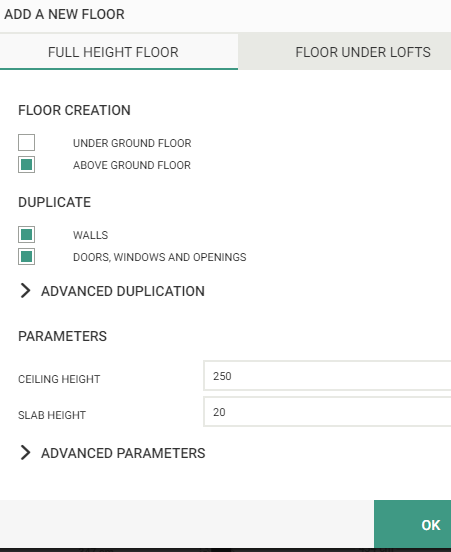

Add a level, choose an attic floor:

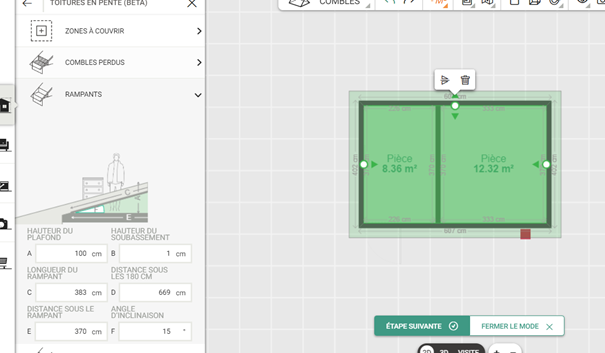

In roof slopes, deactivate the symmetry and drag the arrow down to the opposite wall and adjust the height of the dwarf wall:
