How to represent my electrical network?

The "Electrical Network" menu allows you to create the electrical diagram for your room or house.

We offer a set of electrical symbols: sockets, switches, light points, electrical panels, etc.

How to position your first electrical element?

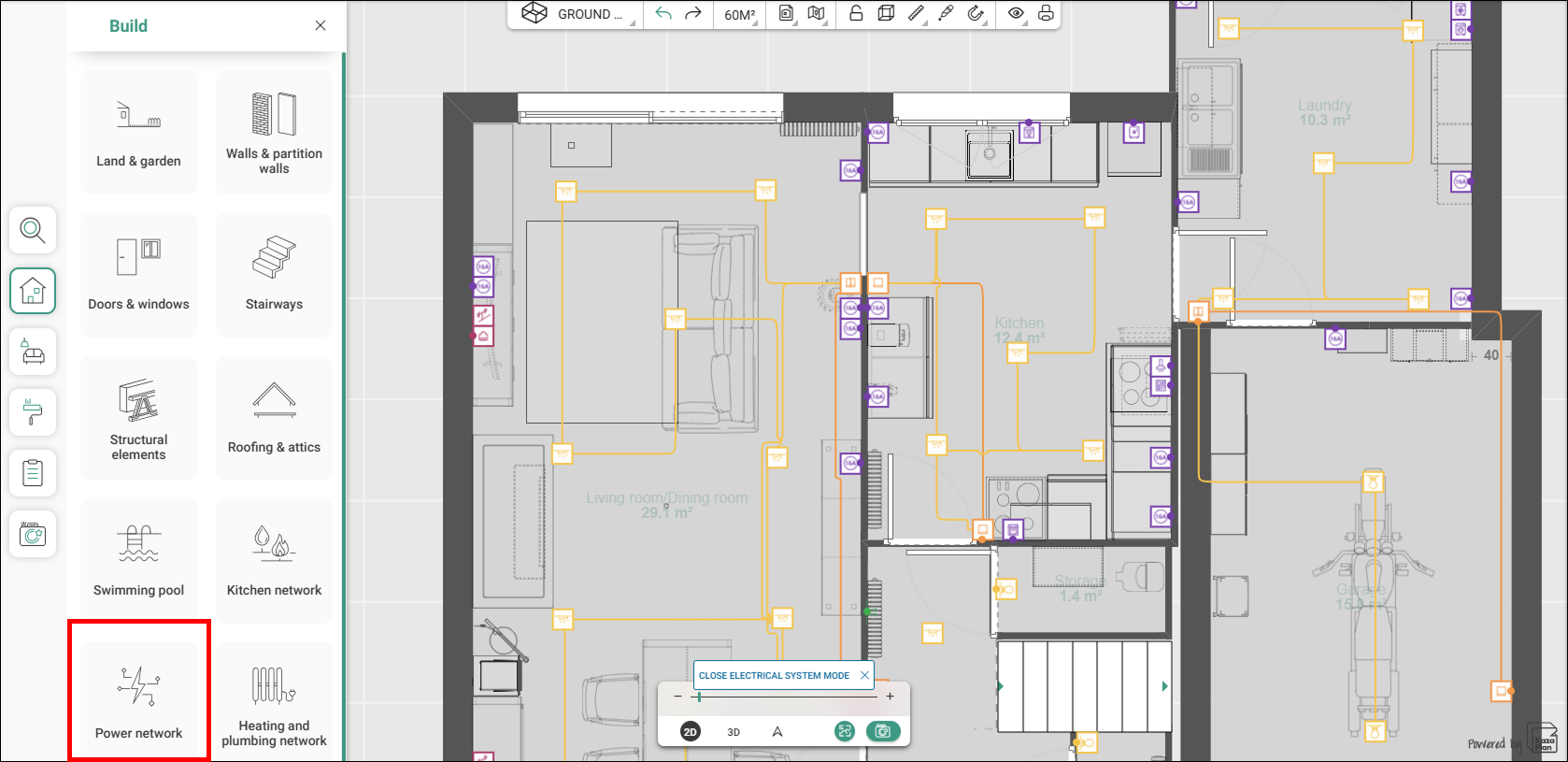

To create your electrical plan, click on the menu:

- Build

- - Electrical Network

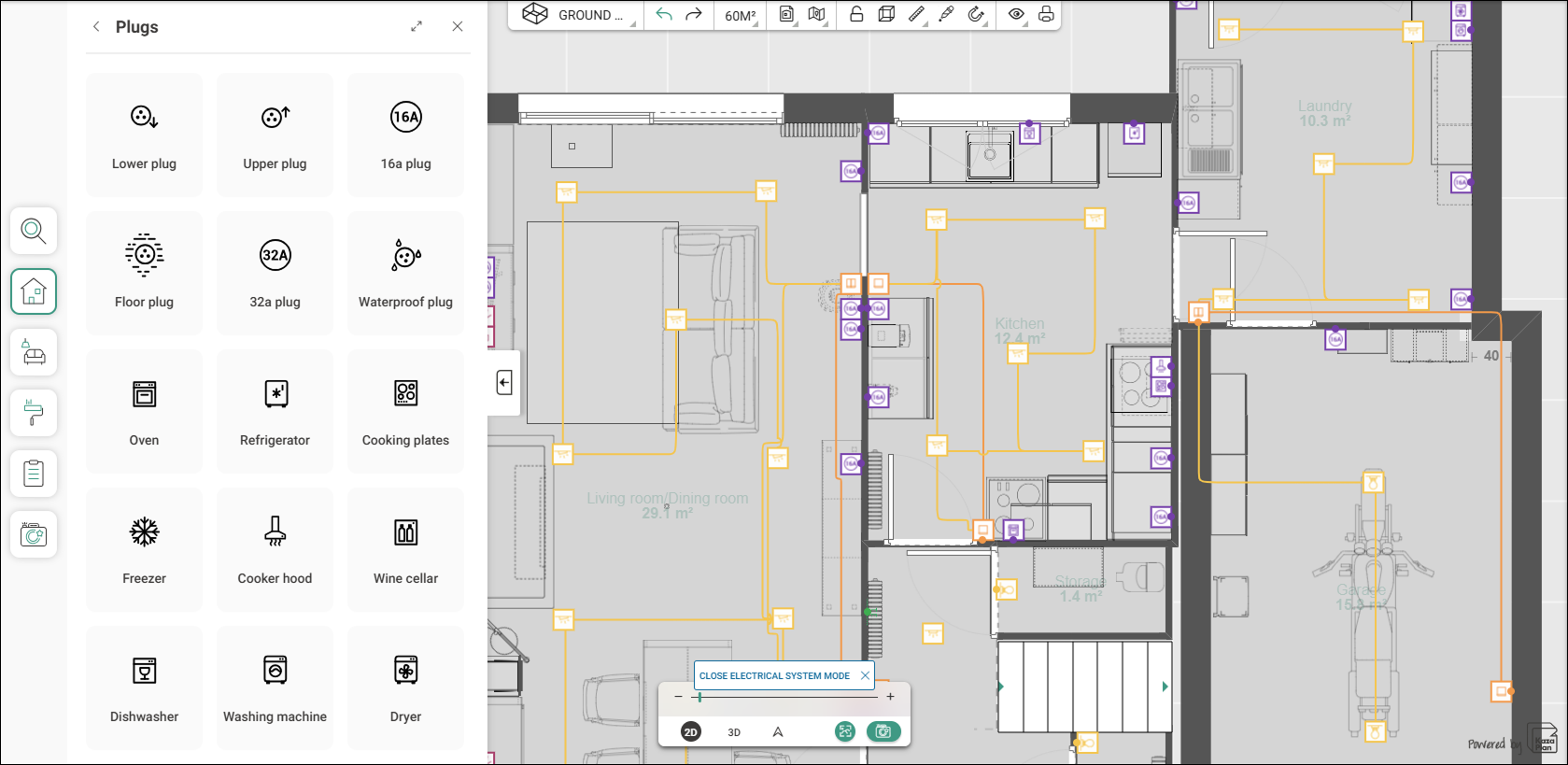

Add all your electrical elements:

- Sockets

- Multimedia sockets

- Switches

- Light points

- Electrical panel

- Others: shutter, radiator...

How to position your second electrical element?

- Method 1: Duplicate the first element

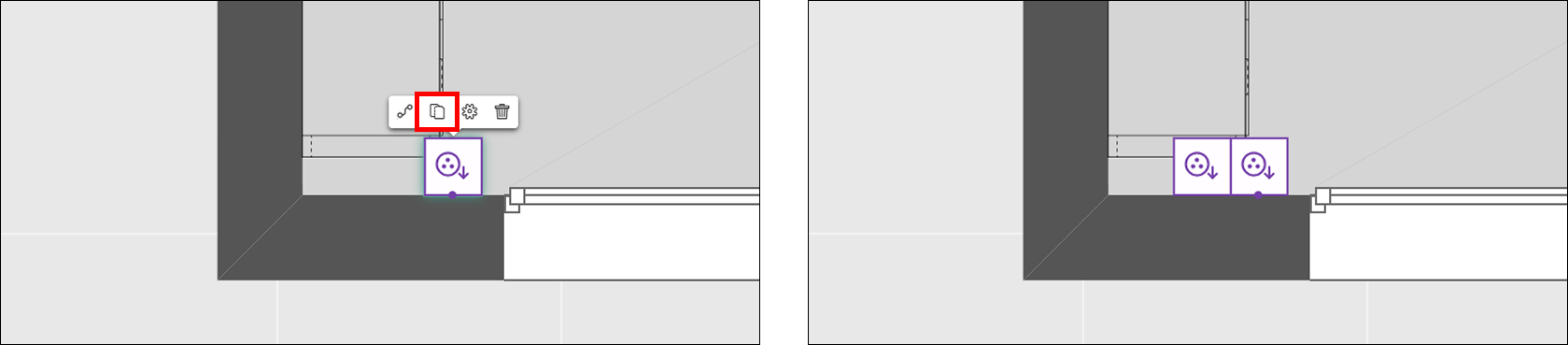

By duplicating them, click on the icon below:

It is possible to group electrical elements at the same height, for example, high sockets together or low sockets together.

 It is impossible to group a low socket with a high socket.

- Method 2: Attach an element

If you place an element next to a first one, the same grouping concept is suggested to you.

How to connect electrical elements?

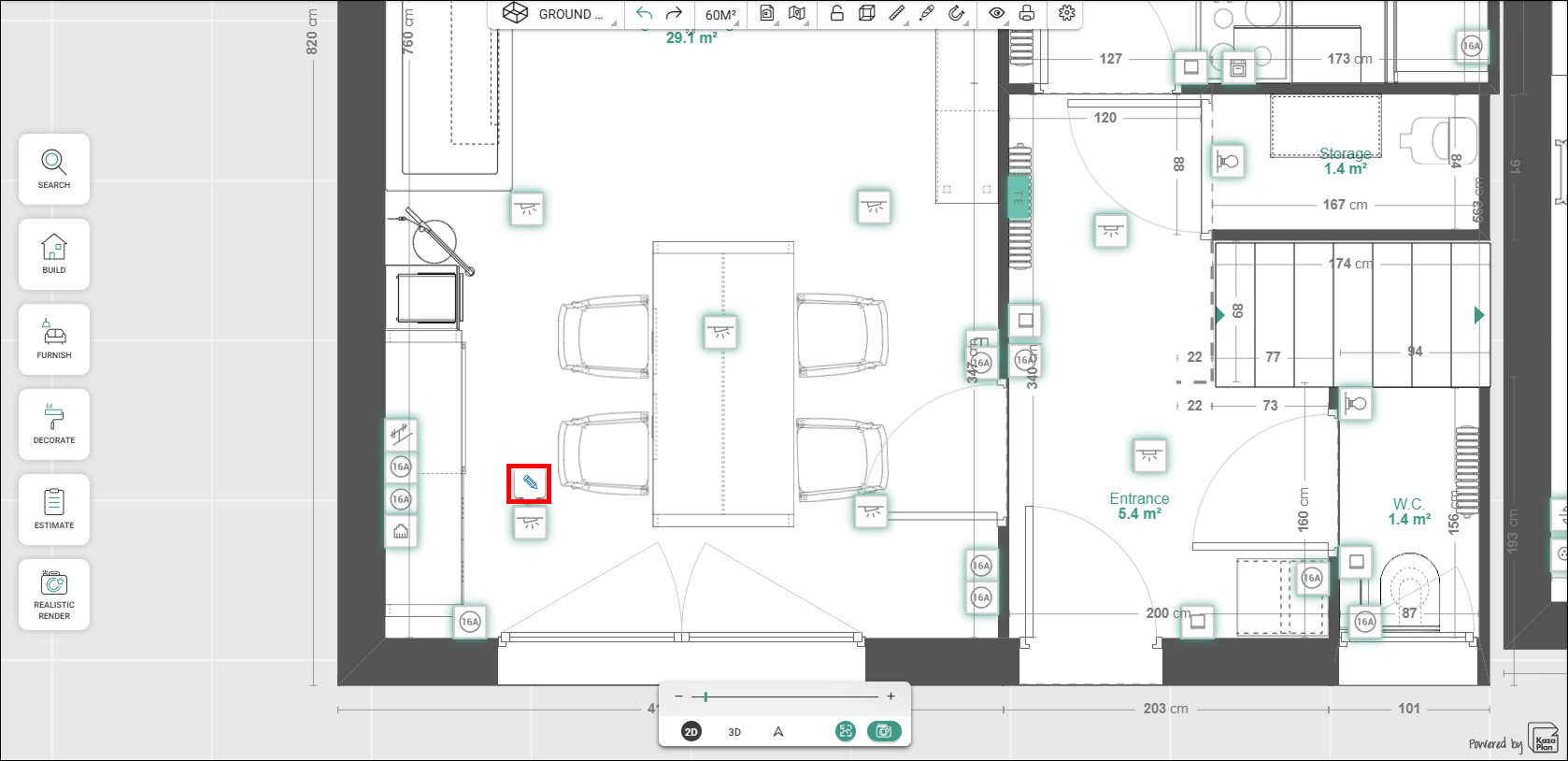

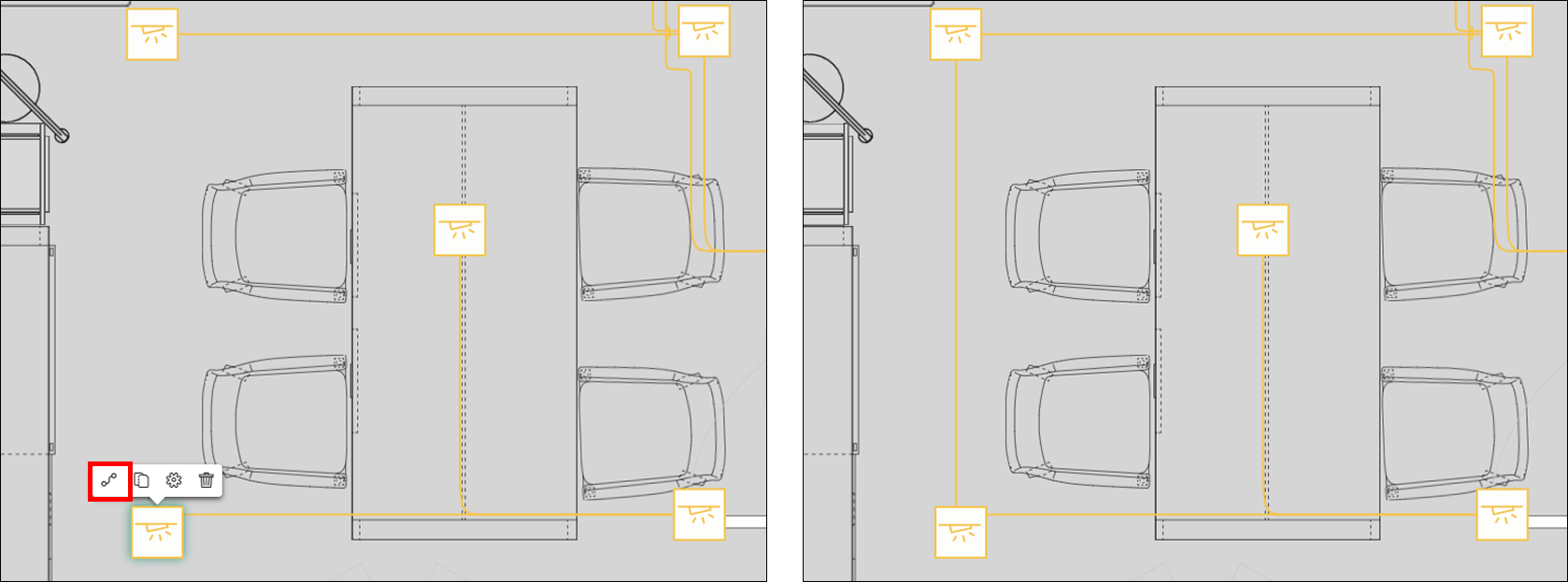

The icon below will allow you to connect to the switch, a non-continuous line will appear when you hover over your electrical elements until you click on a switch

When the connection is made, the line will become continuous.

How to deactivate the "electrical network" mode?

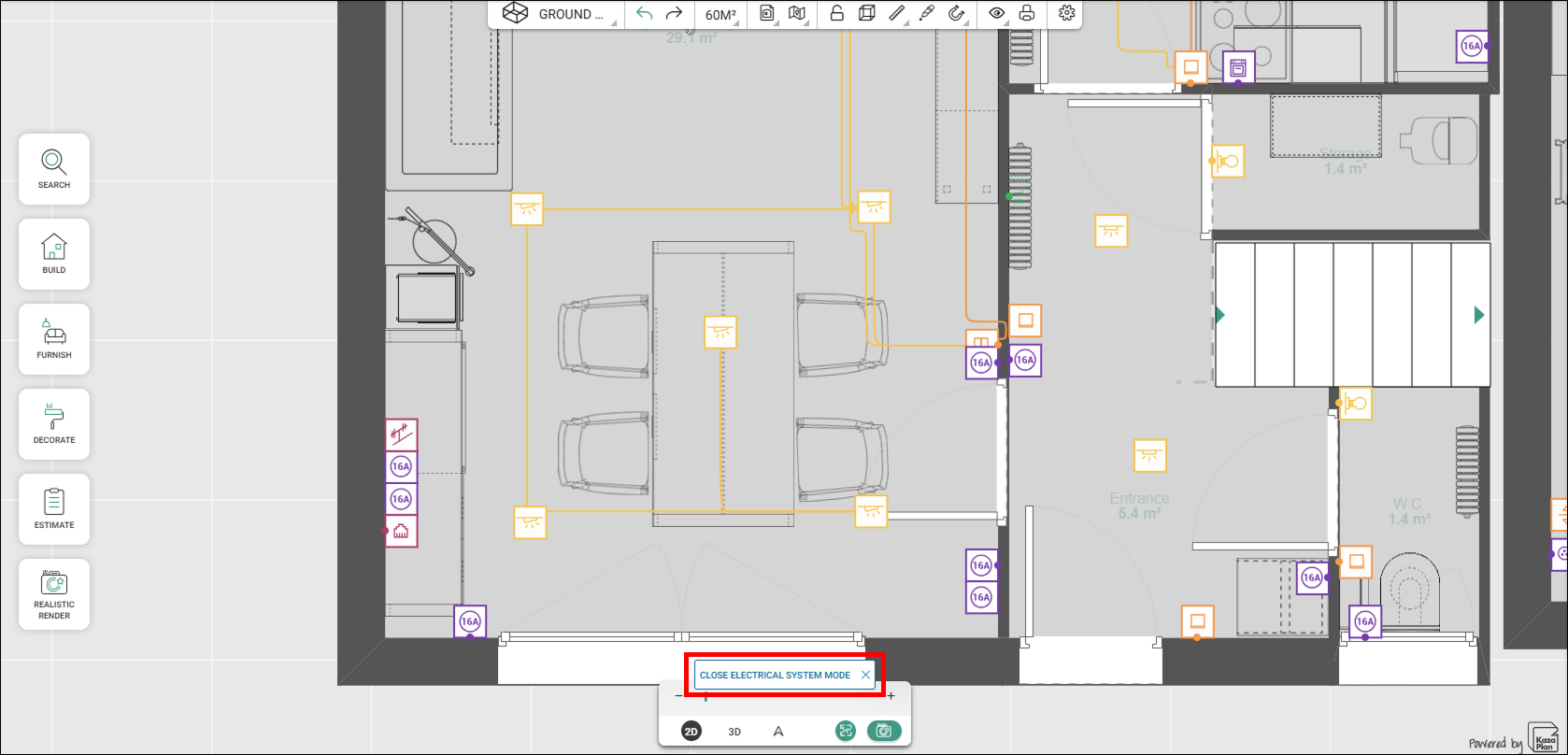

You can exit this drawing mode by clicking on "close the electrical system mode":

How to reactivate the "electrical network" mode?

When you have placed all your electrical elements, you will be able to connect them, to do so click on a light point and on "access the electrical system" to enter the mode again:

How to manage the display of electrical elements outside electrical mode?

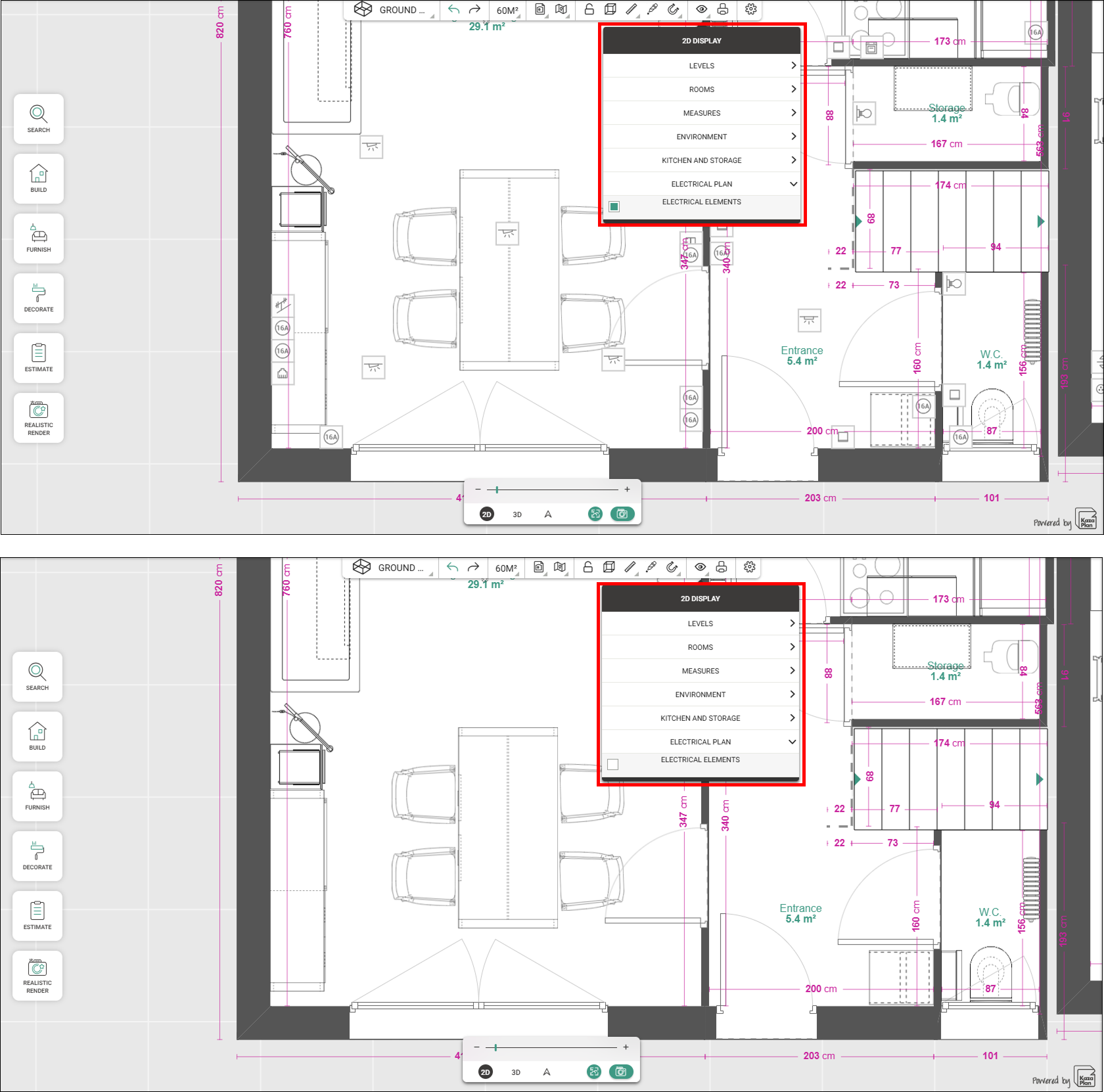

When you exit the electrical menu, you can choose not to display the electrical plan by switching to 2D view, and click on "show electrical elements" to disable them.

When out of the mode, the elements are grayed out, and when in electrical mode, the elements are colored.

How to print my electrical diagram?

- Method 1: Take a screenshot of my plan

• Activate the "Electrical Network" mode
• Take a 2D screenshot from the navigation bar.

> more information on plan screenshots

- Method 2: Print my electrical plan

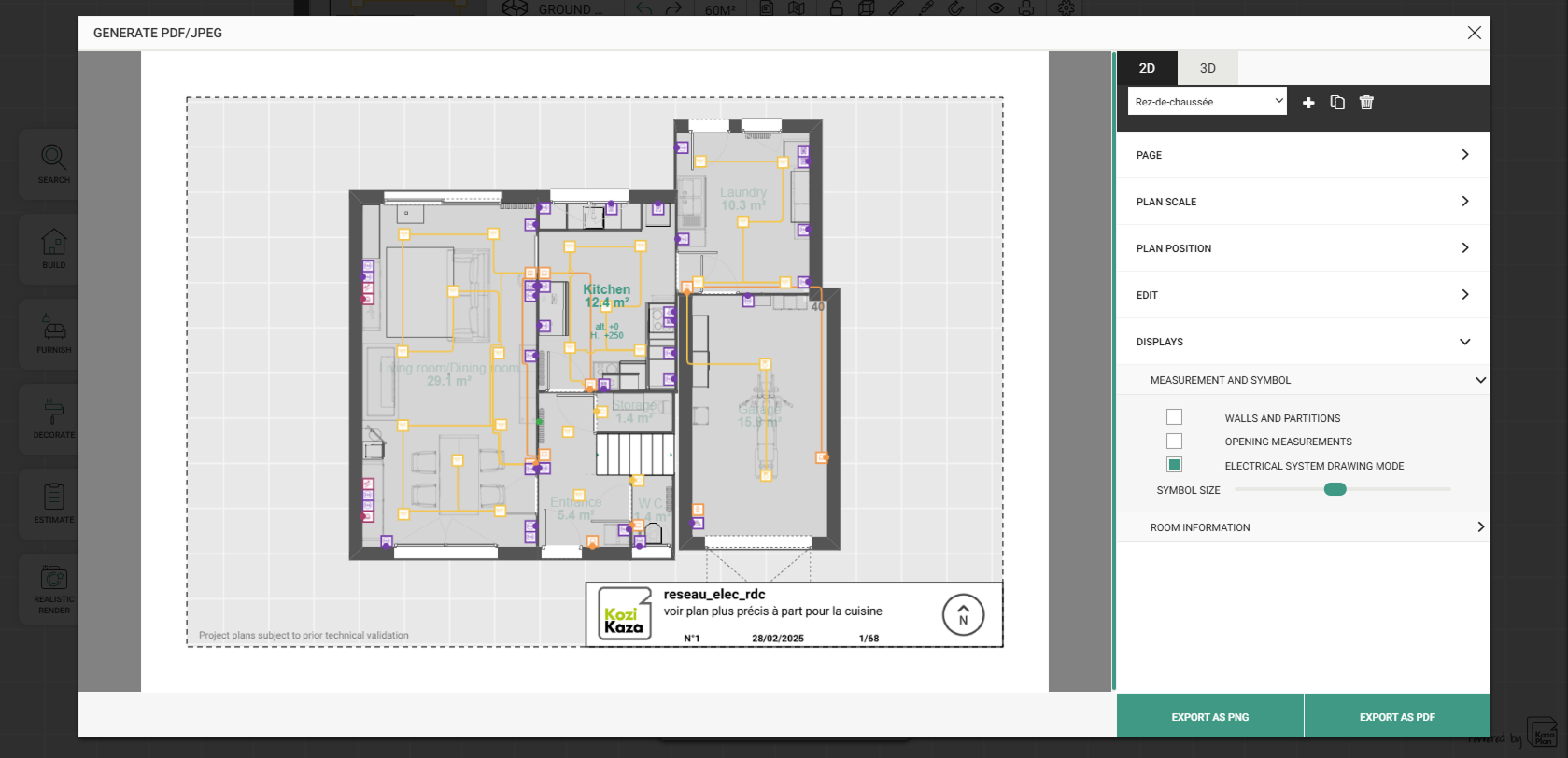

Click on the "printer" button in the toolbar

On the 2D tab you can modify the display to choose only electrical mode, it is also possible to enlarge the symbols for better visibility.
