CUSTOMIZE a cabinet

A kitchen cabinet is a composition of different elements:

• The fronts, handles, and countertop are selected in the style panel.

• Other components of the cabinet, such as appliances, accessories, and hardware, are customized in the cabinet details

> More information on style customization

Step-by-step to customize cabinet components

Step 1: Select your cabinet

-- Selecting an isolated cabinet

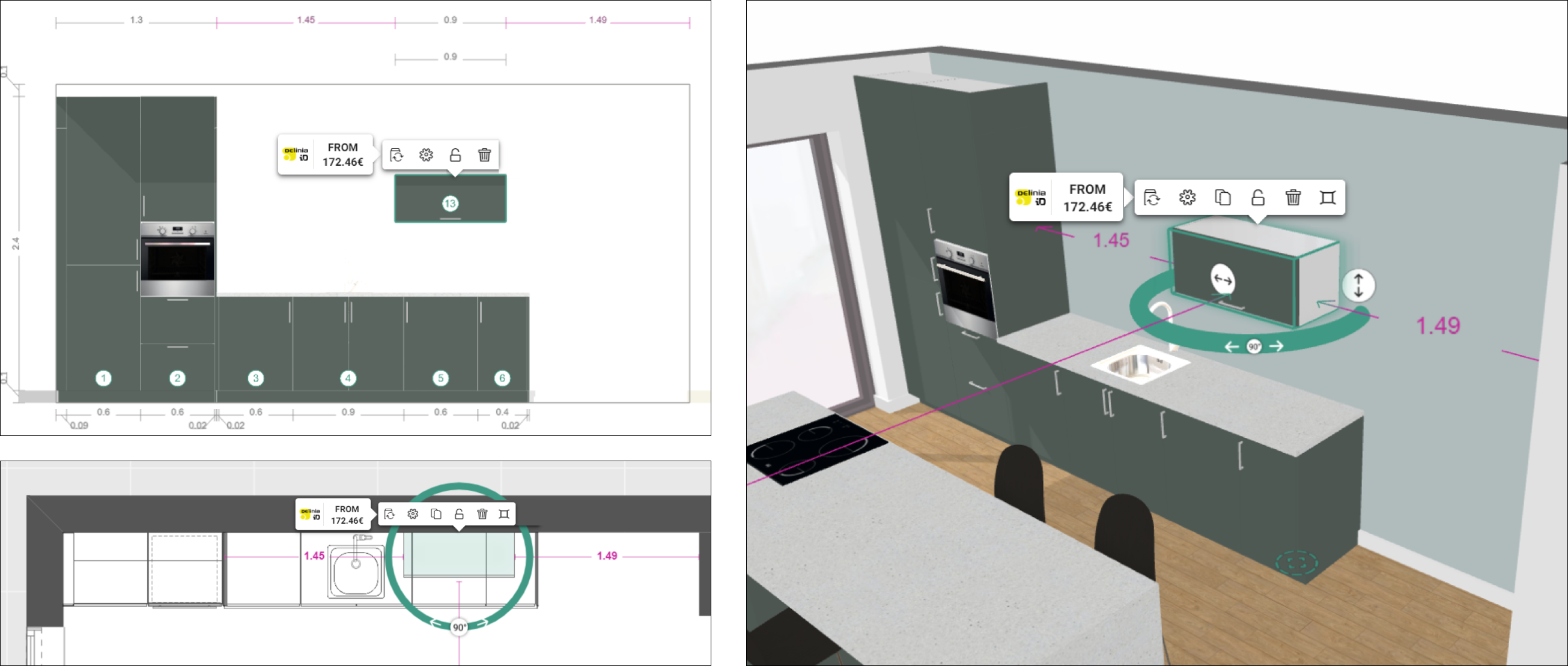

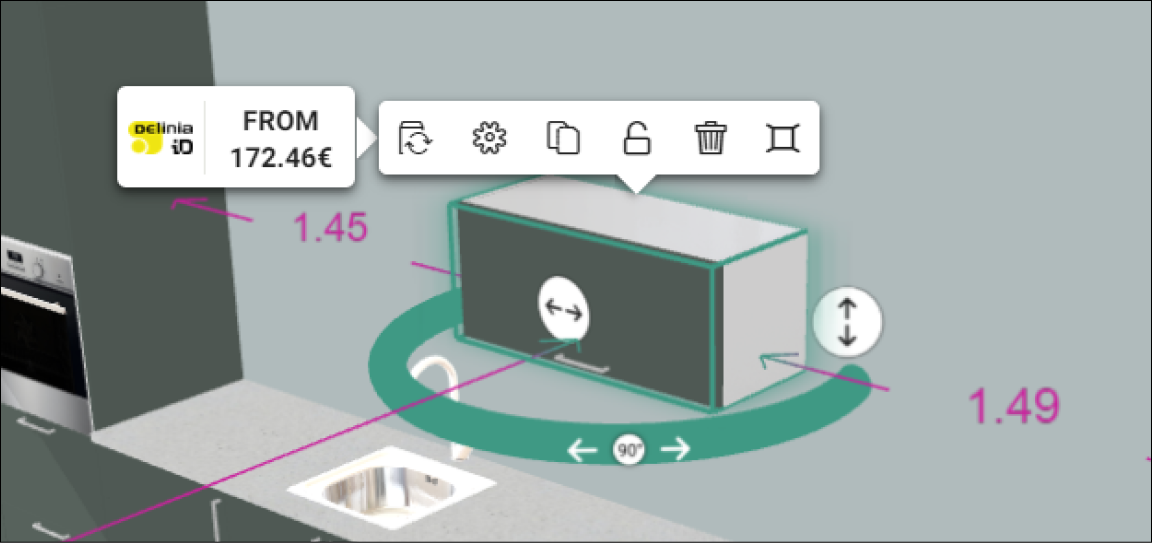

In 2D, 3D, or frontal view: click on your cabinet.

A green highlight will appear: your cabinet is selected.

Its context menu will appear with its price and various editing options:

• replace with another cabinet
• access cabinet properties
• duplicate cabinet
• lock cabinet
• delete cabinet
• access frontal view

-- Selecting a cabinet in a cabinet set

--- Solution 1: Selection in the plan

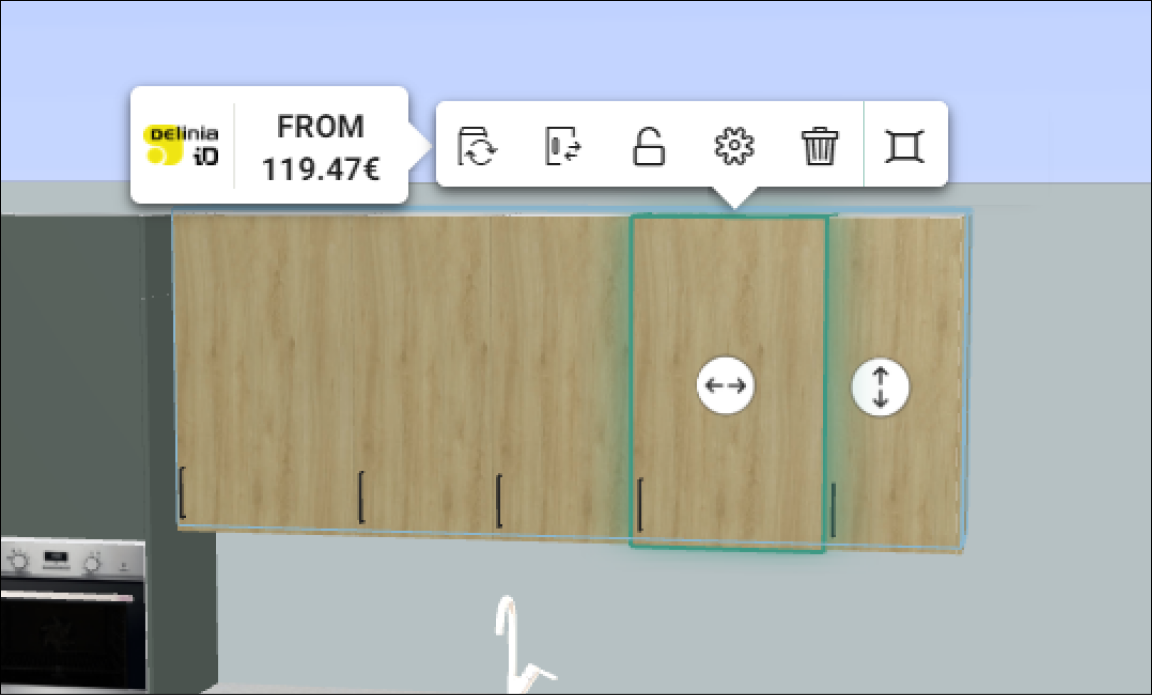

In 2D, 3D, or frontal view: double-click on your cabinet.

- On the 1st click, the cabinet set is selected.

- On the 2nd click, the cabinet is selected.

A green highlight will appear: your cabinet is selected.

Its context menu appears with its price and various editing options:

• replace one cabinet with another
• change the direction of doors
• lock the cabinet
• access cabinet properties
• delete the cabinet
• access frontal view

--- Solution 2: Selection from the linear context menu

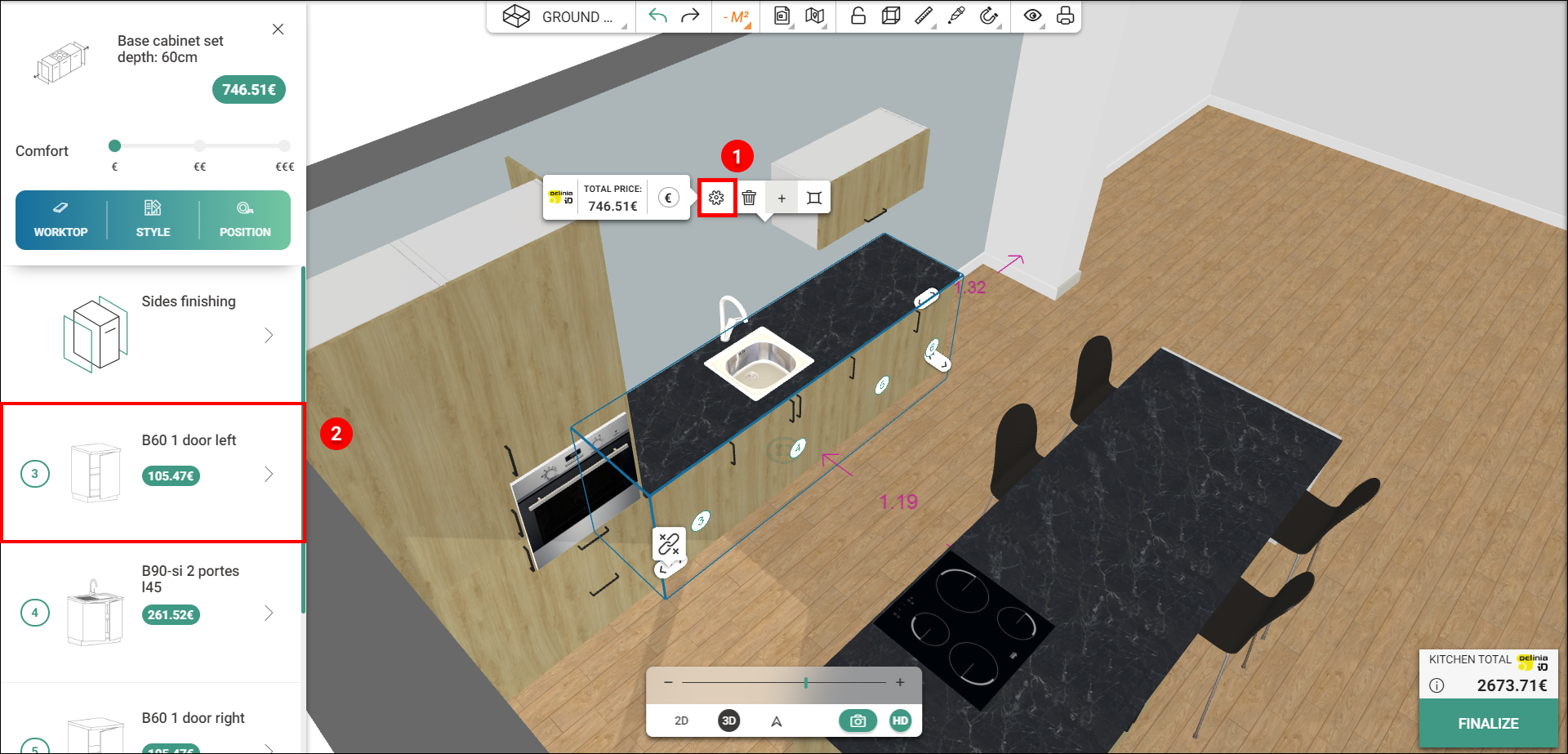

- 1. Select the cabinet set by clicking on it. Click on the "properties" icon in the cabinet's context menu. The settings panel appears on the left side of your screen, with the list of cabinets it includes.

- 2. Click on the cabinet you want to edit in the cabinet set's list

• the cabinet is  selected in the plan (2D, 3D, or frontal view)
• the cabinet's settings panel appears

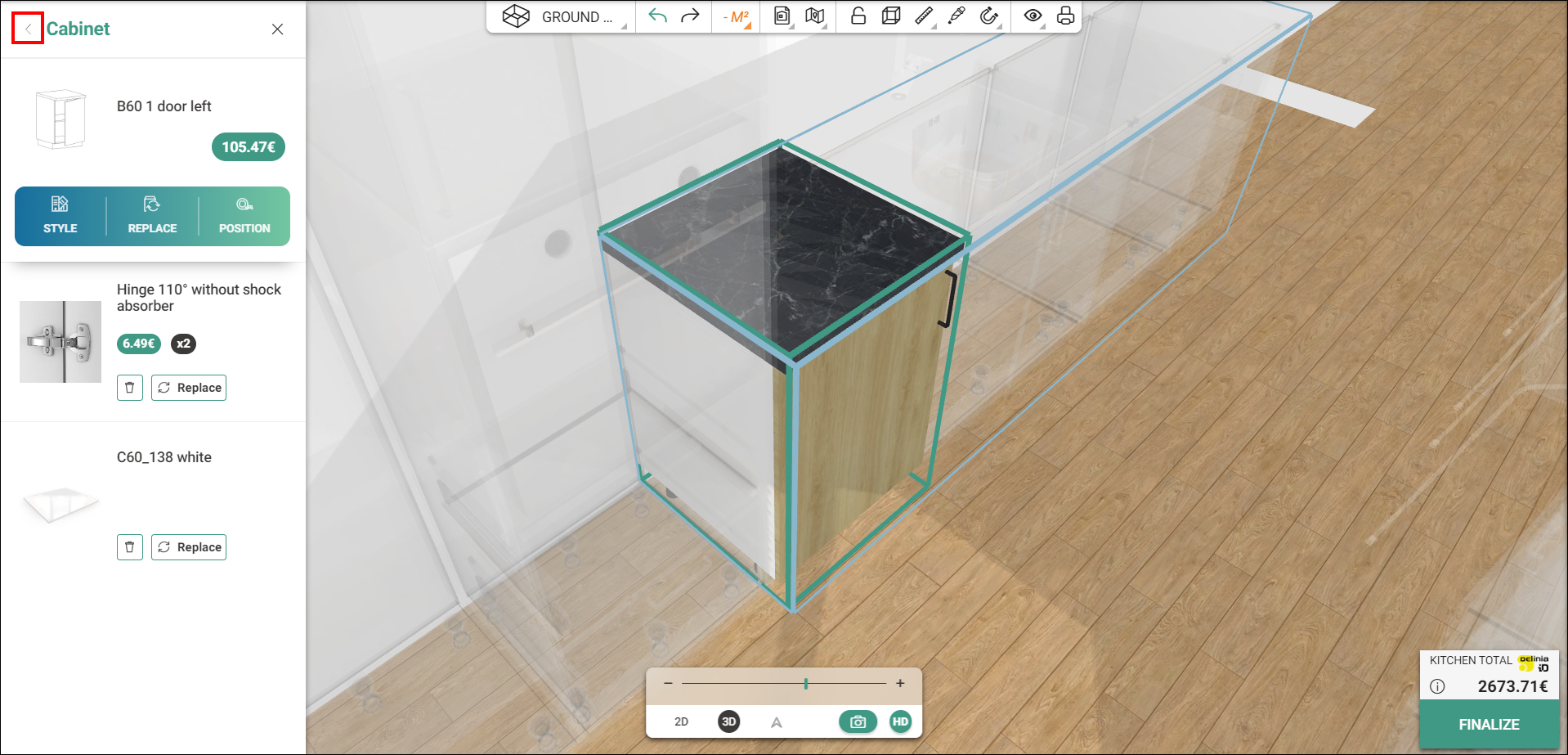

Tips: In the settings panel, you can navigate  from a cabinet to the cabinet set using this list and the back arrow.

Step 2: Open the cabinet's settings panel

- Click on the "Properties" icon in the context menu of your cabinet set to open the settings panel.

The cabinet's settings panel appears with the list of its components.

Step 3: Delete a component of a cabinet

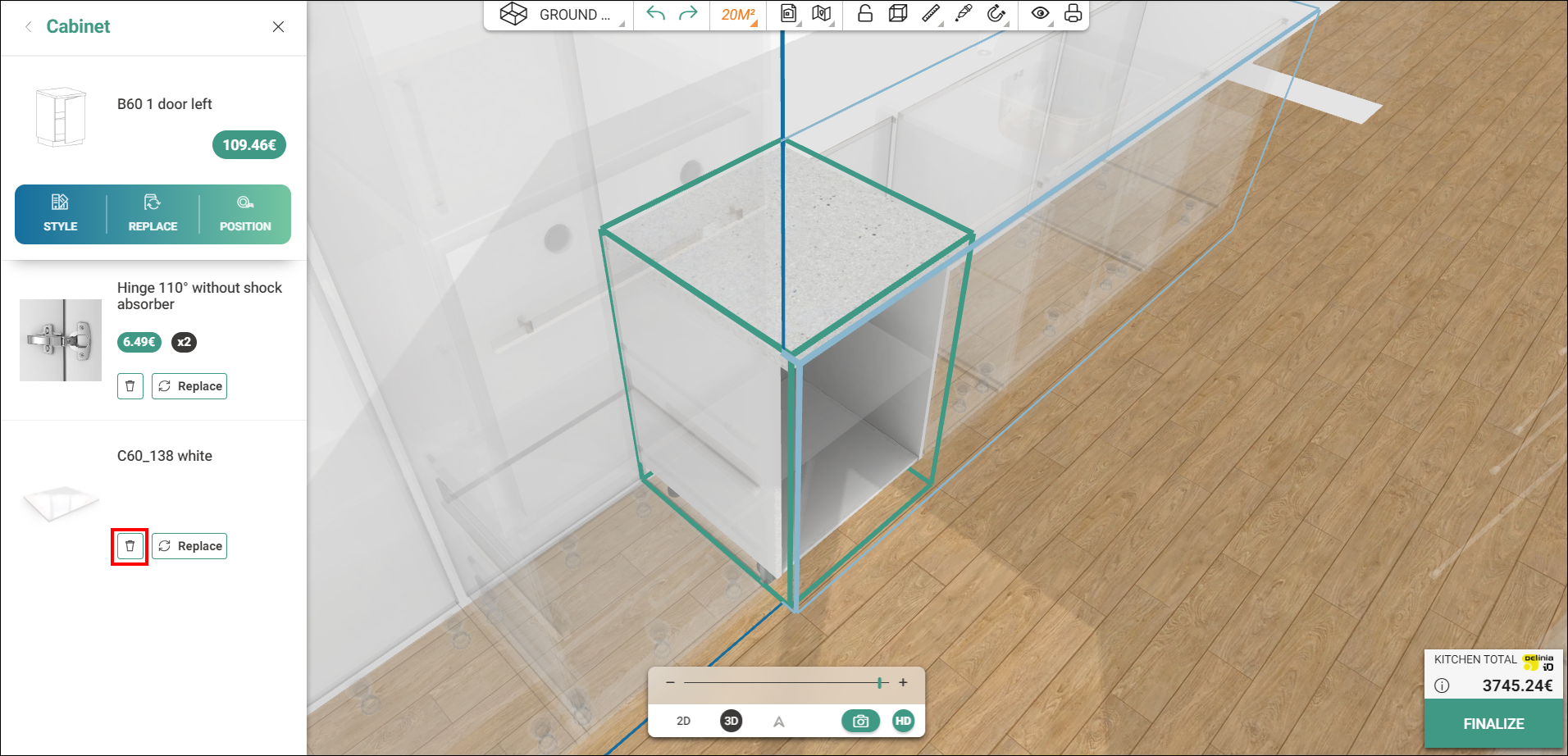

- Click on the "Delete" icon of the component to remove it.

The component is removed from the list and your model.

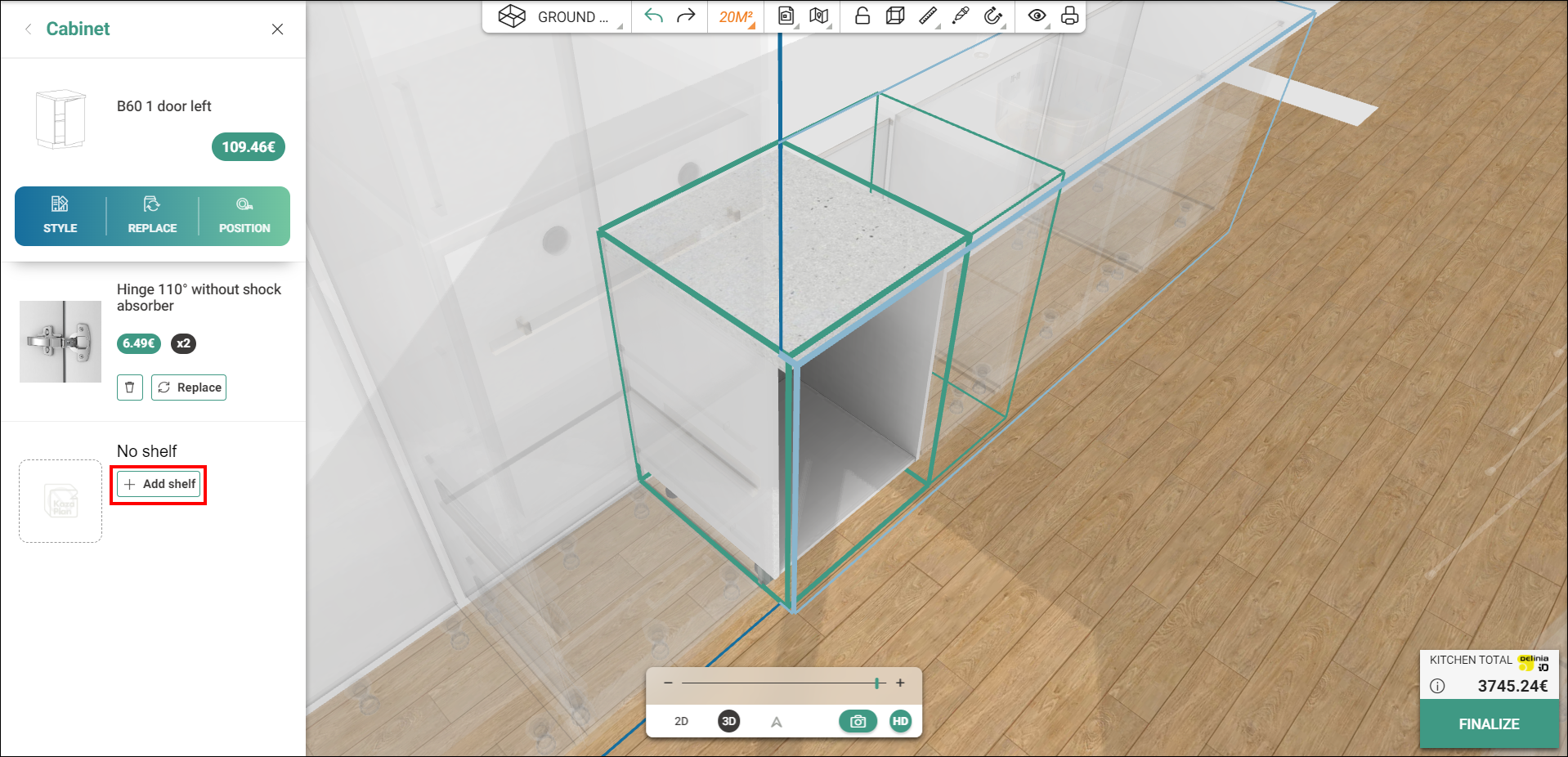

- Click "add a shelf" to add a removed element

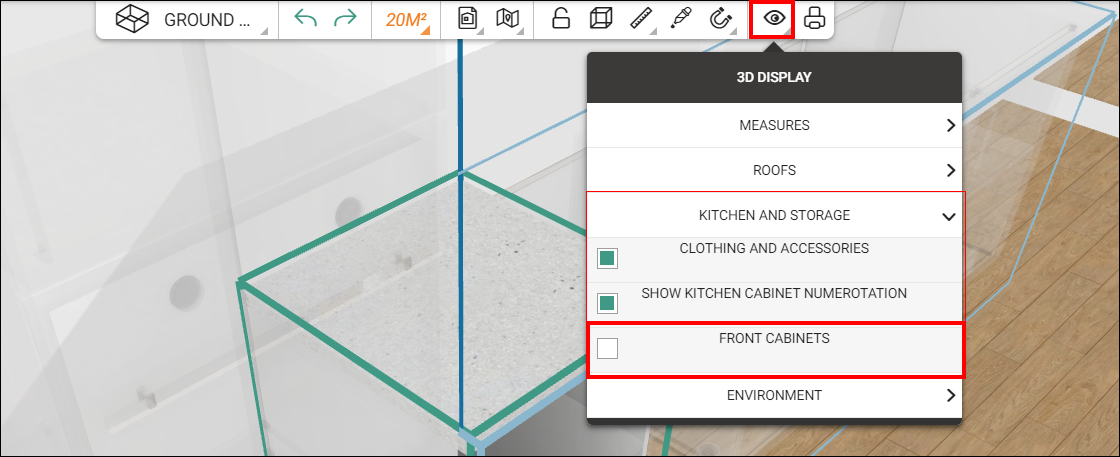

Tips: you can hide the fronts of your cabinets to visualize their arrangement.

> more information

Step 4: Customize the components

You can   replace each component with another.

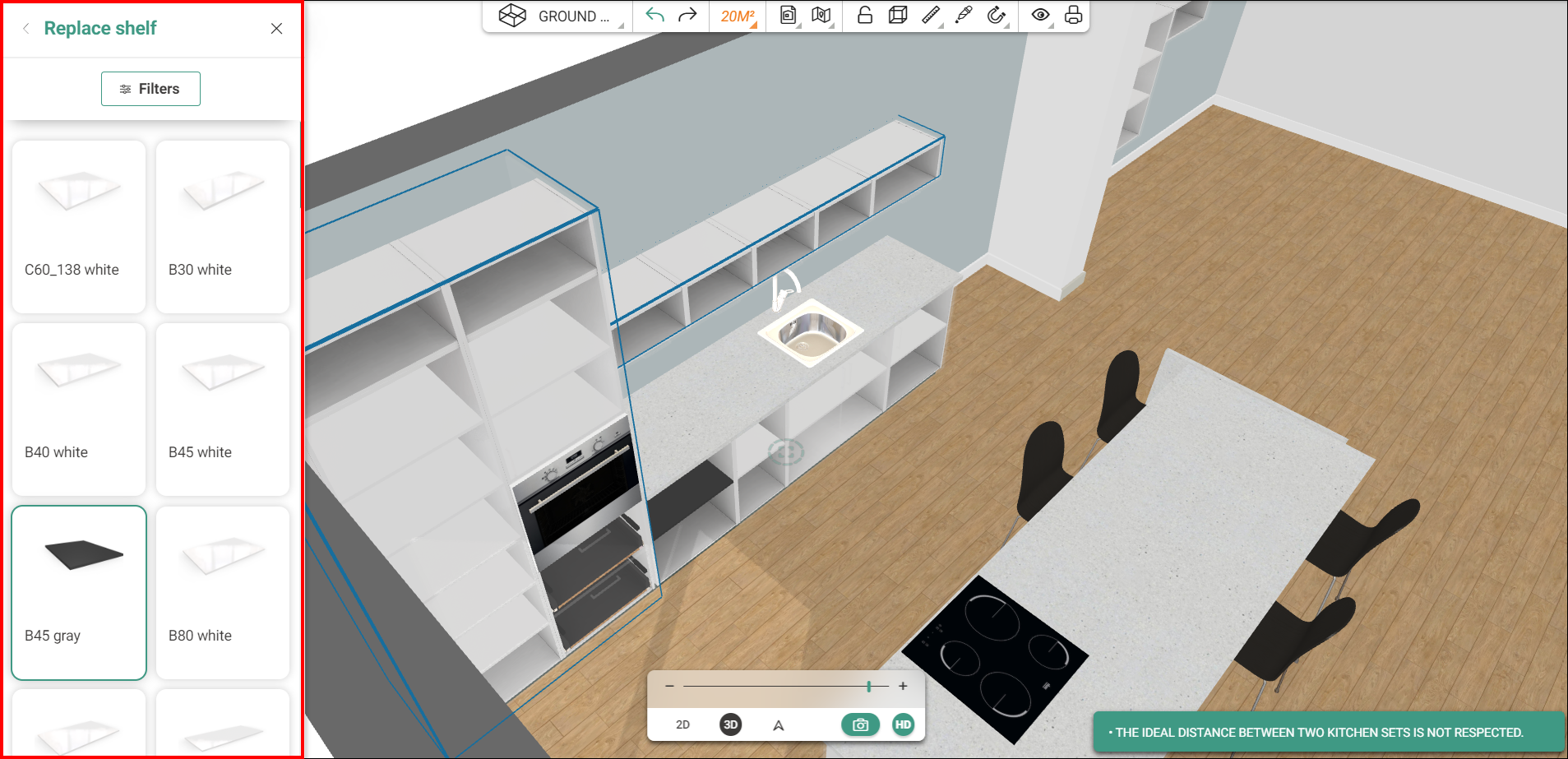

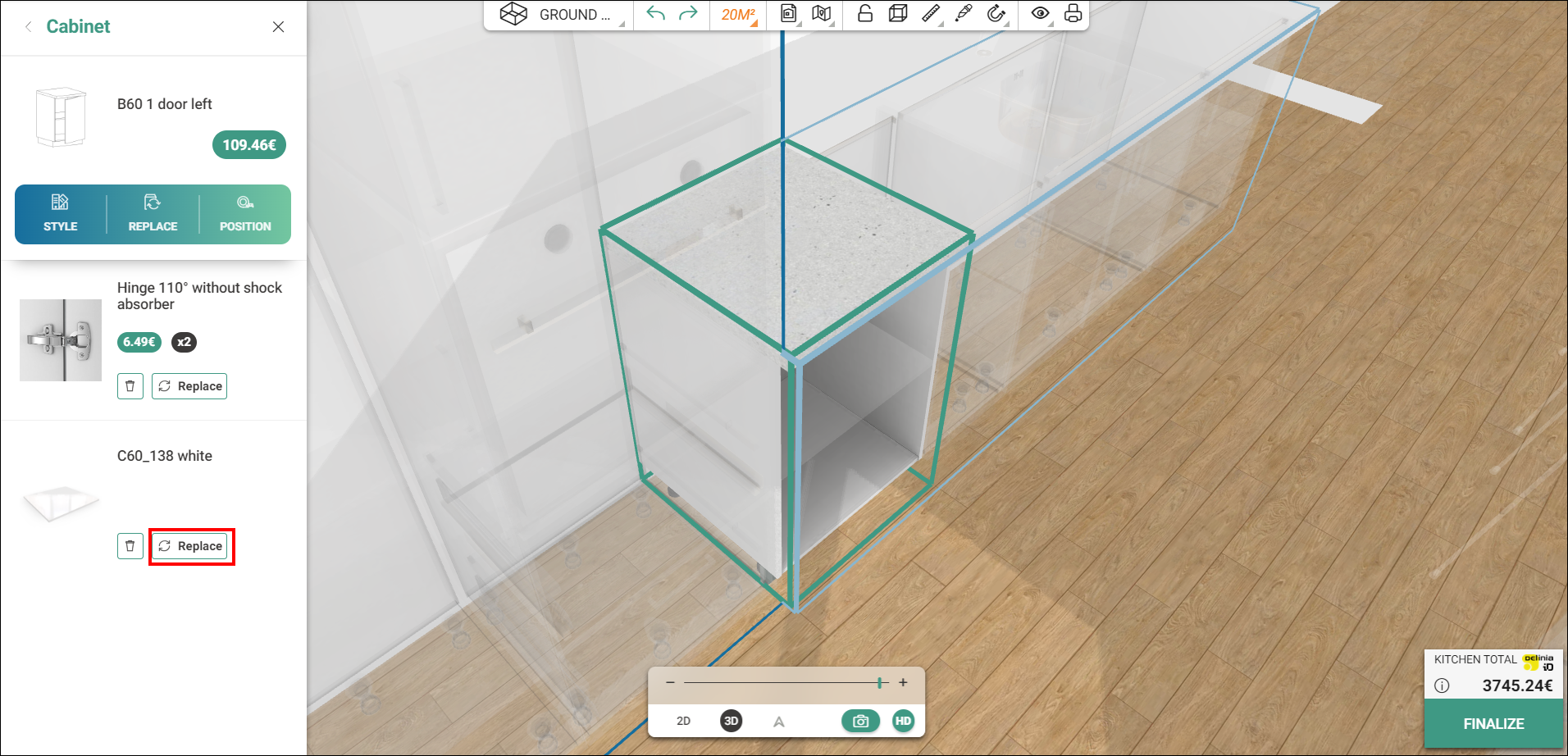

- 1. Click on  the "replace" button of the component.

A list of suggested components will appear.

- 2. Filter if  necessary

- 3. Select the desired component

Step 5: Add complementary products

Development in progress
