With the extension of your kitchen cabinet sets, the direction of the doors has been optimized.
However, if you want to change the opening direction of a cabinet, it can be easily done with a direct replacement by clicking on the "change direction" icon of the cabinet.
Step by Step to Change the Opening Direction of a Cabinet
Step 1: Select Your Cabinet
-- Selecting an Isolated Cabinet

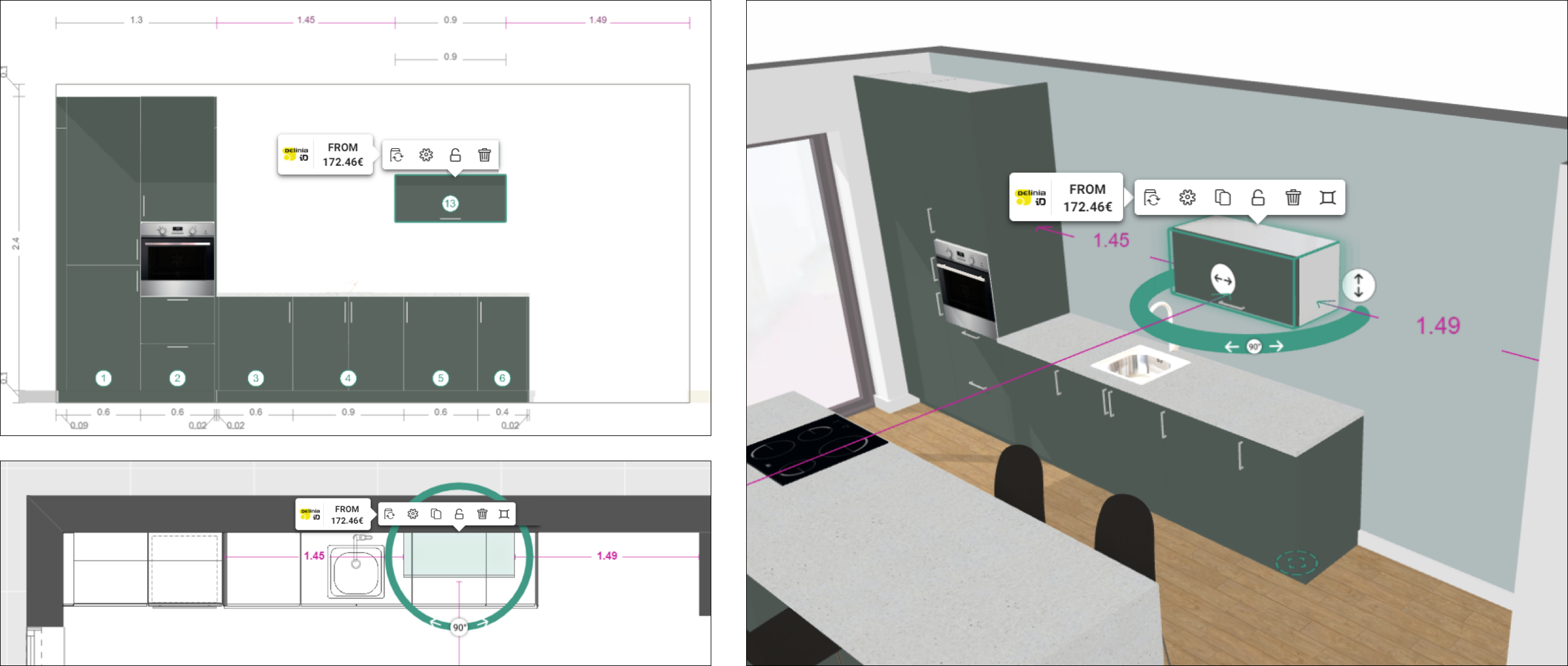

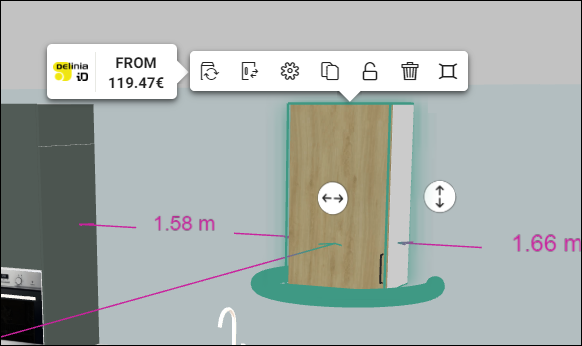

In 2D, 3D, or front view: click on your cabinet.
A green highlight appears: your cabinet is selected.
Its context menu is displayed with its price and various editing options:
- replace one cabinet with another
- change the door direction
- access cabinet properties
- duplicate the cabinet
- lock the cabinet
- delete the cabinet
- access front view
-- Selecting a Cabinet in a Cabinet Set
--- Solution 1: Selection in the Plan

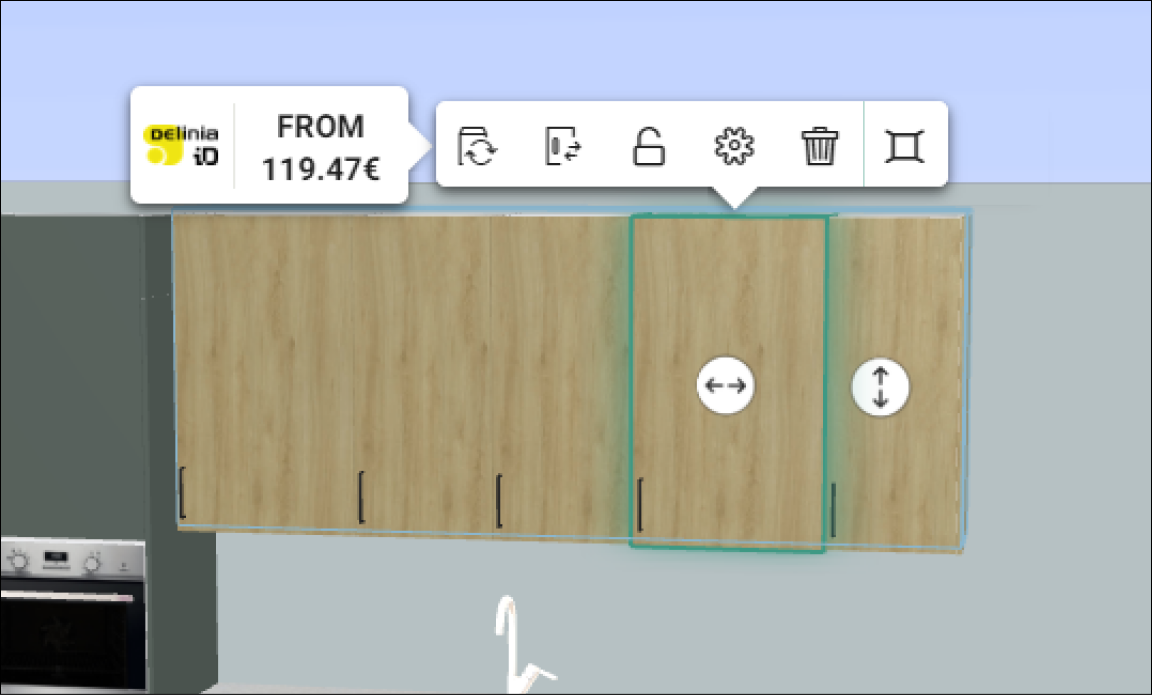

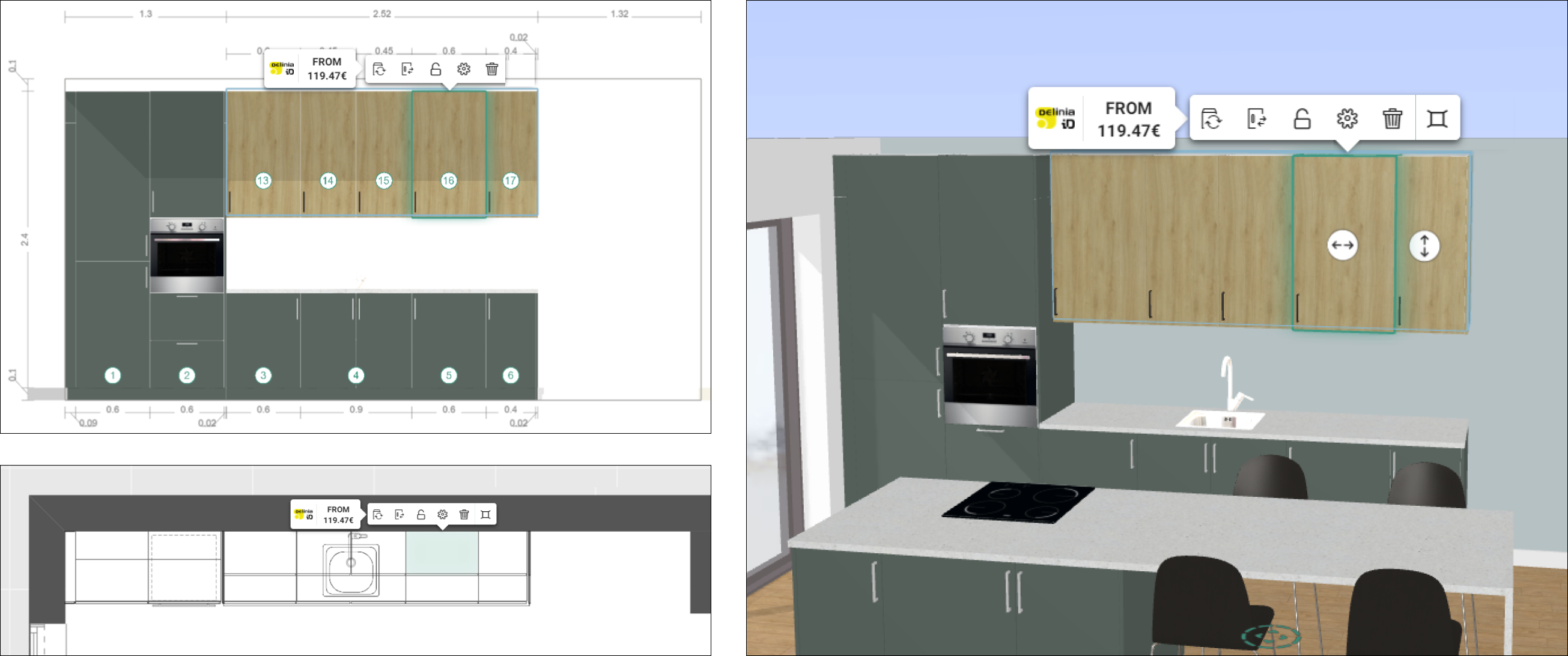

In 2D, 3D, or front view: double-click on your cabinet.
- On the 1st click, the cabinet set is selected.
- On the 2nd click, the cabinet is selected
A green highlight appears: your cabinet is selected.
Its context menu is displayed with its price and various editing options:
- replace one cabinet with another
- change the door direction
- lock the cabinet
- access cabinet properties
- delete the cabinet
- access front view
Step 2: Change the Opening Direction of a Cabinet

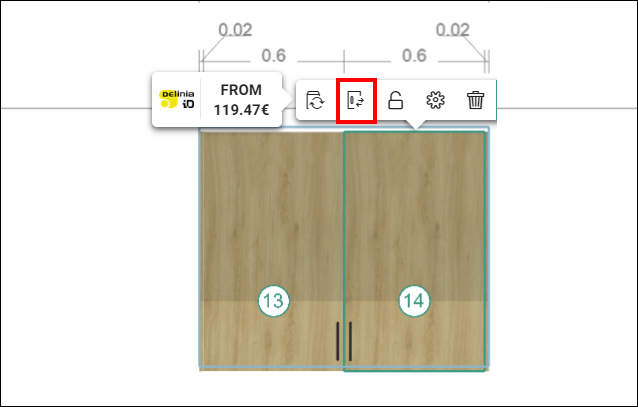

- In 2D, 3D, or front view: click on the "change direction" icon in the cabinet's context menu
- Note that the door has changed its opening direction. The cabinet's name has been updated in the cabinet set's settings.
