MOVE an isolated cabinet

You have placed a cabinet set from the catalog: it can be moved within the plan like any other object.

There are several methods to move it in your room:

• mouse movement
• editing its position dimensions
• editing its position in the settings panel
• keyboard movement

Step by step to move an isolated cabinet set

Step 1: Select your cabinet set

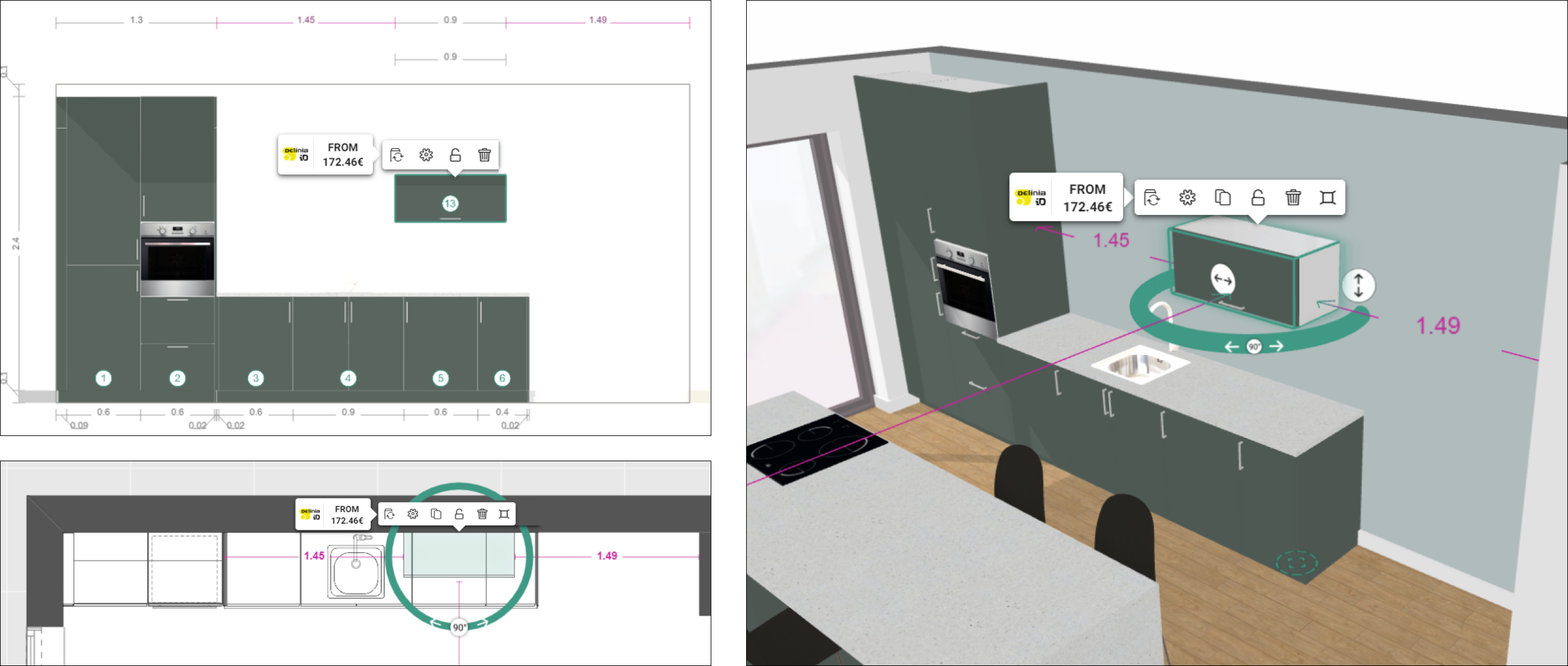

In 2D, 3D, or front view: click on your cabinet set.

A green highlight will appear: your cabinet set is selected.

Its position dimensions are displayed. They are editable.

Its rotation circle appears if the set is not positioned against a wall.

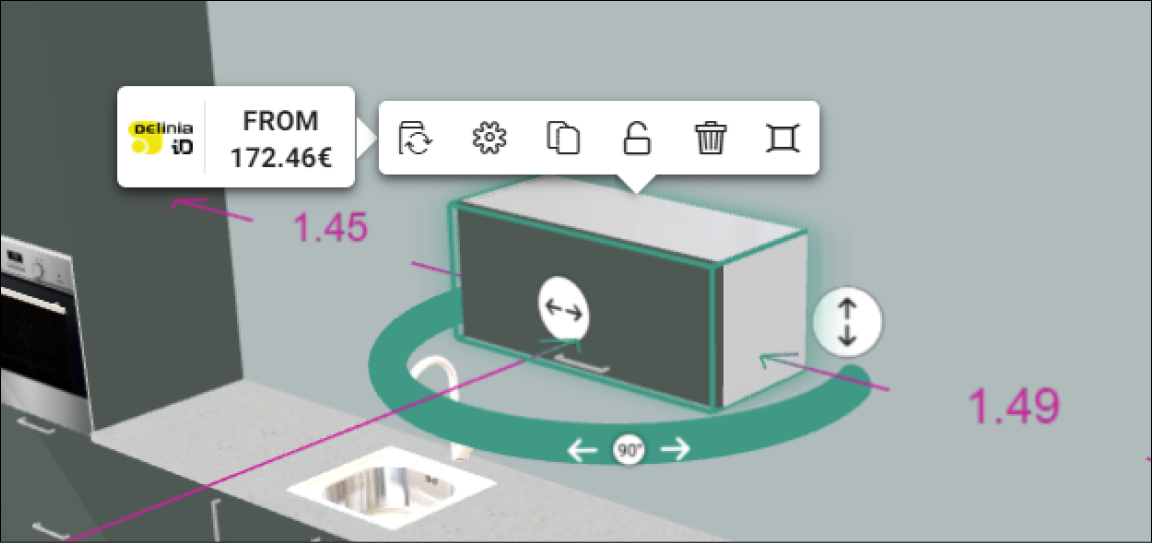

Its movement arrows appear:

• horizontal movement arrow for all sets
• vertical movement arrow for wall cabinets

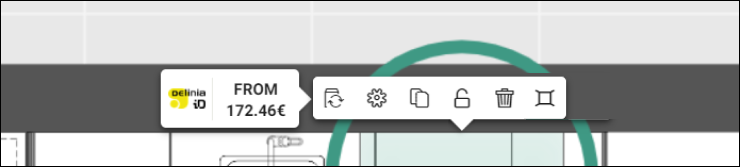

Its contextual menu appears with its price and various editing options:

• replace set with another
• access set properties
• duplicate set
• lock set
• delete set
• access front view

Step 2: Move your isolated cabinet set

Choose one of these 4 movement methods:

Solution 1: Mouse Movement

- In both 2D and 3D, to move a set, click, drag, and drop the selected set to the desired location.

Note: If you move a set from one wall to another with activated magnetism, it automatically flips if necessary.

- In front view: this mouse movement solution is not available.

Solution 2: Editing Position Dimensions

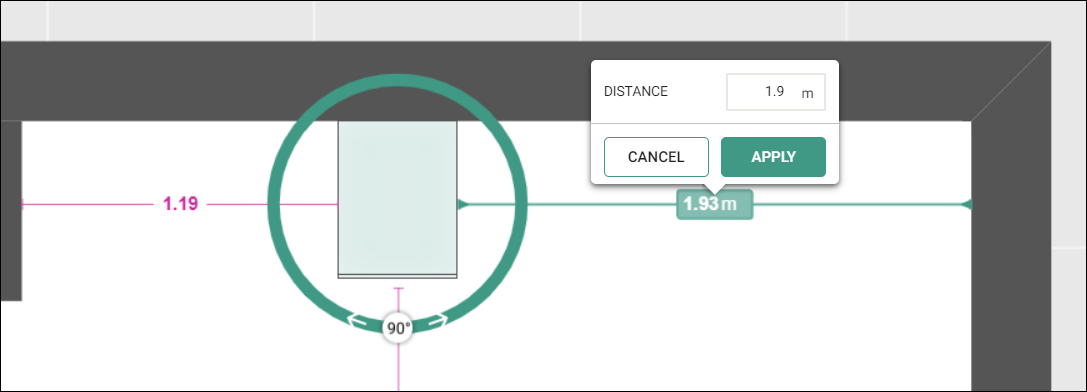

- In both 2D and 3D, click on a position dimension, an editing modal will open. You can enter the desired value.

NB: The display of these measurements is configurable in the toolbar:

• Manage display of 2D elements > Measurements > Object position
• Manage display of 3D elements > Measurements > Object position

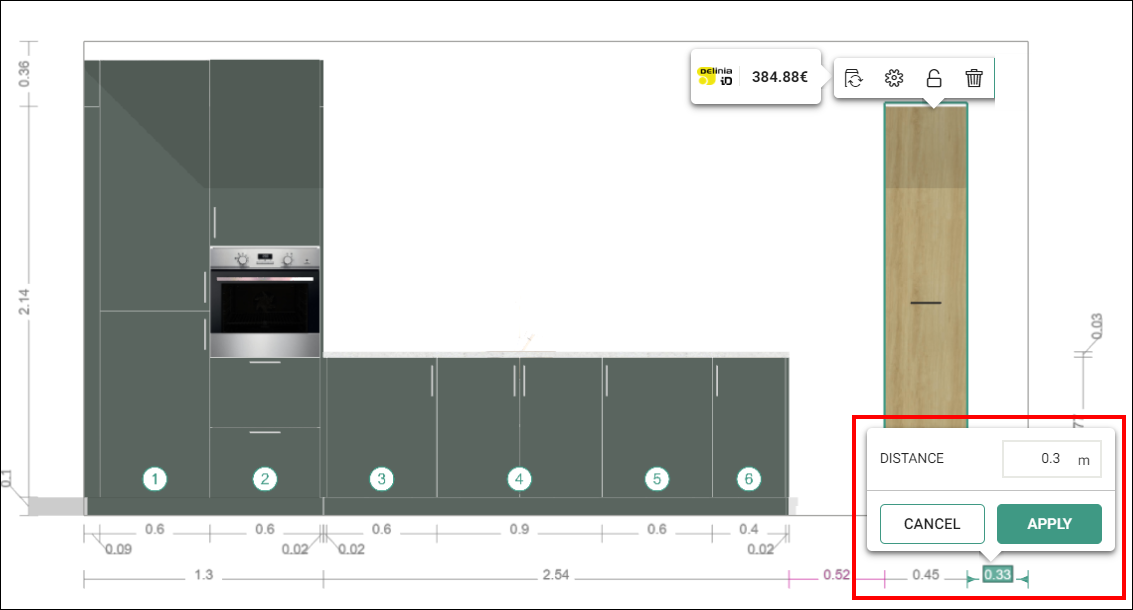

- In front view, click on the pink position dimensions, they can be edited in the same way.

> more information

NB: The display of these measurements in front view is configurable in the toolbar:

• Manage display of elements in front view > Measurements

Solution 3: Editing Position in the SETTINGS PANEL

In both 2D and 3D and in front view,

[current settings panel]

[settings panel starting from January 2024]

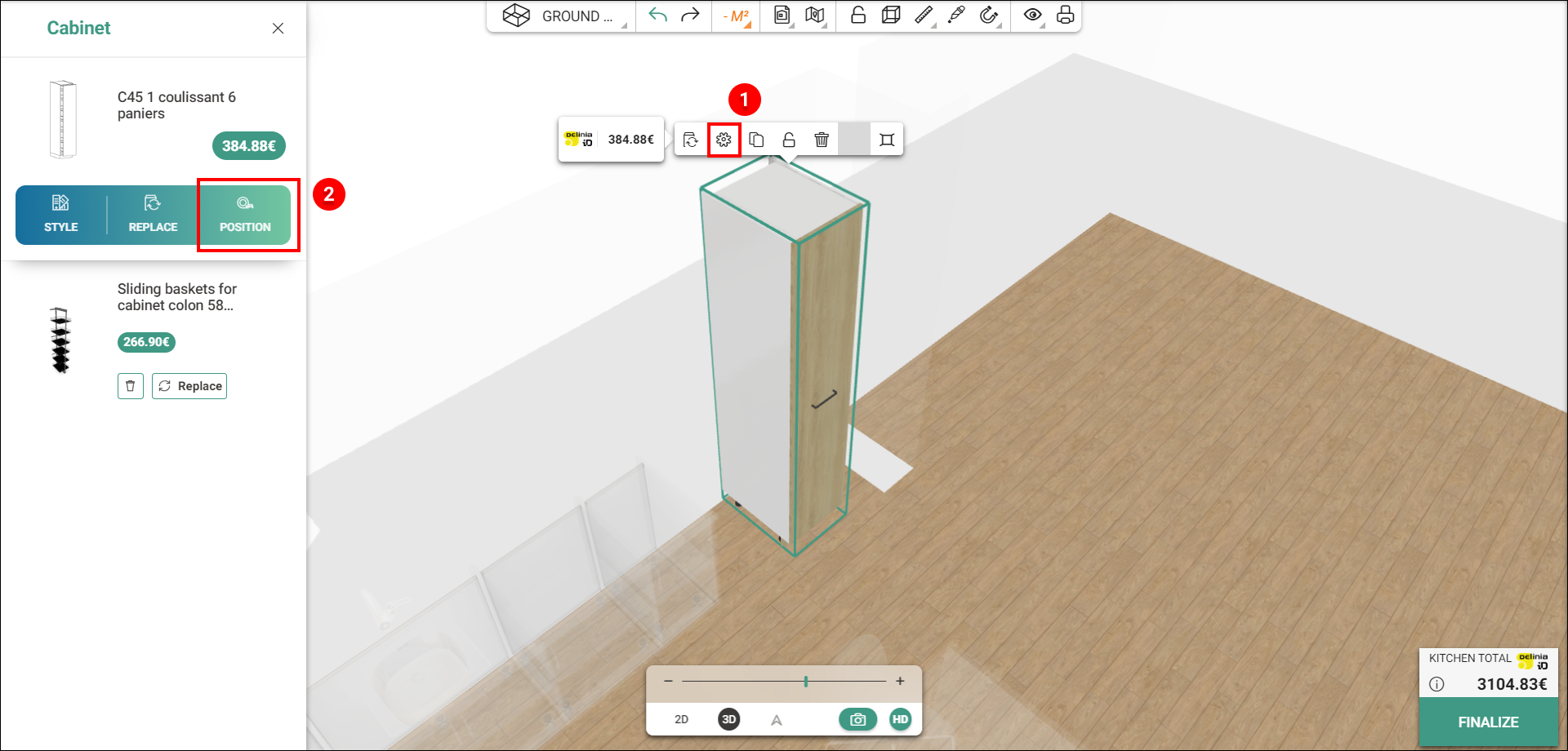

- 1. Click on the "properties" icon in the set's contextual menu. The settings panel appears on the left side of your screen.

- 2. Then expand the "position" tab of your set .

The position menu appears. You can configure:

• The elevation of your set: this allows you to modify the height of the set relative to the floor. This option is especially useful for wall cabinets.
• The positions relative to the walls: they inform you about the positioning of your set relative to the walls (front, back, right or left). These values can be modified numerically.
• The positions relative to objects: they inform you about the positioning of your set relative to the nearest objects (front, back, right or left). These values can be modified numerically.

Solution 4: Movement Using the KEYBOARD

In both 2D and 3D, it is also possible to move a set using your keyboard: press the "arrow" keys on your keyboard repeatedly.

Tip: Keep the magnets activated.

We have 3 types of magnetism in Kazaplan:

• object collisions
• object alignment
• wall magnetism

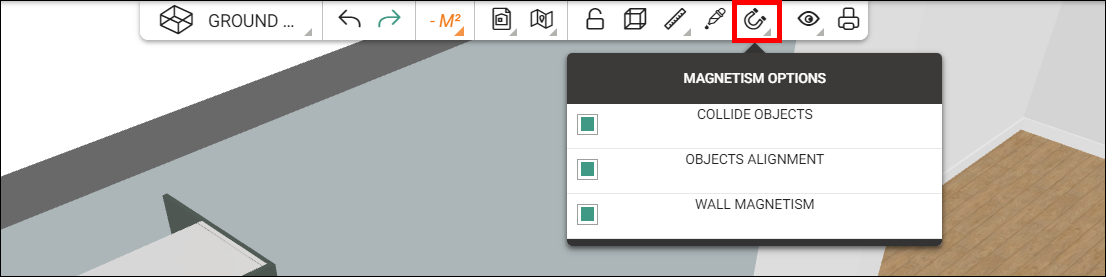

They are activated by default, and can be activated from the toolbar:

Tip: To temporarily activate or deactivate the magnets, press the ALT key (FN key on a Mac).

> more information on magnetism settings

When placing a set against a wall, it automatically flips thanks to the magnets.
