WORKTOP - create an overhang

For various reasons, it can be interesting to create a countertop overhang:

• create a dining area
• place a non-integrated appliance
• ...

Step-by-step to create a countertop overhang:

Step 1: Select your furniture layout

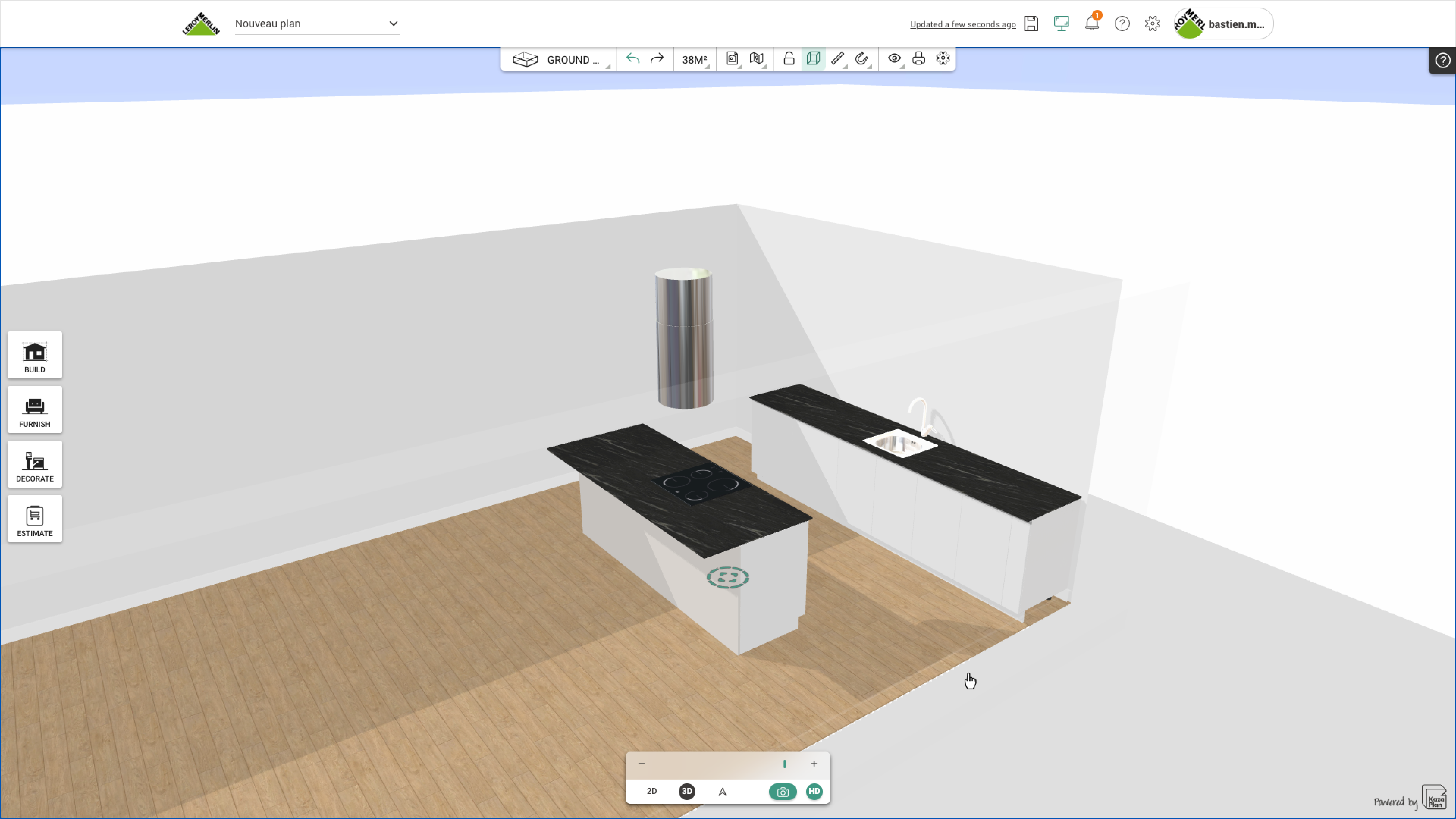

In 2D, 3D, or frontal view: click on your furniture layout.

A blue highlight appears: your furniture layout is selected.

Its context menu appears with its price, comfort level, and various editing options:

• access layout properties
• delete the layout
• access frontal view

Step 2: Open the "countertop" menu of the layout

- 1. Click on the "Properties" icon to open the layout settings panel.

- 2. Click on "Countertop" to open the corresponding menu

[current settings panel]

[settings panel from January 2024]

The countertop settings panel appears.

Step 3: Create a countertop overhang

- Solution 1: Create a SMALL OVERHANG (depth <30cm)

Two solutions to create an overhang with a depth less than 30cm:

• Enter the desired values in the menu
• Or stretch your countertop in 3D view, using the stretch handles.

- Solution 2: Create a LARGE OVERHANG (depth>30cm)

For a larger depth stretch, you need to add a countertop from the catalog

- 1. Once selected in the countertop menu, place your countertop in the layout.

From the menu:

- ARRANGE

-- KITCHEN

--- PIECE BY PIECE

---- COUNTERTOP

- 2. You can adjust its dimension, by clicking on the "property" icon in its context menu:

• dimensions can be set numerically from the "dimensions" menu,
• or in 3D using the stretch handles that have appeared.

- 3. You can adjust its position:

• directly in the layout by moving it with your mouse
• by editing its position dimensions in 2D or 3D
• by clicking on the "property" icon in its context menu: dimensions can be set numerically from the "position

- 4. You can adjust its elevation:

• directly in the layout using the specific handle
• by clicking on the "property" icon in its context menu: elevation can be set numerically from the "position

- 5. Remember to add legs to support your countertop.

(Feature under development: for now, we recommend using parametric shapes from the ARRANGE menu. The ALT key can help you position them; it temporarily disables object collision magnetism)
