A kitchen cabinet set is a collection of similar furniture pieces merged together, including base cabinets, wall cabinets, columns, and more.
After modeling your first cabinet set, it's time to customize it. Here is a list of possible actions on kitchen cabinet sets.
Selecting a Kitchen Cabinet Set

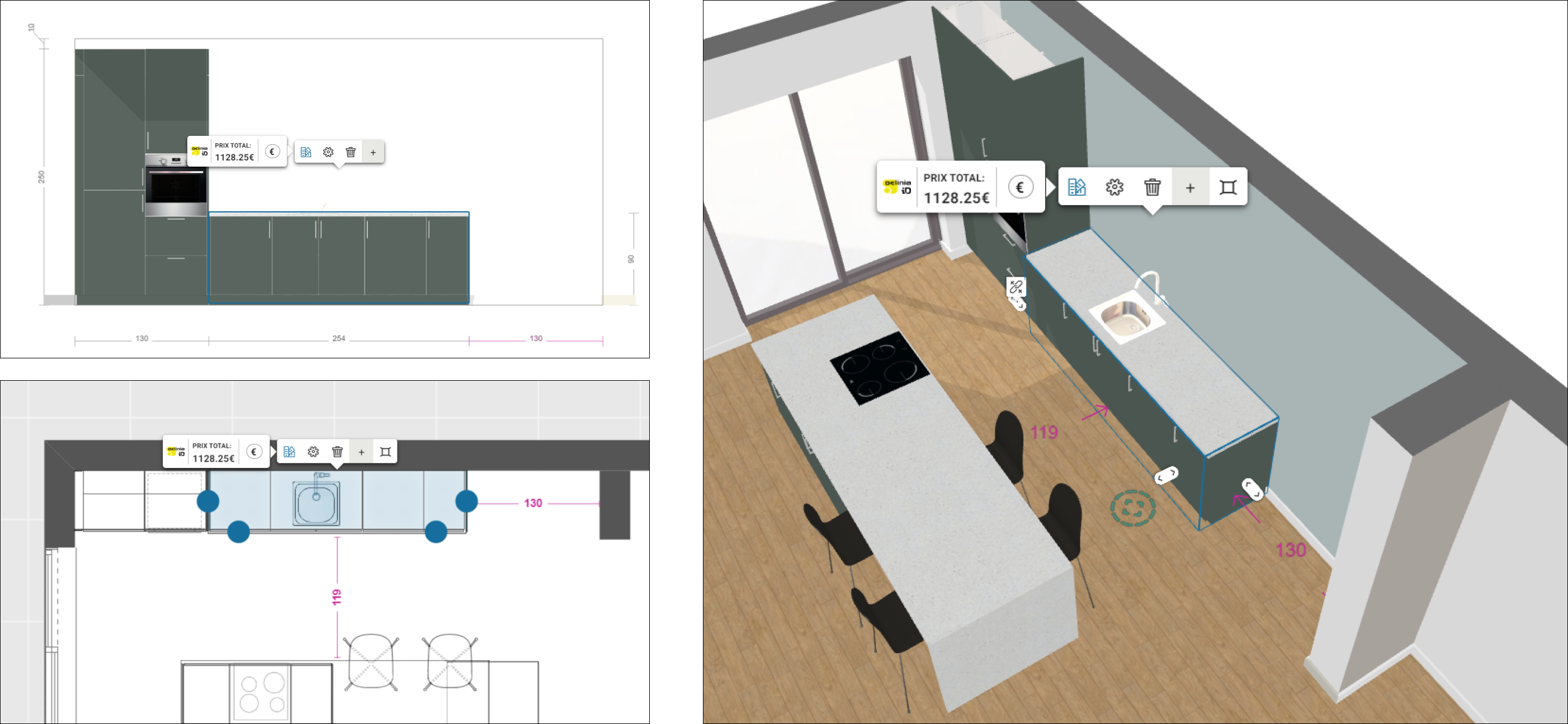

- SELECT a kitchen cabinet set
In 2D, 3D, or front view: click on your cabinet set.
A blue highlight will appear: your cabinet set is selected.

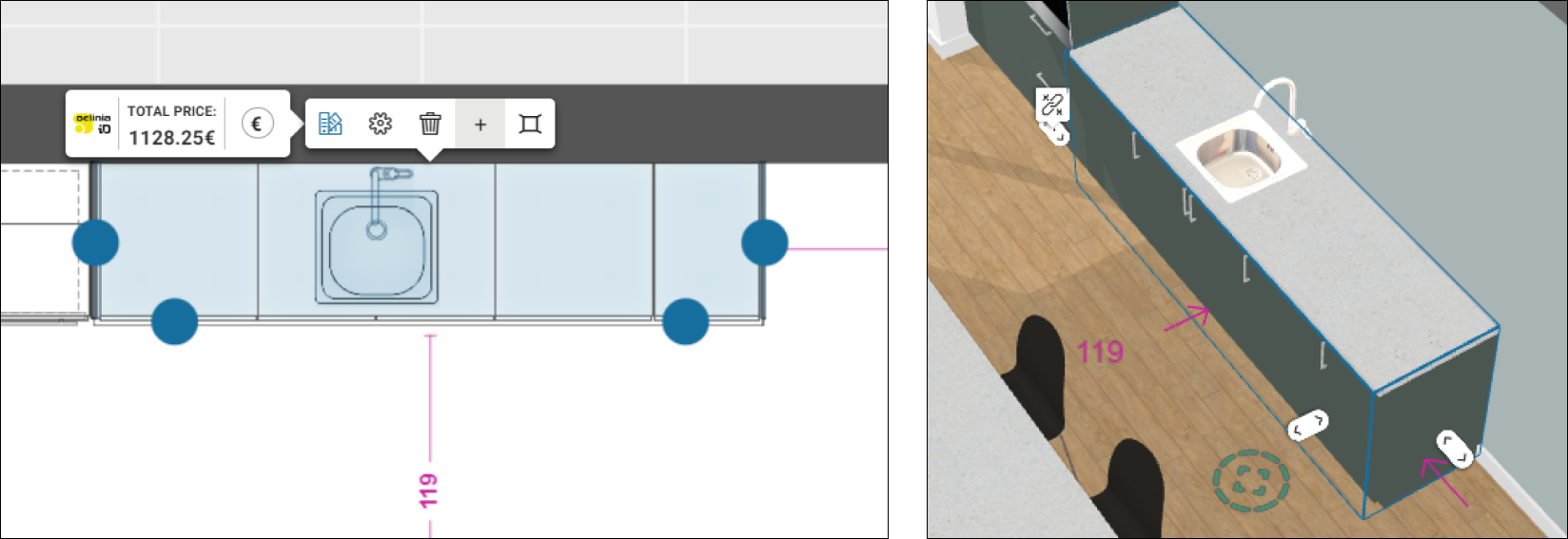

Its stretch handles are displayed, except in front view. They are represented by:
- blue circles in 2D
- and arrows in 3D.
Its position dimensions are displayed and editable.
Its rotation circle appears if the cabinet set is not positioned against a wall.

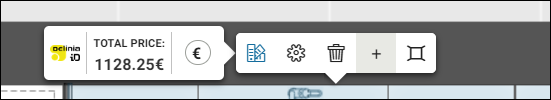

Its context menu appears with its price, comfort level, and various editing options:
- access cabinet set properties
- delete the cabinet set
- access front view
- more options: duplicate and lock the cabinet set
Note: A second click on one of the cabinet pieces selects that particular piece. It will then be colored green.
- DESELECT a kitchen cabinet set
In 2D, 3D, or front view: a click outside the cabinet set deselects it.
Note: An alternative to the keyboard is offered: the "esc" key can also deselect a cabinet set.
Possible Actions in the Plan
- MOVE a kitchen cabinet set
In both 2D and 3D views, click, drag, and drop the selected cabinet set to move it.
- ROTATE a kitchen cabinet set
In both 2D and 3D views, you can rotate the cabinet set using the rotation circle.
- STRETCH a kitchen cabinet set
In both 2D and 3D views, a cabinet set can be stretched at any time to reduce or enlarge its length or modify its shape (L-shaped kitchen, U-shaped kitchen, etc.).
Possible Actions from the Context Menu
In 2D, 3D, and front view, the context menu of a kitchen cabinet set indicates the price and comfort level of the entire set of furniture and allows access to its settings panel.
- ACCESS the properties of the cabinet set

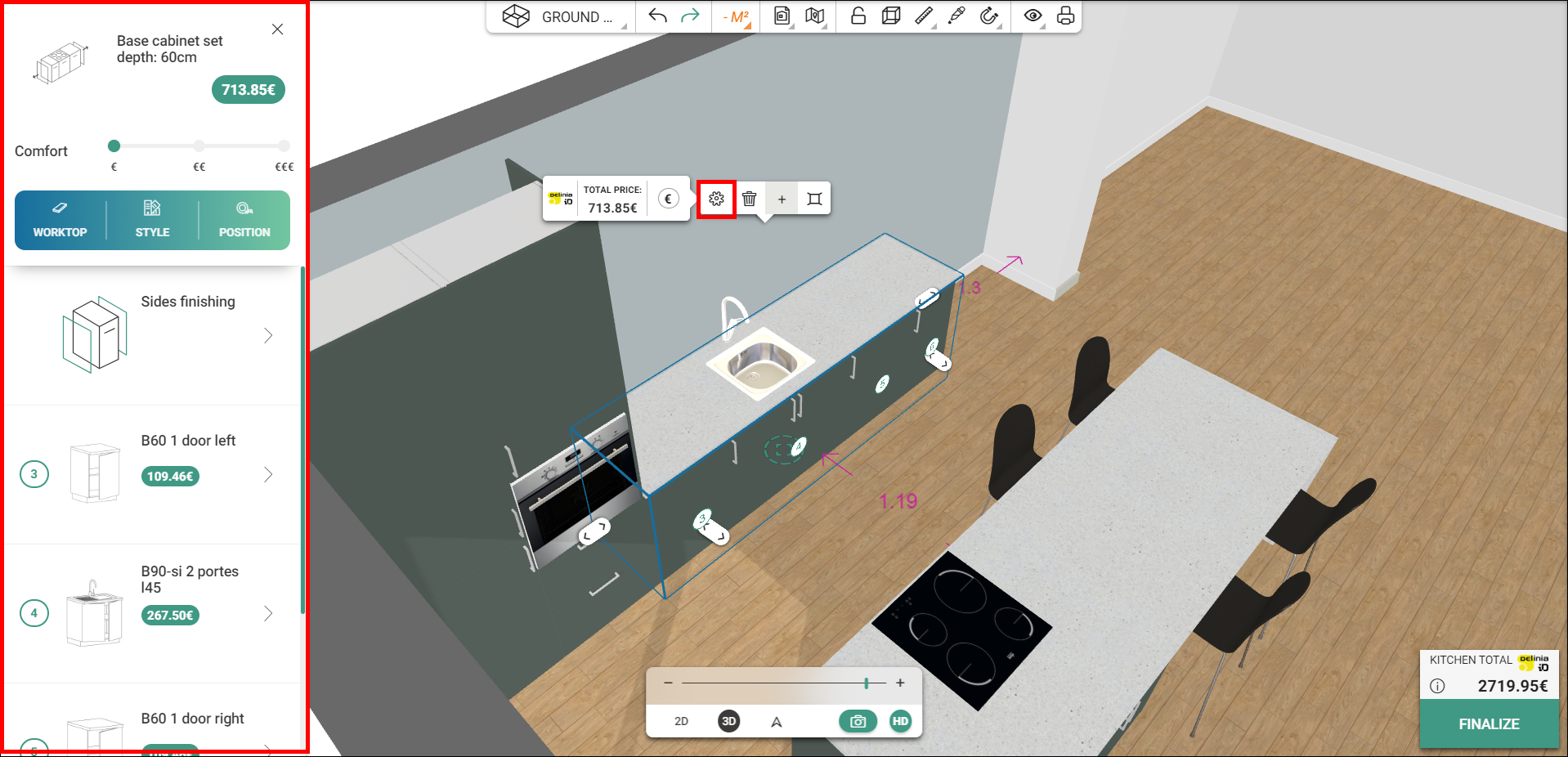

Clicking on the "properties" icon in the context menu of your cabinet set opens the set's settings panel on the left.
Thanks to our new settings panel, you can easily customize your cabinet set and the individual furniture pieces that compose it.

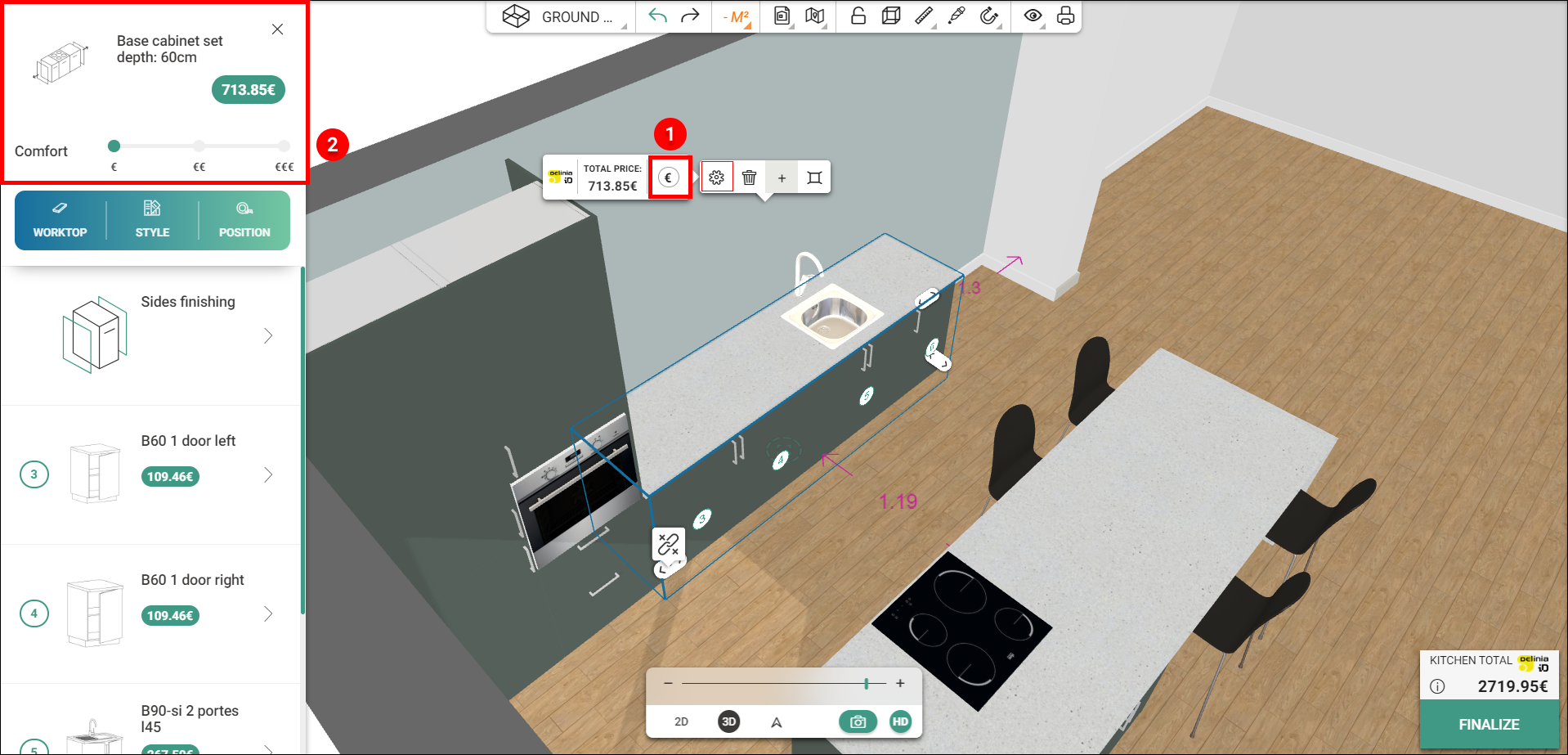

-- Adjust the COMFORT LEVEL of the cabinet set
You can choose one of the 3 comfort levels for your cabinet set:
- LEVEL € -> an easy and functional kitchen
- LEVEL €€ -> a functional kitchen with some ergonomic tips
- LEVEL €€€ -> an optimized and practical kitchen with numerous drawers
-- Create OVERHANGS for the COUNTERTOP

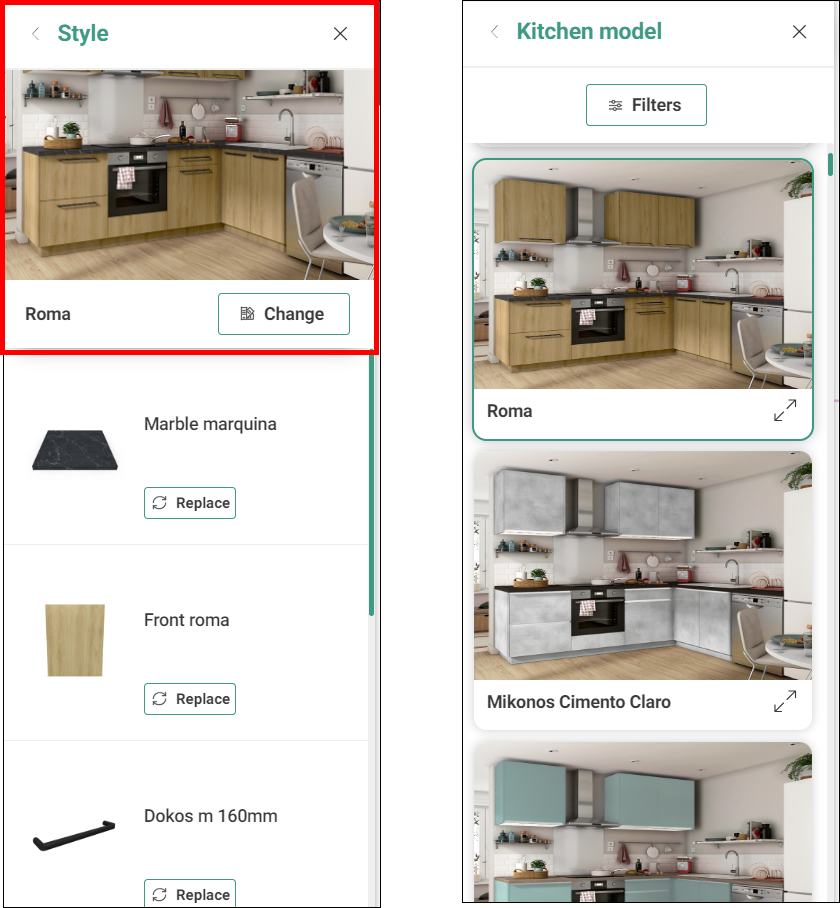

-- Modify the STYLE of the cabinet set

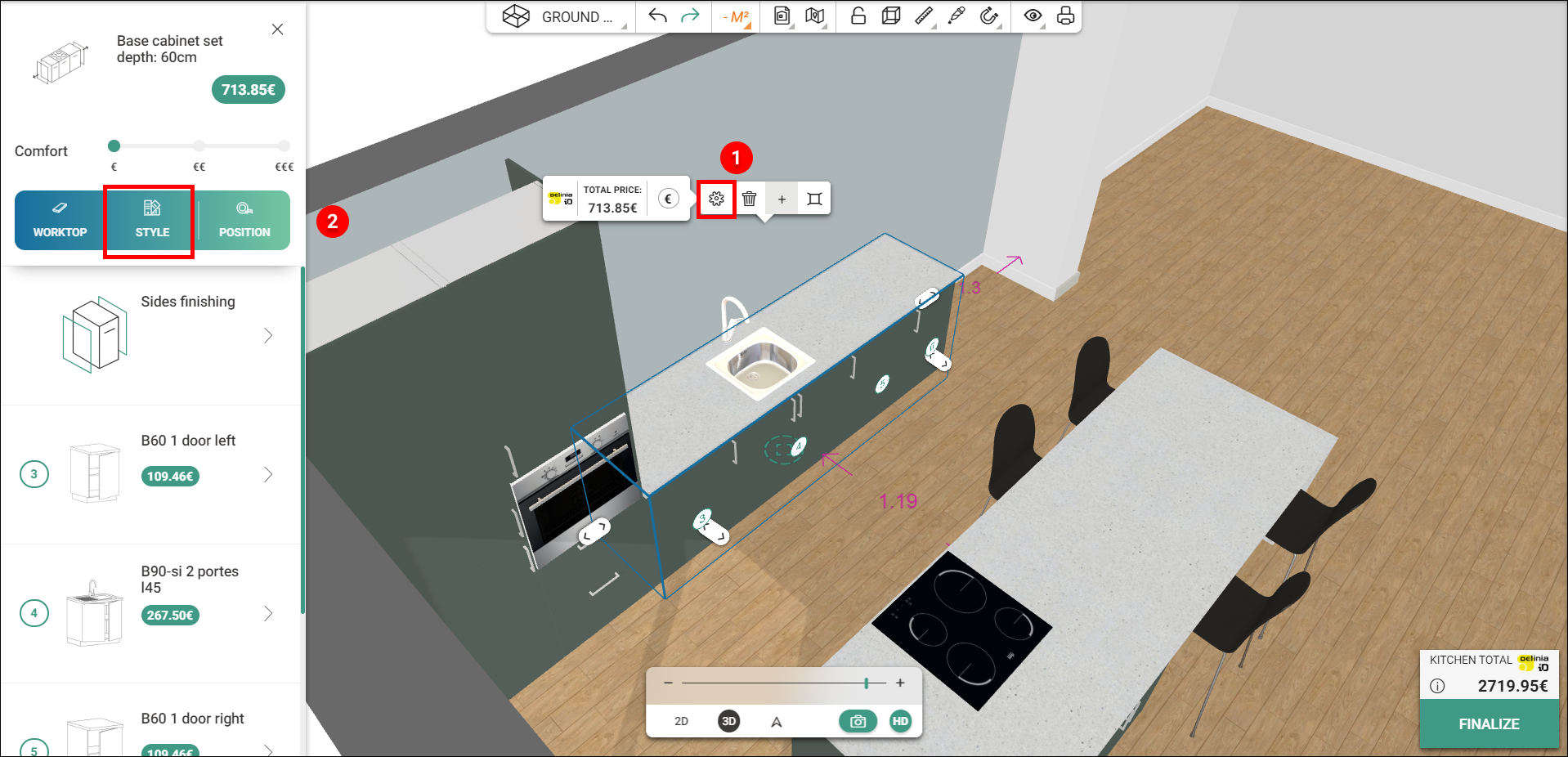

- 1. Click on the "Properties" icon in the context menu of your cabinet set to open the settings panel.
- 2. Click on "Style" to open the corresponding menu.
The style settings panel opens.
You have two options:

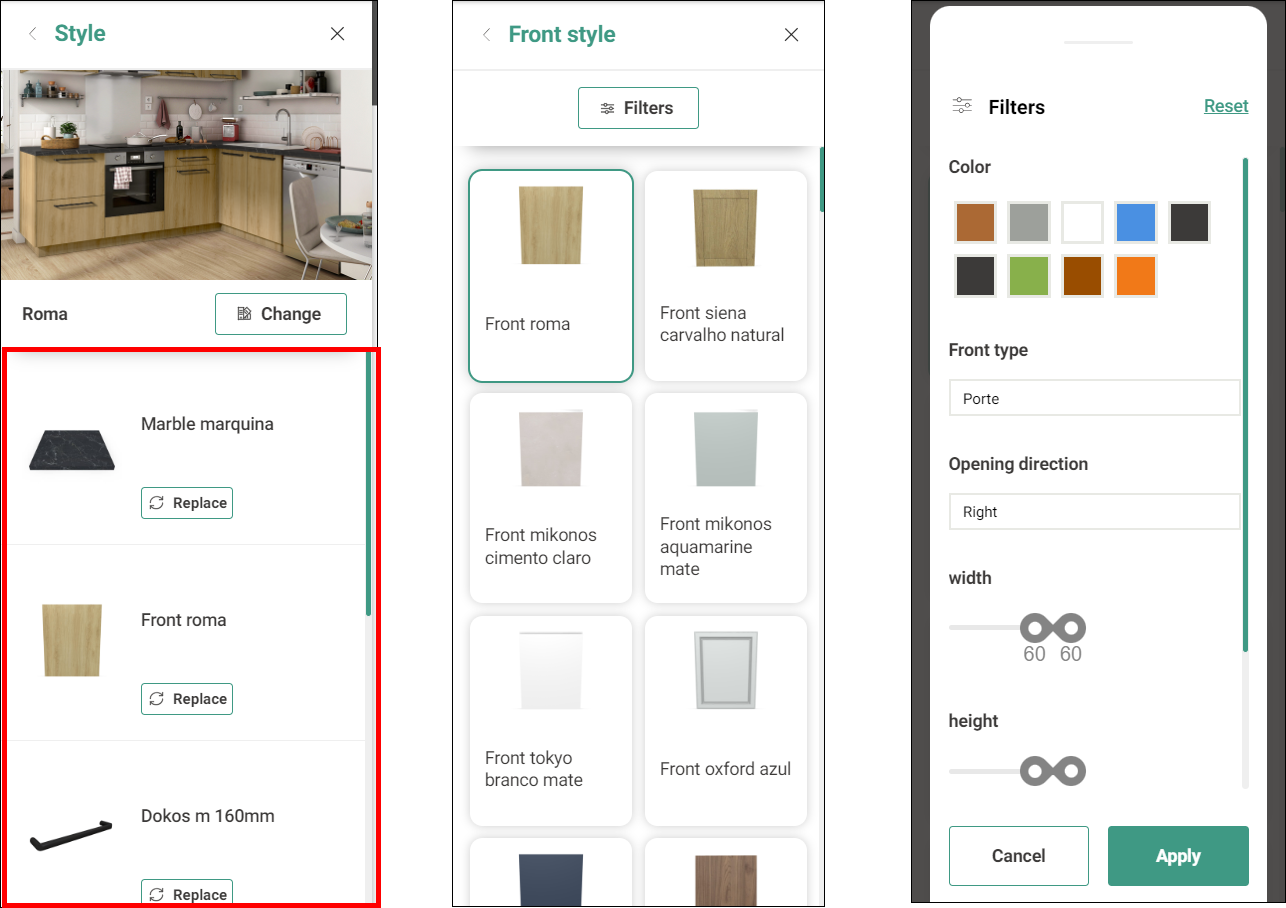

- Option 1: You can choose a style: by clicking on "change" at the top of the menu. You will then see a page of selection where you can change the ambiance (pre-selected combination of fronts, countertop, handles...).
- Option 2: You can create your own style by choosing your own cabinets, plinths, fronts, handles…
For both options: filters are again offered to refine your search. Select the ones you are interested in, then click on "apply filters".
These modifications can be applied to the cabinet set, to all furniture of the same type (all base cabinets, all columns...) or to the entire kitchen.
Upon selecting an element in the menu, it applies according to your choices.

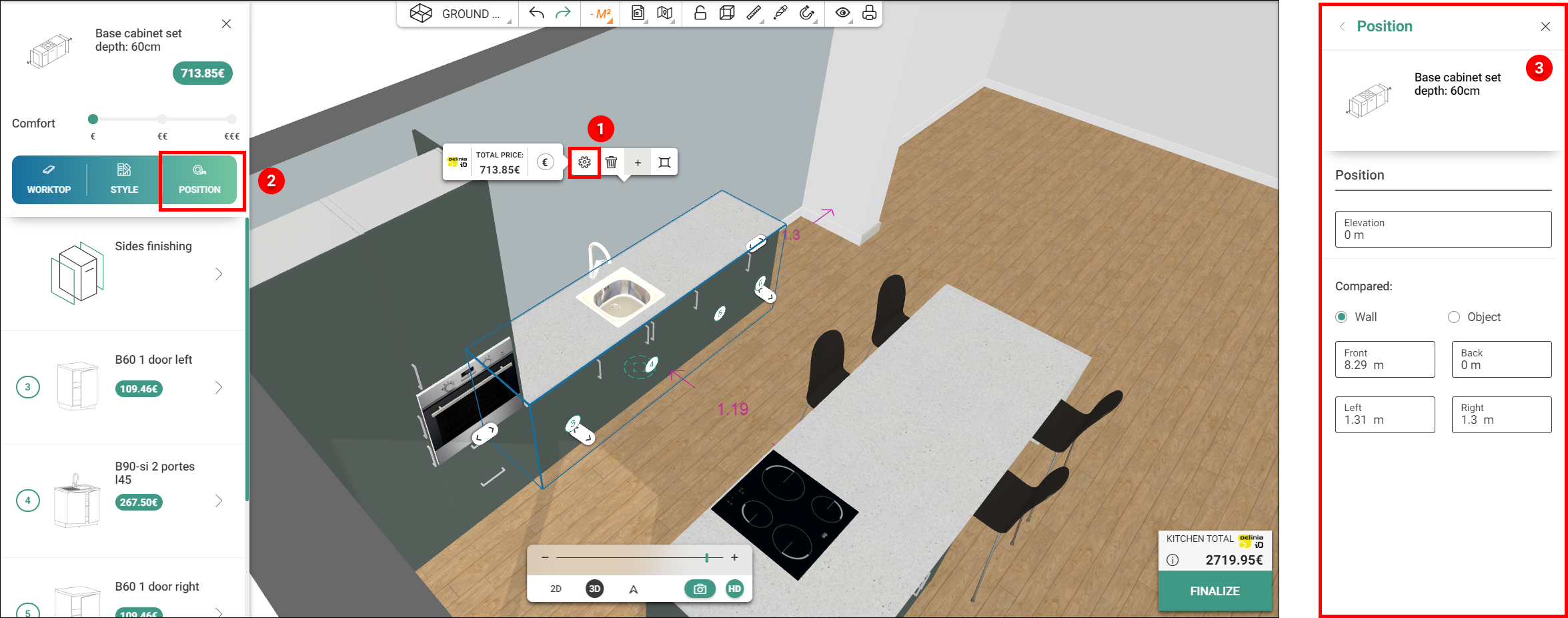

-- POSITION the cabinet set

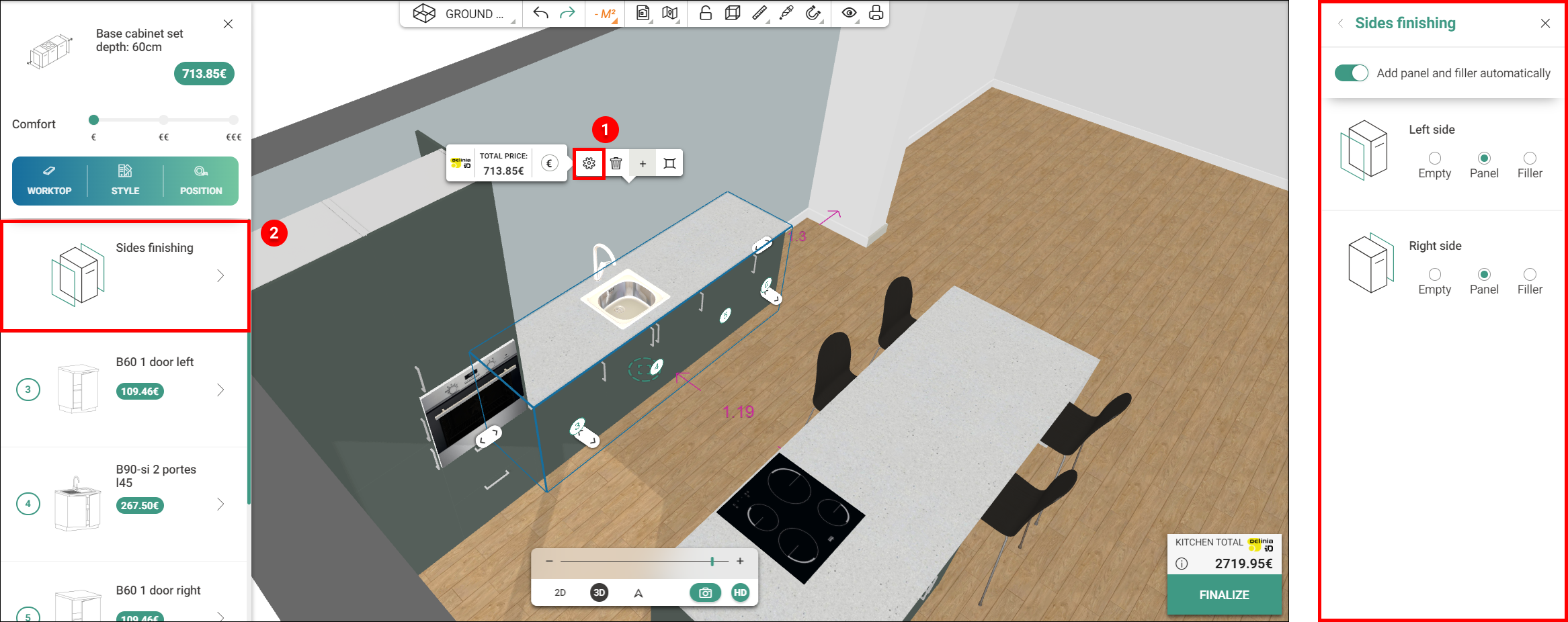

-- Customize the FINISHES OF THE SIDES of the cabinet set
-- Customize each FURNITURE PIECE of the cabinet set
-- Customize each CABINET SET
- lock one of the cabinets
- delete one of the cabinets
- replace one cabinet with another
- customize a cabinet
- REMOVE a cabinet set

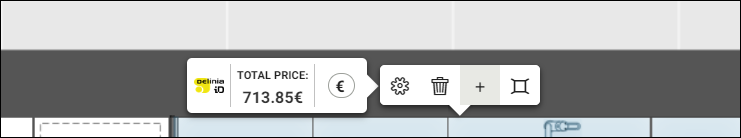

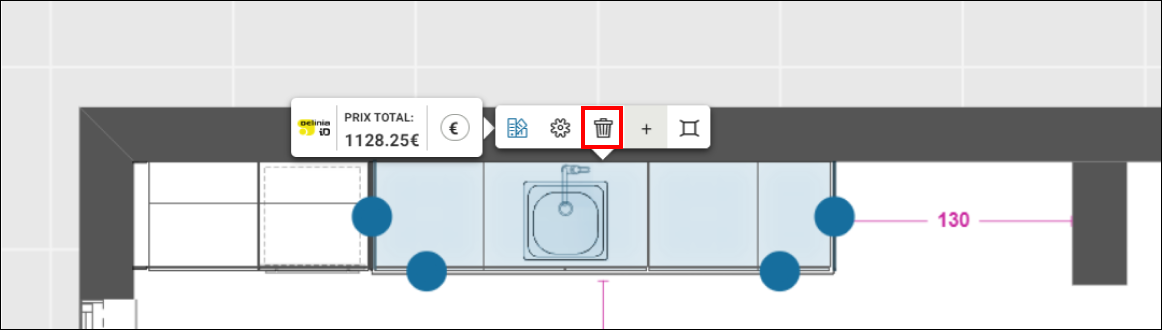

Clicking on the "remove" icon removes the cabinet set.
Tip: It's also possible to use the "DELETE" key on your keyboard.
- Access the FRONTAL VIEW

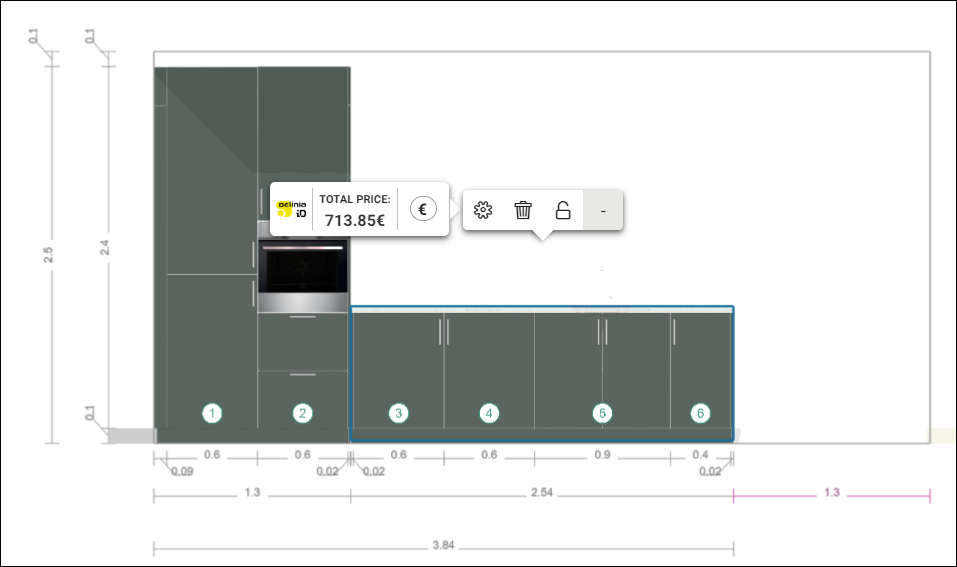

Clicking on the "front view" icon displays the frontal view of the wall on which the cabinet set is magnetized.
Tip: To exit "front view" mode, click on the "2D" or "3D" view icons in the navigation bar.
- More options with "SHOW BUTTONS"

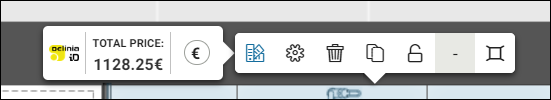

Clicking on the "show buttons" icon expands the contextual menu with more features: you can:
-- DUPLICATE the cabinet set

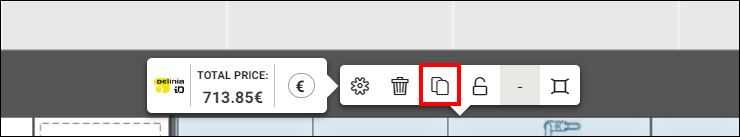

Clicking on the "duplicate" icon copies the entire cabinet set next to the first one.
-- LOCK the cabinet set

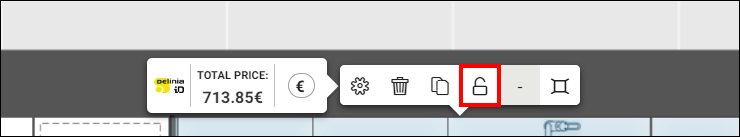

Clicking on the "lock" icon makes the entire cabinet set non-movable.
