Imprimir a sua planta em 2D

Plans of cross-sections and facades are not available yet.

Before printing, choose what you would like to appear on your printed plan. To do this, click the Manage 2D item display icon.

Click the Print button:

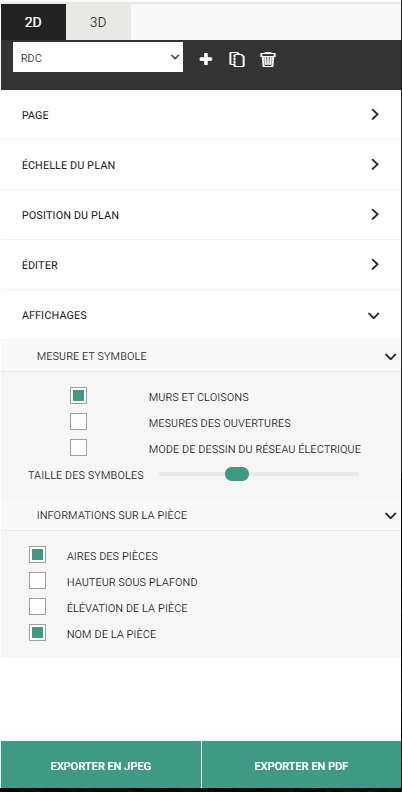

In "Displays", select the items you want to appear and deselect the items you do not want to appear in the printed plan (name, area, ceiling height, elevation, wall and partition measurements, grid, compass).

Note: This feature allows you to save your plan on your hard drive in order to print the image generated.

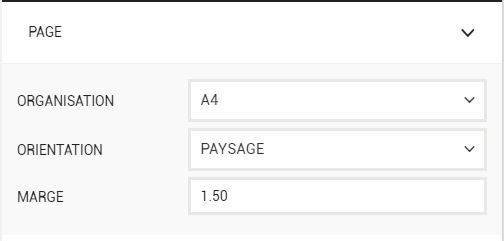

• The Page tab

Here, choose: the paper size (A3 or A4), the orientation (portrait or landscape) and the margin size (in cm).

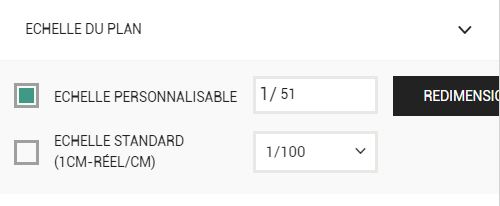

• The Plan Scale tab

Choose a standard scale (1/20, 1/50, 1/100 or 1/200) or customise it.

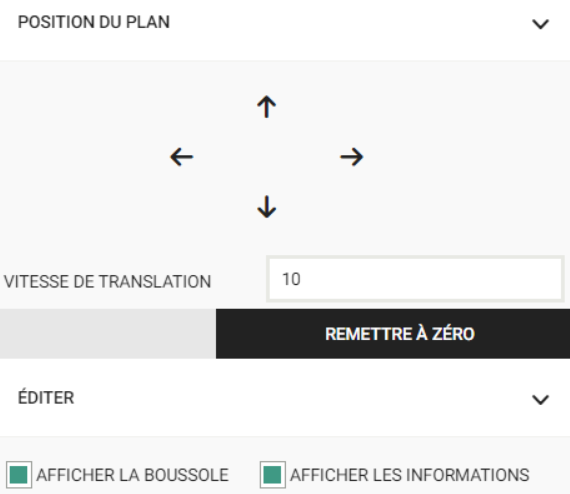

• The Plan Position tab

Once you have adjusted the page format and scale, you can adjust the position of your plan on the page by either using the icons to rotate and move the plan or by entering these values using your keyboard.

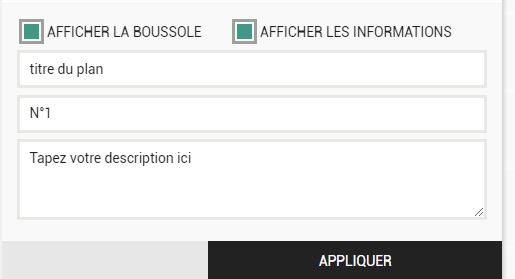

• The Edit tab

This is the table in the bottom right of your overview, which lists various information about your plan: Title, number and description. The compass and scale also appear here. You can choose to hide the text box by unticking 'Display information'.

Once all these adjustments have been made, you can choose to export your plan in either JPEG format or PNG format. An image will be generated and downloaded to your hard drive.
